Product Details:
|
| Material: | Stainless Steel AISI 304 | Caps Dia: | 7/8" / 22mm |
|---|---|---|---|
| Suit For: | 12GA Pins | Application: | Caps For Board |
| Insert Washer Thickness: | 0.4mm | Dome Caps Heigh: | 7mm |
| Highlight: | heat insulating washers,self locking dome caps |
||
Details Of The Self Locking Dome Caps:
Material: Stainless Steel AISI 304 With Stainless Steel Insert
Specification of self locking dome caps
| B | A | C |
| 14 Ga (2mm) | 7/8" (22mm) | 9/32" (7.2mm) |
| 12 Ga (2.7mm) | 7/8" (22mm) | 9/32" (7.2mm) |
| 10 Ga | 7/8" (22mm) | 9/32" (7.2mm) |
| 3mm | 7/8" (22mm) | 9/32" (7.2mm) |

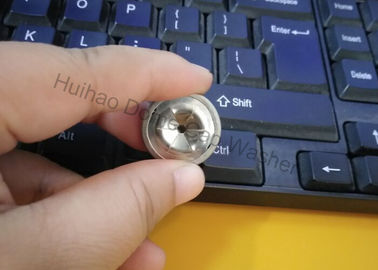

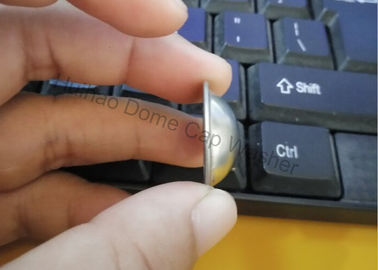

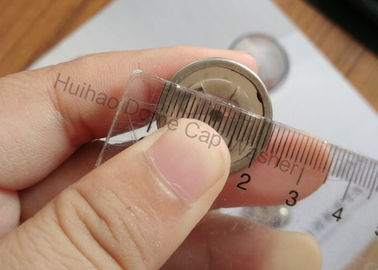

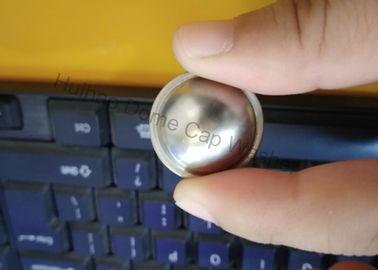

Detailed Pictures Of The Self Locking Dome Caps:

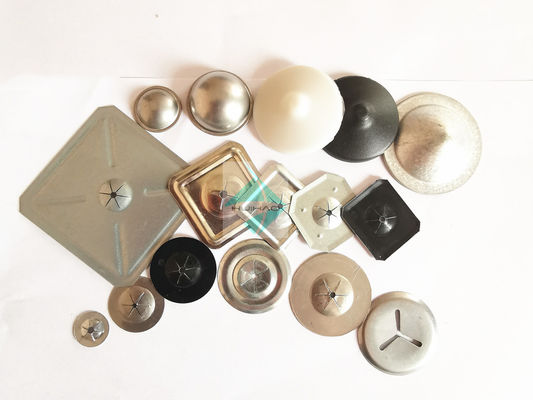

related products as follows:
Stainless Steel Insulation Clips With Plastic Coating
Insulation clips are fixed on the position where there is significant wind-suction-force or if the height is more than 20m or
if the finishing coat is tile etc.
| Material | Stainless steel as standard |
| Colors | White, grey or black |
| d1 | 40mm |
| d2 | 2mm, 2,7mm, 3mm,4mm, 5mm, 6mm |
Characteristics: Quick Mounting
Stallable to all positions
Fire-resistant
Other dimensions are available upon special request.
