Product Details:
|
| Material: | Stainless Steel Wire, Low Carbon, Galvanized Steel | Type: | Plate Type Or Weave Type Or Frame Type |
|---|---|---|---|
| Dimensions: | 585 × 170mm, 635 × 1253mm, 913 × 650mm, 720 × 1220mm Etc. | Weight: | 12-17kgs |
| Highlight: | crimped wire mesh,self cleaning screen |
||
Shale Shaker Screen, Self Cleaning Screen Mesh is a kind of common oil vibrating screen mesh,which is mainly
composed of steel framework and two or three layers stainless steel net cloth.
Shale Shaker Screen ,Self Cleaning Screen Mesh is welded high strength square steel tube or flat steel,what's more,
many fortified support bars are filed.
Mesh cloth can be combined with frame through the metal plate, or glued directly on the frame.
Oil vibrating sieves mesh is attached with special rubber plug which could repair damaged screen
surface so as to save time.
Our company can manufacture various steel frame screen according to the requirements of
different customers.
>>> Introduction Of The Oil Vibrating Screens,Self Cleaning Screen Mesh

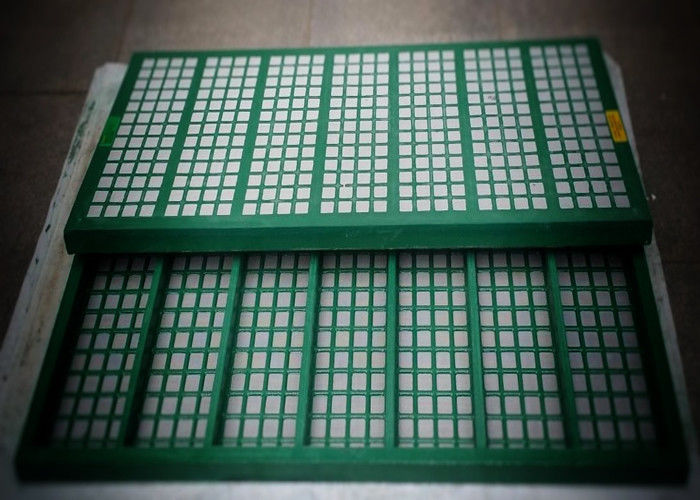

1. Plate Type Shale Shaker Screen,Self Cleaning Screen Mesh
Plate type shle shaker screen is one of the most commonly used oil vibrating screens. It can be widely used in drilling operation under different conditions. The products are usually consist of two or three layers stainless steel wire cloth glue on the hole in the metal plate. At the same time, the screen with special rubber plug to repair net surface damage, can effectively save time, reduce the production cost.
| Range Of Mesh | Dimension | Brand Of Shaker | Weight(kg) |
| 16-325 | 903*1155mm | SWACO BEW-3 | 5.6 |
| 16-325 | 1212*1141mm | SWACO ALS-11 | 9 |
| 16-325 | 697*1050mm | FLC500 Series | 6 |
| 16-325 | 697*1053mm | FLC2000 | 4.2 |
| 16-325 | 697*846mm | FLC313M | 4 |
| 16-325 | 915*1150mm | BRANDT LCM-20 | 8.6 |
| 16-325 | 720*1220mm | KEMTRON KTL48 Series | 5.6 |
| 16-250 | 700*1165mm | S250 | 4.6 |
| 16-250 | 1186*1280mm | ZX60 | 9.2 |
Applications of Plate type shale shaker screen,Self Cleaning Screen Mesh

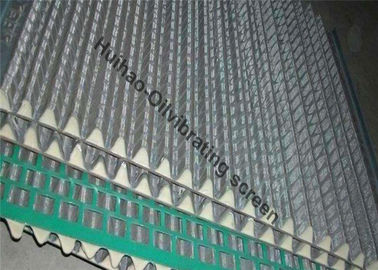

2. Wave Type Shale Shaker Screen,Self Cleaning Screen Mesh
Wave type shale shaker screen like unique wavy, installation can be hook edge or steel frame. Compared with plate type oil vibrating screen, wave type oil vibrating screen's effective area is big during high drilling fluid processing.
| Range Of Mesh | Dimension | Brand Of Shaker | Weight(kg) |
| 80-210 | 635*1253mm | BRANDT BL-50 | 17.5 |
| 80-210 | 697*1050mm | FLC500 Series | 7.5 |
| 80-210 | 697*1053mm | FLC2000 | 5.8 |
| 80-210 | 915*1150mm | BRANDT LCM-20 | 10 |
Application in Linear Motion Shale Shaker
Application in Balanced Elliptical Shale Shaker
3. Frame Type Shale Shaker Screen,Self Cleaning Screen Mesh
Frame type Shale Shaker Screen is a kind of commonly used oil vibrating sieving screens. It is mainly consist of the steel framework and 2 to 3 layers of stainless steel wire mesh cloth. The framework is welded together by a high strength of square steel tube or flat steel, and with extra strengthening supporting tendons. Mesh cloth can be combined with the metal plate and frame, or directly bonded on the frame. Each screen were repaired with special rubber plug to net surface damage.
| Range Of Mesh | Dimension | Brand Of Shaker | Weight(kg) |
| 16-325 | 903*1155mm | SWACO NON900SE | 12 |
| 16-325 | 623*1253mm | BRANDT BL-50 | 13.5 |
| 16-325 | 913*650mm | BRANDT VSM-300 | 12.5 |
| 16-325 | 720*1220mm | KEMTR ON KTL48 Series | 17 |
| 16-325 | 712*1181mm | SF300 | 17 |
Specifications:
>>> Package & Delivery of the Shale Shaker Screen,Self Cleaning Screen Mesh
1.In bulk.
2.Stardard exported wooden cases.
3.As your request.
