Product Details:
|
| Material: | Stainless Steel, Galvanized Steel | Head: | 7/8" As Standard |
|---|---|---|---|
| Spindle Dia: | 12ga Or 14ga As Standard | Length: | 2-1/2" Or 4-1/2" As Standard |
| Head Thickness: | 1mm | Application: | Secure Lacing-anchor With Self Locking Washer. |
| Highlight: | rockwool insulation pins,insulation anchors |
||
The Lacing anchor, an insulation fastener, is a fabricated metal anchor consisting of a pin and tabbed, or hooked, washer.
Stainless Steel is a popular material while some Lacing Anchors are made in Mild Steel. Stamped "no ab" to denote 'no
asbestos', the tabbed head is 7/8" in diameter. The nail can be 12 gauge or 14 gauge in pin diameter. Typical application is
for the fabrication of lacing blankets or removable covers with the anchor assisting in fabricating the blanket plus providing
a "seam edge" for lacing two sides of the finished insulation blanket together.
>>>Specification Of The Stainless Steel Insulation Anchor Pins
Materials: stainless steel or galvanized steel
Pin Diameter: Standard size is 12GA (2.7mm), 14GA(2.0mm), Other sizes are available by special order.
Pin Length: 2-1/2" and 4-1/2" are standard. Other lengths available by special order.
Washers: Self-locking washers are available in a variety of sizes, shapes, and materials.
Domed Caps can also be used to cover the tip of the nail.
| D | C | L |
| 14 ga (.080) | 7/8" | 2-1/2" |
| 14 ga (.080) | 7/8" | 4-1/2" |
| 12 ga (.106) | 7/8" | 2-1/2" |
| 12 ga (.106) | 7/8" | 4-1/2" |

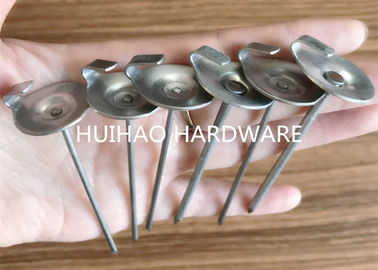

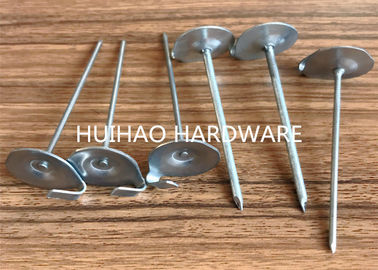

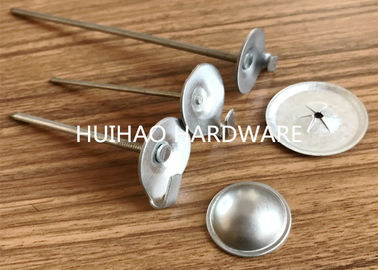

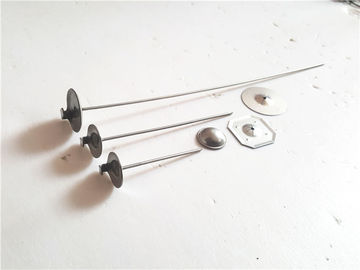

>>>Detailed Image Of The Stainless Steel Insulation Anchor Pins
1) US standard
The head diameter is 1 inch,
the pin diameter is 10Ga,
the length we have 1/2inch, 3/4 inch, 7/8 inch, 1 inch, 1-1/8inch, 1-1/2 inch 2 inch
Products will be packed by bucket or packed per customer’s requirement etc
We usually pack the US standard weld pins by bucket we will pack different quantity for different size
Pallet size: 1100*1100mm
36 bucket on a pallet
2) EU standard
The head diameter is 30mm,
the pin diameter is 2.7mm,
there are many different length for EU market,
the length we manufactured-22mm, 27mm, 28mm, 32mm 42mm, 48mm 58mm 60mm 100mm
Some customer will need kraft paper under head,
some customer will need a plastic sleeve on pin,
some customer will need both of them,
we can manufacture per customer’s requirement
3) Australia standard
People in Australia will need the US standard or EU standard weld pins, someone will need the 14Ga pin.
The mostly of length in Australia is 25mm, 50mm, 75mm, 100mm.
Lacing anchors marked NO AB to notify the blanket is asbestos free
Available diameters : 2 mm (14 ga) and 2,7 mm (12 ga)
Pins length : 63 mm (2 1/2") and 114 mm (4 1/2")
>>>How to install Metal Insulation Fastener Anchors
1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5:install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
>>> Related Products
Self-locking washers and dome caps can be used to cover the top of the metal lacing anchors.
Round Self Locking Washers
Material: stainless steel or galvanized steel or aluminum
Size: 1" or 1-3/16" or 1-1/2" or 2"
Thickness: 28ga (0.4mm)
Self-locking washers are designed to be used with weld pins, insulation-hangers, lacing anchors, etc.
| Diameter: | 1" | 1-3/16″ | 1-1/2” |
| Thickness: | 0.015" | 0.015" | 0.015" |
| Plating: | Galvanized | Galvanized | Galvanized |
| Material: | Mild Steel /SS 304 | Mild Steel /SS 304 | Mild Steel /SS 304 |
| Edge: | Beveled or Flat | Beveled or Flat | Beveled or Fla |
Square Self-Locking Washers
Material: stainless steel or galvanized steel or aluminum
Thickness: 28ga (0.4mm)
Self-locking washers are designed to be used with weld pins, insulation-hangers, lacing anchors, etc.
| Pin Diameter | 2-1/2" | 1-1/2" | 1-1/4" | 1-1/2" |
| 14 Ga (2mm) | square | square | square | round |
| 12 Ga | square | square | square | round |
| 10 Ga | square | square | square | round |
| 3mm | square | square | square | round |
Dome Cap Washers
Dome washers are designed to be used where appearance and safety are factors when installing insulation, or fabricating
blankets or pads. The washers are used to cover the nail point on weld pins, hangers, lacing anchors
& quilt pins.
| Material | galvanized, aluminum and stainless steel |
| Finish: | brushed aluminum, white plastic coating, black plastic coating etc |
| A: | 20mm,22mm,25mm,30mm,38mm |
| B: | 10 Ga Or 12 Ga Or 14 Ga |
| C: |
9/32" (7.2mm) |
