Product Details:
|
| Material: | Aluminum | Thickness: | 1mm-3mm |
|---|---|---|---|
| Width: | To Be Order | Surface Treatment: | 1.PVC Coated 2.Powder Coated 3.Anodized 4.Paint 5.Fluorocarbon Spraying 6.Polishing |
| Frame Design: | Support | Pattern Design: | Support |
| Highlight: | laser cut metal screens,perforated metal sheet |
||
1. specification of architectural expanded metal mesh
|
SWDxLWD |
strand width |
thickness |
weight aluminum |
|
mm |
mm |
mm |
kgs/m2 |
|
31x110 |
13 |
1.5 |
3.4 |
|
total thickness |
open area |
dimension hmax |
weight steel |
|
mm |
% |
mm |
kgs/m2 |
|
15-17 |
20 |
2500 |
9.9 |
2. technical data of architectural expanded metal mesh
Length mm ±1.5
Width mm ±1.5
Diagonal deviation mm ≤2000 ±2.5
Folding height deviation mm ± 0.45
Aluminum mesh angle (?) ≤ 2
Aluminum mesh flatness mm ≤2000 ±3.0
Coating dry film thickness
Mm Two coat: average film thickness 30
small partial film thickness: 25
three layers: average film thickness 40
small partial film thickness: 30
Coating color uniformity
The uniformity of color shall be in accordance with the color number specified by the swatches approved by both the supplier and the buyer and the
approved color difference range.
3.architectural Expanded Metal Mesh Product Description
|
Product name |
|
|
Material |
Stainless steel,thin low carbon steel,brass plate, Aluminum plate,titanium plate,nickel plate,Al-Mg alloy plate. |
|
Thickness |
0.3-10.0mm |
|
Hole shape |
Diamond,square hole,scale hole,gothic etc. |
|
Mesh size |
1220*2440mm,1200*2400mm,1000*2000mm or customized |
|
Surface treatment |
1.PVC coated 2.Powder coated 3.Anodized 4.Paint 5.Fluorocarbon spraying 6.Polishing |
|
Application |
1.Fence,panels & grids; 2.Walkways; 3.Protections &barres; 4.Industrials & fire stairs; 5.Metallic walls; 6.Metallic ceilings; 7.Grating & platforms; 8.Metallic furniture; 9.Balustrades; 10.Containers & fixtures; 11.Facade screening; 12.Concrete stopers |
|
Benefits |
1.Continuity--the mesh is formed from a single piece of metal 2.Environment friendly--no wasteful of material 3.High strength--higher strength to weight ration then metal sheet 4.Adherence--anti slip surface 5.Very good noise and fluid filtration--excludes & retains simultaneously 6.Good rigidity--premium reinforcement properties 7.Good conductivity--highly efficient conductor 8.Screening--practical and effective light filtration 9.Good resistance to corrosion |

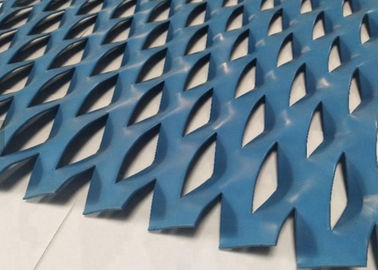

4.The pictures of the Architectural Expanded Mesh For Decorative Window screen or Door Screen
The size and color can be made according to the customer's requirement.
