Product Details:
|
| Punching Times: | 200-240 Times/min | Rated Voltage: | 220V / 380V / 440V |
|---|---|---|---|
| Out Size: | 1800*1320*1550mm | Motor Power: | 3kw |
| Weight: | 2 Tons | Material Thickness: | 0.2-4mm |
| Highlight: | laser cut metal screens,perforated metal sheet |
||
1. introduce of expanded metal mesh machine
1) This series of machine tool are used to expand cold-roll steel sheets
2) This machine can do all kinds of expanded meshwhich used in construction,Daily Hardware,
Window ornament,machine shield & electronic product.
3) The feeding principle is that the main machine can run exactly and stably through the direct transfer by gear wheel,ratchet wheel
and cam wheel.
4) The machine adopts the four-axis feed and turbine box drive feed.
5) The feeding is that the feed shaft drives the longitudinal feeding by the four bevel gear, eccentric wheel,draw bar, worm and ratchet.
Meanwhile, To promote the swinging cutter to act to left and right through the cam
6) Auxiliary part is used to lift the raw material sheet which is consists of several roller and tripod(design data can be offered by us,
customers can make it themselves.)
2. specification of expanded metal mesh machine
| HH25-6.3 | HH25-16 | HH25-25 | HH25-63 | HH25-100 | |
| Material thickness | 0.1-1mm | 0.2-1mm | 0.2-1.5mm | 0.5-2.5mm | 0.5-4mm |
| Material max width | 500mm | 1000mm | ≤1250mm | 2000mm | 2000mm |
| Stroke per min | 180/min | 150/min | 150/min | 70/min | 60/min |
| Distance of feed | 0-1.2mm | 0-1.2mm | 0-1.2mm | 0-4mm | 0-4mm |
| Mesh size of SW | 20mm | ≤25mm | ≤30mm | 100mm | 150mm |
| Motor | 2.2kw | 3kw | 4kw | 11kw | 18kw |
| Net weight | 0.95T | 2T | 3T | 11T | 12T |
| Overall dimensions | 1090*710*1450mm | 1740*1400*1500mm | 1940*1600*2010mm | 2400*3500*2300mm |
3600*2500*3000MM |
3. Main features of expanded metal mesh machine
1) PLC and Touch Screen adopts demostic famous brand.
2) Matirial feeding with CNC step motor control.
3) The fuselage is nodular cast iron.
4) Full automatic lubrication.
5) Includes one set of alloy cutter for free.
6) It has reasonable structure,elegant appearance,it is environmental production and energy saving.

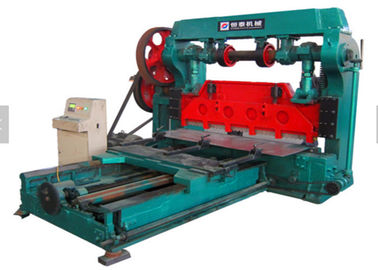

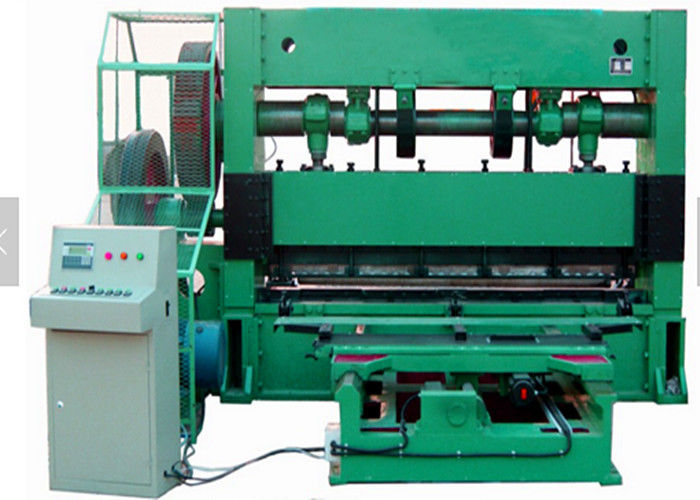

4.images of expanded metal mesh machine
5.package pictures
6. certification
7. FAQ
Q: Are you the factory?
A: Yes,We are a professional wire mesh machines manufacturer. We dedicated in this industry for 12years. We can offer you
competitive machines.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Anping county, hebei Province, China, about 2.5 hours by car from Beijing .All our clients, from home
or abroad, are warmly welcome to visit our company !
Q: What is the voltage ?
A: To ensure each machine runs well in different country and region, we will choose different voltage like 220V 50HZ; 380V 50HZ;
415V 50HZ;440V 60HZ etc
Q: How much is your machine ?
A: The price is depended on 3 factors:wire diameter, mesh size,and mesh width.
Q: What is your payment terms?
A:Usually by T/T ( 30% in advance, 70% T/T before shipment) or 100% irrevocable L/C at sight, or cash etc. It is negotiationable.
Q: Do your supply includes installation and debugging ?
A: Yes. We will send our best engineer to your factory for installation and debugging. The cost will be quoted separately if you
need such service.
Q: How long is your delivery time?
A: If we have in stock, delivery to Tianjin port about 5 days, No stock, it will be 30 days after received your deposit.
Q: How can you guarantee the quality and the warranty?
A. We have an inspection team to check the products at all stages of the manufacturing process-raw material, welding process
and test the finished products, etc. 100% inspection in assembly line to achieve the required quality levels.
