Product Details:
|
| Name: | Insulation Anchor Support | Material: | Mild Steel |
|---|---|---|---|
| Surface: | Zinc Coated | Pin Daimeter: | 12ga |
| Pin Length: | 9-7/8" | Small Order: | Available |
| Highlight: | duct insulation pins,insulation anchors |
||
mian picture specification of this term
|

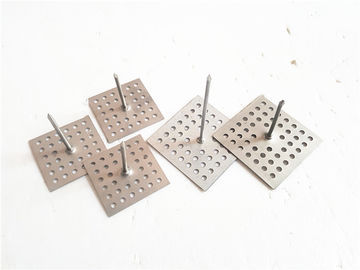

picture of perforated base insulation support anchors |
insulation support anchor details |
 |
material: mild steel surface treatment: zin coated pin thickness:12ga pin length:9-7/8"(250mm) base size:50mmx50mm base thickness:0.5mm |
common technical data of perforated base insulation support anchor
the drawing is design by huihao company. we will offer cad drawing to our customer to confirm the finally techinical datas.
|
material |
pin dia |
base size |
length |
|
Galvanized steel ,ss , aluminum |
2mm-3mm |
2''X2'' |
1/2" |
|
Galvanized steel ,ss , aluminum |
2mm-3mm |
2''X2'' |
1" |
|
Galvanized steel ,ss , aluminum |
2mm-3mm |
2''X2'' |
1-5/8" |
|
Galvanized steel ,ss , aluminum |
2mm-3mm |
2''X2'' |
2" |
|
Galvanized steel ,ss , aluminum |
2mm-3mm |
2''X2'' |
3-1/2" |
|
Galvanized steel ,ss , aluminum |
2mm-3mm |
2''X2'' |
4 1/2" |
|
Galvanized steel ,ss , aluminum |
2mm-3mm |
2''X2'' |
5 1/2" |
|
Galvanized steel ,ss , aluminum |
2mm-3mm |
2''X2'' |
6" |
|
Galvanized steel ,ss , aluminum |
2mm-3mm |
2''X2'' |
8" |
Characteristics of perforated base insulation support anchor
Use raw materials that meet international standards
Rust-proof surface treatment, long service life
CNC technology, small error range
Smooth surface without burrs
Scientific dimensional design, in line with mechanical standards
Suitable for all kinds of wall
High pull-off strength for a higher security of the system
Low thermal conduction addition value to avoid thermal bridge
Galvanized layer on the steel nail to protect the nail from alkali

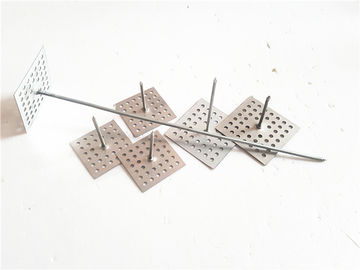

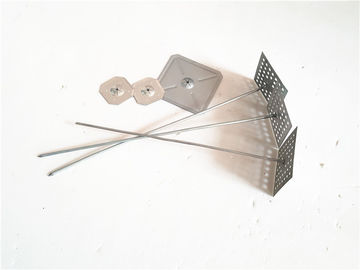

images of perforated base insulation support anchors
