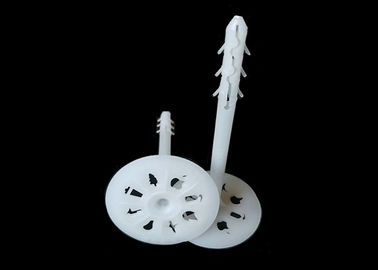

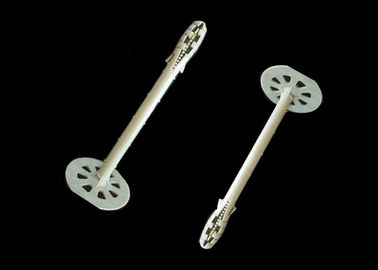

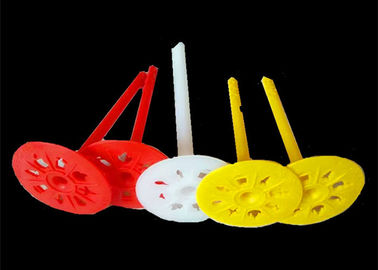

Product Details:
|
| Name: | Exterior Wall Insulation Anchoring Nails | Material: | Plastic |
|---|---|---|---|
| Plastic Disc: | More Than 50mm | Length: | 30mm-200mm |
| Tube Diameter: | M8, M10 | Application: | Wall Thermal Insulation System |
| Factory: | More Than 10 Years | Small Order: | Support |
| Highlight: | duct insulation pins,insulation anchors |
||
Parameter data of Exterior Wall Insulation Anchoring Nails With Plastic Disc For Fixing XPS Board
|
Parameter Data For Plastic Material Exterior Wall Insulation Anchoring Nails
|
|
|
terms
|
standard
|
|
Plastic tube outer Diameter (VV)
|
8-10
|
|
Plastic plate Diameter (mm)
|
≥ 50
|
|
Effective anchor depth (mm)
|
> 25
|
|
Max. bearing capacity (KN)
|
≥1.2
|
|
Value added Thermal conductivity (W/m2K)
|
≤ 0.04
|
parts of specification of Exterior Wall Insulation Anchoring Nails With Plastic Disc For Fixing XPS Board
|
Items
|
Tensile Capacity
|
The Added Value of Heat Transfer
|
Hole Size
|
Anchor Length
|
Disc Diameter
|
Insulation Anchors Thickness
|
|
8x82
|
0.90KN
|
0.0035w/(m²·k)
|
8mm
|
82mm
|
50mm
|
30mm
|
|
8x102
|
0.90KN
|
0.0035w/(m²·k)
|
8mm
|
102mm
|
50mm
|
50mm
|
|
8x122
|
0.90KN
|
0.0035w/(m²·k)
|
8mm
|
122mm
|
55mm
|
70mm
|
|
8x132
|
0.90KN
|
0.0035w/(m²·k)
|
8mm
|
132mm
|
55mm
|
80mm
|
|
8x142
|
0.90KN
|
0.0035w/(m²·k)
|
8mm
|
142mm
|
55mm
|
90mm
|
wall thermal insulation system-Exterior Wall Insulation Anchoring Nails With Plastic Disc For Fixing XPS Board
Concept:It consists of thermal insulation layer, plaster surface course, fixing materials(adhesive, Insulation fastener ets) and non-
bearing thermal insulation construction fixed on the extrior wall(base material).
base material:the wall body attached by wall thermal insulation system
thermal insulation layer:consists of thermal insulation material, and the function is for thermal insulation.
plaster syrface course:plaster on the thermal insulation layer, and there is reinforced net between;protect thermal insulation layer;
avoid cracking and water penetration; shock resistance and certain fire protection.
decoration layer:outer decorating construction layer for wall thermal insulation system.
adhesive:polymer cement mortar between insulation board and base material.
insulation anchoring nail: fasteners between insulation board and base material.
gridding cloth: a structural role in thermal insulation system, mainly avoid cracking
installation of Exterior Wall Insulation Anchoring Nails With Plastic Disc For Fixing XPS Board
1. put the insulation drive pins into the muzzle of fastening tool
2.oress the insulation drive pins vertically onto the insulation layer
3.pull the trigger of fastening tool
4.finish operating and the insulation layer were fastened onto the base materials.
.
