Product Details:
|
| Product Name: | CD Welding Insulation Nail Pins | Diameter: | 10GA 12GA 14GA 3mm |
|---|---|---|---|
| Length: | As Your Request | Material: | Mild Steel Or Stainless Steel Or Aluminum |
| Surface Finish: | Copper Plated | Washer Type: | Dome Caps |
| Highlight: | aluminum welding insulation pins,high hardness welding insulation pins,high hardness cd weld pins |
||

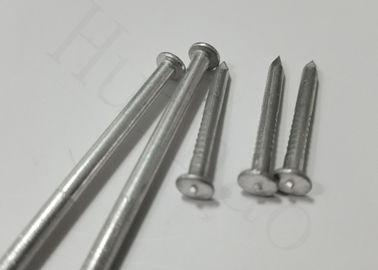

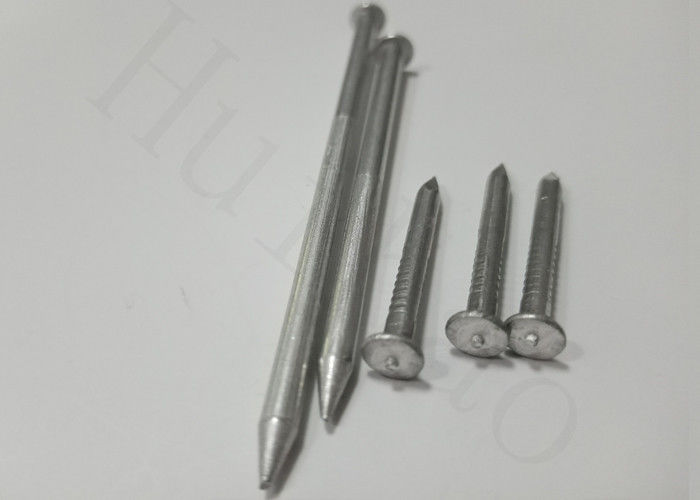

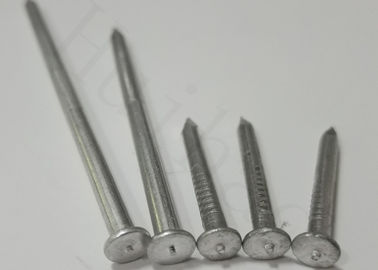

1. The CD welding pins is a low carbon steel, stainless steel or aluminum weld pin that is ideal to apply with pin welding or stud welding equipment.
2. Manufactured with a standard capacitor discharge weld tip and flange, the CD welding pins are popularly used as an insulation fastener, in combination with self locking washers (or “speed clips”) to secure insulating material.
3.Materal: mild steel, stainless steel and aluminum
4.Plating:mild steel pins are copper plated
5.Washers:various types of steel, stainless steel and aluminum self locking washers
6.Standard nail point is used for most applications, nut also available
1.Length of this style pin should exceed the thickness of the insulation, in order to securely attach the self-locking washer.
2. Nail point is standard - available with "blunt end" as special order.
3. Insulation CD welding pins simplify the permanent attachment of insulation to just about any kind of construction metal surface.
4. They can be applied quickly and easily using standard CD or Arc stud welding equipment.
5. Weld pins are available in different styles to cover a wide variety of applications.
6. Some factors to consider regarding the pin style needed for your job would be the base metal type size and surface condition, and also the welding equipment to be used.
 |
Size | D | FD(Steel) | FD(Aluminum) | L |
| 14GA | 0.08" | 0.160" | --- | 3/4" | |
| 1" | |||||
| 1-1/2" | |||||
| 2" | |||||
| 2-1/2" | |||||
| 3" | |||||
| 12GA | 0.105" | 0.180" | 0.230" | 3/4" | |
| 1" | |||||
| 1-1/2" | |||||
| 2" | |||||
| 2-1/2" | |||||
| 3" | |||||
| 3-1/2" | |||||
| 4" | |||||
| 4-1/2" | |||||
| 5" | |||||
| 5-1/2" | |||||
| 6" | |||||
| 7" | |||||
| 8" | |||||
| 3mm | 0.118" | 0.190" | 0.240" | 25mm | |
| 30mm | |||||
| 35mm | |||||
| 40mm | |||||
| 45mm | |||||
| 50mm | |||||
| 55mm | |||||
| 60mm | |||||
| 65mm | |||||
| 70mm | |||||
| 75mm | |||||
| 100mm | |||||
| 125mm | |||||
| 150mm | |||||
| 10GA | 0.135" | 0.195" | 0.250" | 1" | |
| 1-1/2" | |||||
| 2" | |||||
| 2-1/2" | |||||
| 3" | |||||
| 3-1/2" | |||||
| 4" | |||||
| 4-1/2" | |||||
| 5" | |||||
| 5-1/2" | |||||
| 6" | |||||
| 7" | |||||
| 8" | |||||
| 9" |
| MATERIAL | MILD STEEL | STAINLESS STEEL | ALUMINUM |
|---|---|---|---|
| C - 0.23% max. P - 0.04% max. Mn - 0.90% max. S - 0.05% max. |
AISI Grade: 302/304/305 Standard Other grades are available. |
Alloy 1110-H14 standard. Other alloys available by request. |
|
| MECHANICAL PROPERTIES |
Tensile- 60,000 psi (min.) Elongation: 20% (in 2 inches) |
---------- | ---------- |
| PLATING | Galvanized and copper plating are available for low carbon steel. | ---------- | |
| ANNEALING | Pins are annealed where required. | ---------- |
1.Aluminum Insulation CD Weld Pins
2.Stainless Steel Insulation CD Weld Pins
3.Copper Coated Mild Steel Insulation CD Weld Pins
