Product Details:
|
| Name: | Gold Metallic Mesh Laminated Glass Partition | Whole Thickness: | 3+3, 5+5, 6+6, 6+8, 8+10, 10+10, 10+12, 12+12, 15+15, 19+19 |
|---|---|---|---|
| Glass Type: | White Tempered Glass | Film Type: | PVB |
| PVB Thickness: | 0.38mm-3.04mm | Usage: | Glass Doors And Partitions |
| Highlight: | Metallic Mesh Laminated glass,Laminated Glass Partition,gold color Laminated glass |
||
Laminated colors and design, manufacture different type wire mesh for laminated glass.

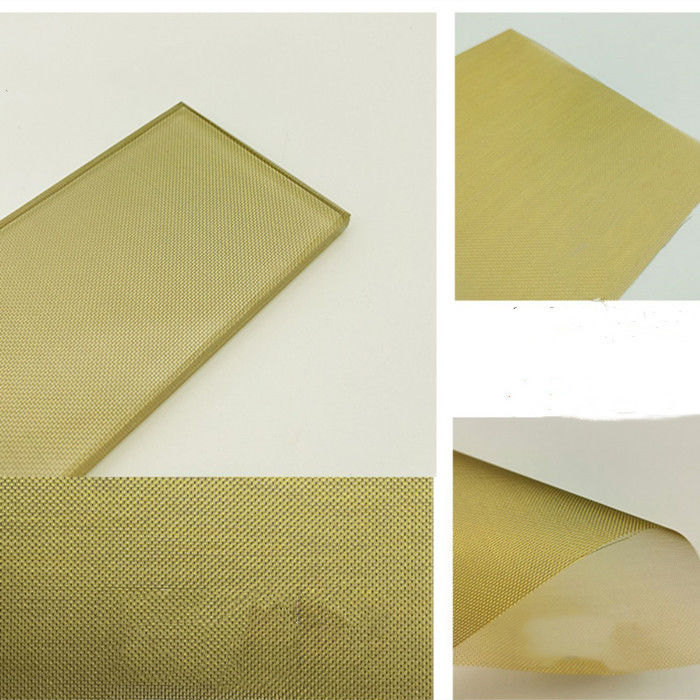

Metallic mesh laminated glass is a type of safety glass that is made by sandwiching a layer of fabric between two or more layers of glass. The metallic mesh layer is typically made of materials such as stainless steel wire or brass wire and is placed between the glass layers during the lamination process. The result is a glass panel that is stronger and more resilient than ordinary glass, with increased resistance to impact, shattering, and penetration.
| name | over thickness | open area | weight |
| metallic mesh | 0.6mm | 50% | 1.1kgs/square meter |
| material | wire diameter | max width | hole type |
| stainless steel wire/copper wire | 0.28mm | 3000mm | design pattern |
| Gold Metallic Mesh Laminated Glass Partition material | copper wire weave mesh, copper rope mesh, copper laser cutting mesh |
| glass type |
|
| Whole thickness of Gold Metallic Mesh Laminated Glass Partition |
|
| Whole size of Gold Metallic Mesh Laminated Glass Partition |
|
|
Metallic mesh laminated glass is Widely used in this modern world such as :
1. Glass partition wall
2. Glass window
3. Shower enclosure
4. bathroom door
5. Sliding doors
