Product Details:
|
| Material: | Stainless Steel , Galvanized Steel. Mild Steel | Head: | 7/8" As Standard |
|---|---|---|---|
| Spindle Dia: | 12ga Or 14ga As Standard | Length: | 2-1/2" Or 4-1/2" As Standard |
| Head Thickness: | 1mm | Application: | Freeze Protection Cover |
| Highlight: | rockwool insulation pins,duct insulation pins |
||

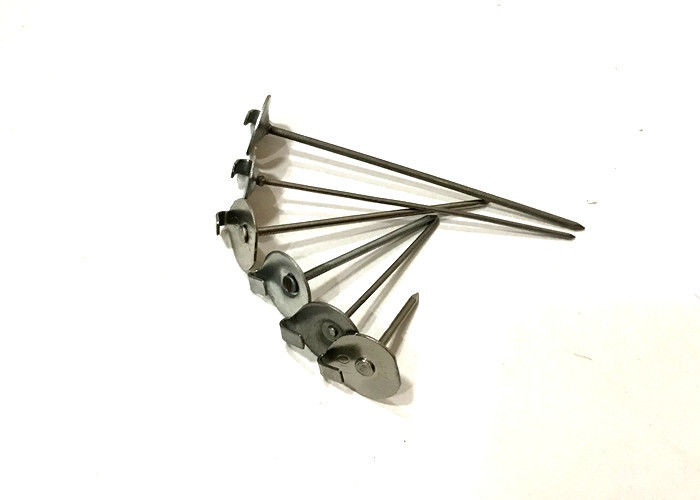

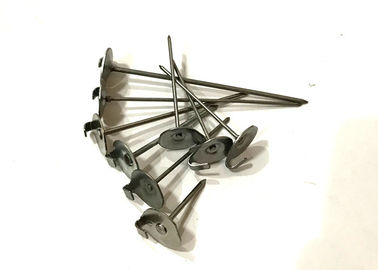

Specification Of Metal Insulation Lacing anchors With Speed Clips For Freeze Protection Cover
|
type |
head size |
hook length |
head thickness |
pin diameter |
pin length |
|
1 |
22mm |
5mmx11mm |
1mm |
2.2mm, 2.7mm, 3mm |
25mm-140mm |
|
2 |
11mmx24mm |
5mmx11mm |
1mm |
2.2mm,2.7mm,3.0mm |
25mm-140mm |
|
3 |
30mm |
5mmx15mm |
1mm |
2.2mm,2.7mm,3.0mm |
63mm-250mm |
Materials: stainless steel , galvanized steel and mild steel

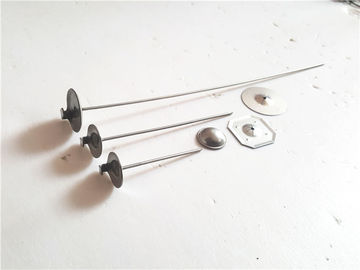

fixing parts : Self-locking washers , speed clips and dome cap washers. or to be your request.

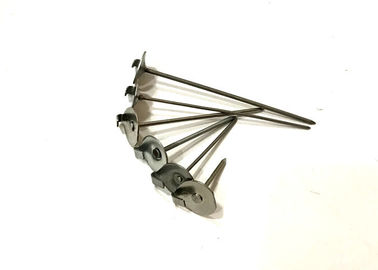

types of Metal Insulation Lacing anchors With Speed Clips For Freeze Protection Cover
How to Cooling Insulation Covers Lacing Anchors, Removable Insulation Jacket Anchor Pin
1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5:install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
applications of Cooling Insulation Covers Lacing Anchors, Removable Insulation Jacket Anchor Pin
| stainless steel material lacing anchors are wildy used for fixing: | |
|
|
