Product Details:
|
| Material: | Galvanized Steel Is Standard | Finished: | Copper Coating Or Galvanized Steel |
|---|---|---|---|
| Pin Diameter: | 2.7mm / 12GA | Head Diameter: | 30mm |
| Pin Length: | 12mm-203mm | Sample: | Support |
| Highlight: | copper plated insulation pins,cd weld pins |
||
Why choose huihao hardware?
1.we could supply metal stamping service,CNC machining service,laser cutting service and welding service.
2. Years of production experience, successful completion of different specifications of products, complete mold.
3. Advanced production equipment and guaranteed product quality.
4. Timely freight arrangement, no delay, and door-to-door freight service
5. Sample service. General specifications are provided free of charge. Customers are required to provide sample fees for
customized products. After the order is completed, it will be deducted from the purchase price.
6.We can provide customized packaging for you.
>>>Specification Of Huihao Mat Insulation Metal Cupped Head Weld pins With Welding Gun Tools
Simple construction● high fficiency●saving labors ●Eeasy weld to fasten the insulation
●Pins sharp for easy go through any insulation●
| round base | pin diameter | pin length | base type |
| 30mm | 14ga, 12ga | 38mm-203mm |
base with paper base without paper |
| 35mm | 12ga, 10ga | 25mm,38mm | |
| 25mm | 12ga,10ga,3mm | 25mm,38mm | |
| material | mild steel | stainless steel | aluminum alloy |
| surface treatment | zinc/copper coated | cleaning | no |
>>> Introduction To Huihao Mat Insulation Metal Cupped Head Weld pins With Welding Gun Tools
| MECHANICAL PROPERTIES | Values available upon request | Values available upon request | ||
| PLATING | Standard Pin is Galvanized | Standard Washer is Galvanized | ||
| Copper Plated is available | ||||
| BEVEL | Washer edge is beveled to prevent cutting of insulation material | |||
| STAINLESS STEEL | Not standard, but available by special order | |||
| PAPER INSULATING WASHERS | Available, upon request, for welding through foil faced insulation | |||

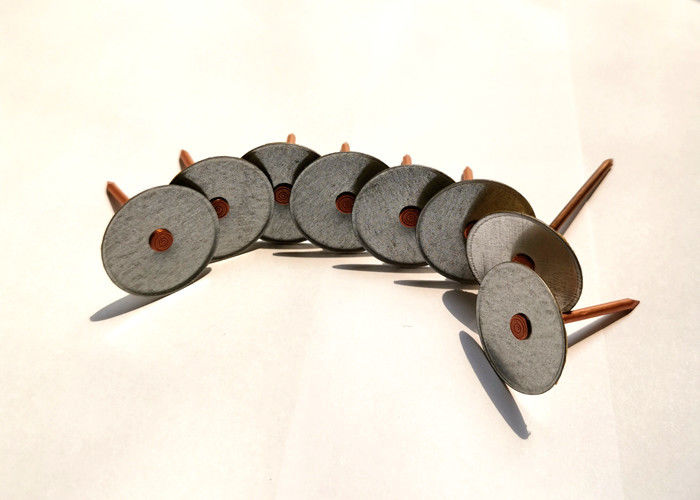

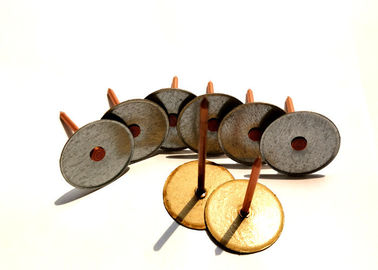

Images of Huihao Mat Insulation Metal Cupped Head Weld pins With Welding Gun Tools
Application of Huihao Mat Insulation Metal Cupped Head Weld pins With Welding Gun Tools
1. Cupped head weld pins is insulation fastener which is used to fasten the insulation materials to sheet metal of air duct,
other heating, ventilating or air conditioning.

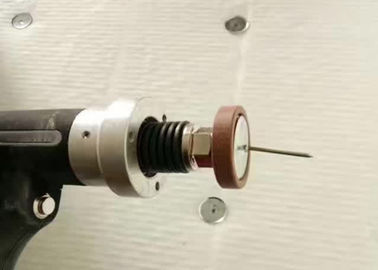

2. A fabricated part made up of a weld pin and a staked on retaining washer,cup head weld pin is usually applied with a
capacitor discharge stud welder.
3. The method of application is to place the insulation onto a metal surface, push the Cup Head weld pin through the insulation,
and weld affix (mount) the entire fabrication in one step. Now it is widely accepted as labor saving fasteners in the thermal and
acoustical insulation markets for use in industrial and commercial applications.
Removable and reusable thermo-acoustic insulation system designed according to the physical conformation of the
equipment to be insulated. Composed of a combination of fibers of different densities and an inner layer of Sound system
can reduce sound emissions by up to 70% in different equipment. It can be applied to grinding trains, blowers, compressors,
turbo pumps, shredders, dryers, machine rooms, etc.
