Product Details:
|
| Material: | Stainless Steel 304, 316 | Washer Size: | 25mm |
|---|---|---|---|
| Hook Size: | 5mmx11mm | Application: | Thermal Insulation Covers |
| Key Word: | Lacing Hook System | Small Order: | Available |
| Highlight: | rockwool insulation pins,duct insulation pins |
||
Stainless Steel Lacing Anchor Hook Washer/ Lacing hooks system are used for securing and tying removable insulation
blankets, work with Lacing washers to fasten the insulation. Install the lacing hook with wire, secure with lacing washer,
use lacing wire to fasten the insulation through the lacing hooks.
Specification of Stainless Steel Lacing Anchor Hook Washer Is Fixed Thermal Insulation Covers:
| material | width of lacing hook washer | hook size | thickness |
| stainless steel | 22mm, 25mm | 5mmx11mm | 1mm |
| galvanized steel | 22mm, 25mm | 5mmx11mm | 1mm |
we accept OEM orders, and supply pattern design, surface treatment and project advices

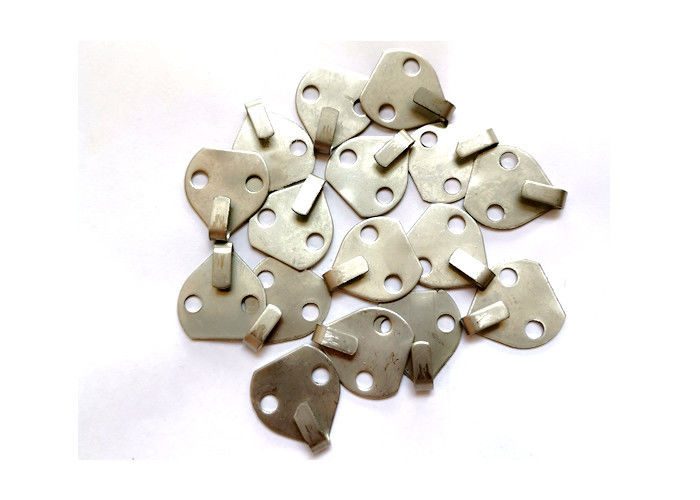

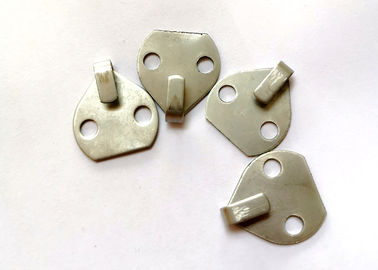

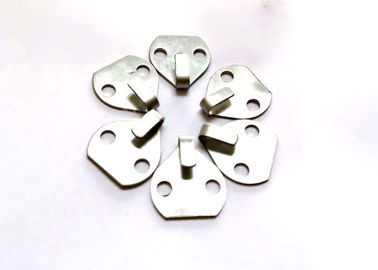

images of Stainless Steel Lacing Anchor Hook Washer Is Fixed Thermal Insulation Covers
Application of Stainless steel Lacing Hook Systems
-Stainless Steel Lacing Anchor Hook Washer Is Fixed Thermal Insulation Covers
Lacing Hook and Two-Hole Washer System provides an even lower cost and the same easy-to-lace design. The tie wire
application provides more blanket flexibility with equally secure performance. The Series 80 Lacing Hook is similar in function
and appearance to the Lacing Anchors. The Series 80 Lacing Hook Washer is stocked in mild steel, cadmium plated and
stainless steel. All Series 80 Lacing Hooks are stamped “NO AB” to indicate no asbestos at no additional cost.
| stainless steel material lacing Hook anchors washers are wildy used for fixing: | |
|
|
related Parts of lacing hook anchor system
specification of stainless steel lacing ring
| Wire diameter | inter diameter | SWL(KG) | BL(KG) |
| 3MM | 15MM-40MM | 162 | 650 |
| 4MM | 20MM-40MM | 250 | 1000 |
| 5MM | 25MM-65MM | 500 | 2000 |
| 6MM | 25MM-90MM | 800 | 2700 |
| 8MM | 30MM-100MM | 1250 | 3200 |
| 9MM | 30MM-90MM | 1500 | 5000 |
| 10MM | 40MM-100MM | 2125 | 6200 |
| 12MM | 50MM-140MM | 2500 | 10000 |
| 13MM | 55MM-160MM | 2875 | 11500 |
