Product Details:
|
| Product Name: | Capacitor Discharge Weld Insulation Pin | Material: | Stainless Steel ,carbon Steel |
|---|---|---|---|
| Surface Treatment: | Copper Plated ,zinc Coated .polish | Length: | 25-250mm |
| Diameter: | 2.7mm 3mm 3.4mm | Base Type: | Powerbase/flatbase |
| Usage: | Secure Air Conditioning Ducts | Certification: | ISO9001 |
| Highlight: | zinc plated stud welding pins,3.4mm Stud Welding Pins,powerbase stud welding pins |
||

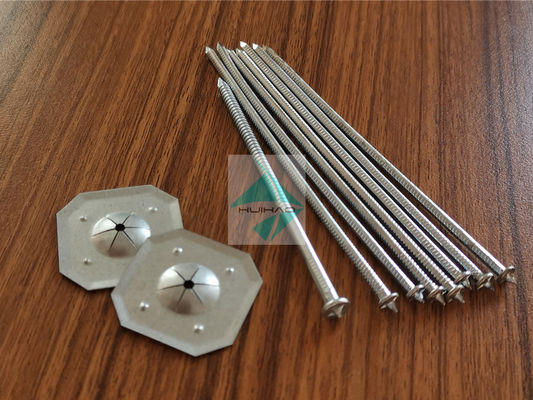

The Capacitor Discharge Weld Pins is a Low Carbon Steel, Stainless Steel or Aluminum weld pin that
is ideal to apply with pin welding or stud welding equipment. Manufactured with a standard capacitor
discharge weld tip and flange, the Capacitor Discharge Weld Pins is popularly used as an insulation
fastener, in combination with self locking washers (or “speed clips”) to secure insulating material.
We recommend Capacitor Discharge Pins for welding to clean surfaces. For difficult surfaces the
“Power Base” Weld Pin is designed to weld through paint and rust to eliminate grinding of the base
metal. Both are available in various diameters and lengths.
| Product Name | Copper plated CD weld insulation pins |
| Material | Mld siteel |
| Pin diameter | 10Ga,12Ga,14Ga in common |
| Pin length | 25mm-250mm ,and the length could made according to the customer’s requirement |
| Washer diameter | 30mm or 38mm dome cap washer in common |
| Surface treatment | Copper plated or galvanized plated |
| WELD NAILS MATERIAL | STANDARD OF MATERIAL |
| Low Carbon Mild Steel 4.8 (weldable) Stainless Steel A2-50 (weldable) Aluminium Alloy AlMg3 Pure Aluminium Lead Free Brass 4.8 (weldable) |
EN 20898-1 EN ISO 3506-3 EN 573-3 EN 573-3 ISO 426 –1 / ISO 1638 |
1Gun with Cables is used to command the power unit and deliver weld current, with the Gun also serving
as the Pin h.The Controller [ or Power Unit] which is plugged into the one-hundred-and-ten-volt outlet.
2.The CD older to properly place the pin during welding.
3.Then, on the other side of “the circuit” a ground cable and clamping connection is attached to the
work-surface to complete our Capacitor Discharge connections.
4.And finally, special Accessories are used to hold the Pin in the Gun.

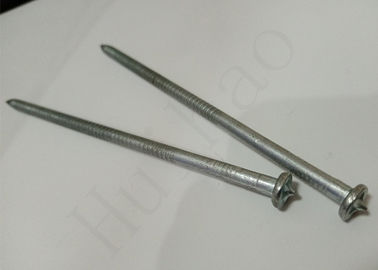

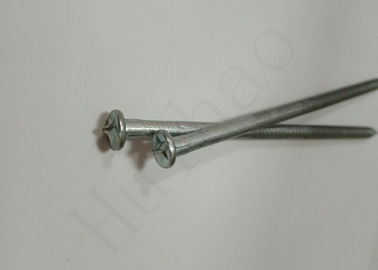

Capacitor Dischage With Zinc Coated
Capacitor Dischage With Copper Plated
Packing for Cacacitor Discharge
Capacitor Discharge Weld Pins1.500pcs per bags, 10 bags per carton. if the length too long,
we will be according your requirements to pack.
| Package of the copper coating weld pins | ||||
| term | length | width | height | loading |
| carton size | 28cm | 20cm | 25cm | 3000pcs |
| pallet | 1120mm | 1000mm | 1100mm | 100 cartons |
| 20ft container | 18 pallets | 40ft container | 36 pallets | |
