Product Details:
|
| Product Name: | CD Weld Insulation Pin | Material: | Carbon Steel ,stainless Steel ,aluminum |
|---|---|---|---|
| Surface Treatment: | Zinc Coated And Copper Plated ,polish | Pin Diameter: | 10 GA, 12GA ,14GA |
| Nail Length: | 30mm-250mm | Usage: | Shipping Build |
| Base Type: | Powerbase/flatbase | ||
| Highlight: | 14GA Spot Welding Pins,cd spot welding pins,14GA Capacitor discharge insulation pin |
||
Product name: Insulation CD spot welding pins ,stud welding pins
Material: Low carbon steel, Aluminum, Stainless steel
Plating: Galvanized coating or cooper plating for low carbon steel
No Plating for Aluminum or stainless steel
Pin diameter: 10GA, 12GA, 14GA
Head part diameter : 0.175″ ,0.22″
Length: 3/4″ 1″ 1-1/2″ 2″ 2-1/2″ 3″ 3-1/2″ 4″ 4-1/2″ 5″ 5-1/2″ 6″ 6-1/2″ 7″ etc
The CD copper coating weld pin is a capacitor discharge weld insulation fastener, these insulation weld
pins work with a stud welding machine, weld the pins on the sheet metal, then put the insulation material
through the weld pins,press a self locking washer or metal clips or dome caps onto the pin, bend over
or clip off the pin to finish fastening insulation installation. Weld nails are usually used shipping industry.

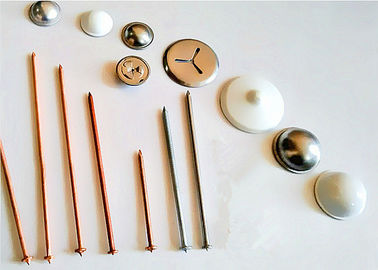

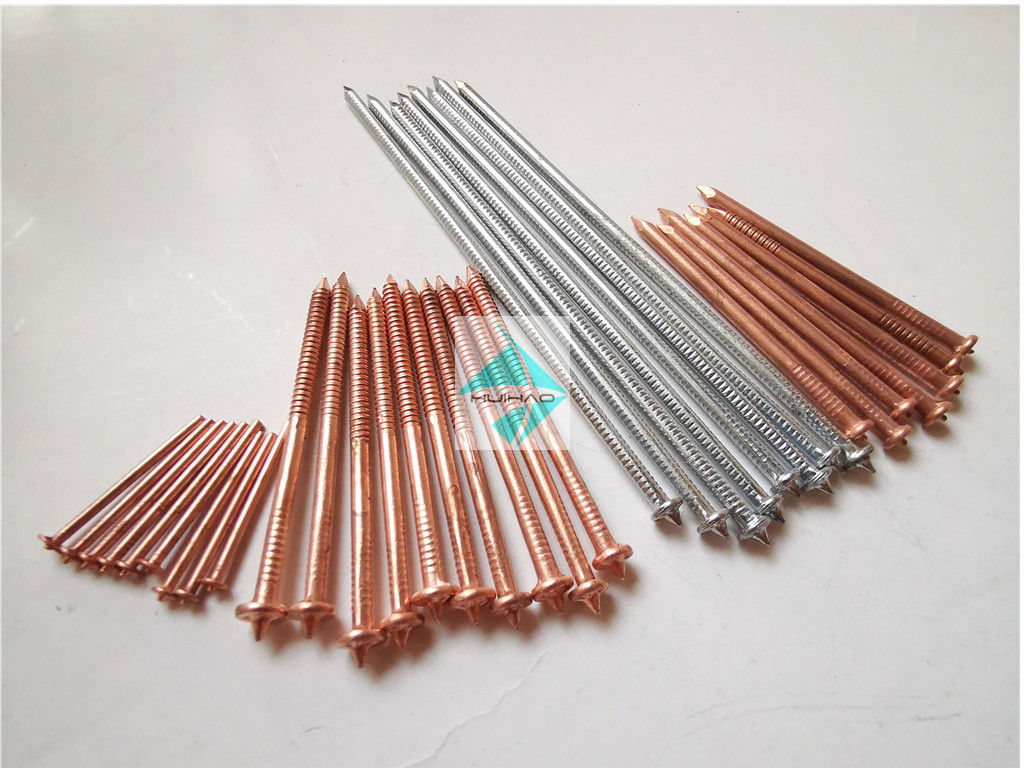

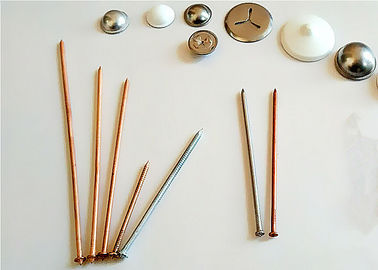

Insulation CD Spot Welding Pins, Stud Welding Pins Pic:
|
Specification of Insulation CD spot welding pins ,stud welding pins |
|||
| Weld pin diameter | Weld pin length | Weld type |
surfacetreatment
|
| 2.7mm |
30-220mm
|
Powerbase/flatbase | Plated and zinc coated are mild material , polish for ss nofinished for aluminum 1100 |
| 3.0mm |
30-220mm
|
Powerbase/flatbase | |
|
3.4mm
|
30-220mm | Powerbase/flatbase | |
|
features of Insulation CD spot welding pins ,stud welding pins |
|
| BETTER PLATING | weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Climatech weldpin shanks are copper plated. |
| REDUCED DOWN TIME | Consistent point quality reduces frequency of machine adjustments. |
| STRONGER WELDS | Hardened steel point assures positive electrical contact for complete sheet to pin fusion. |
| CORROSION RESISTANCE | Plating exceeds current SMACNA standards for corrosion resistance. |
| TEMPERATURE RANGE | CD Weld pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C. |
| VIBRATIONS |
CD Weld pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems. |
|
Package of Insulation CD spot welding pins ,stud welding pins |
||||
| term |
length
|
width | height | loading |
| carton size |
28cm
|
20cm | 25cm | 3000pcs |
| pallet |
1120mm
|
1000mm | 1100mm | 100 cartons |
| 20ft container |
18 pallets
|
40ft container | 36 pallets | |
