Product Details:
|
| Product Name: | Capacitor Discharge Insulation Weld Pin | Material: | Carbon Steel ,stainless Steel ,aluminum |
|---|---|---|---|
| Surface Treatment: | Copper Plated ,zinc Coated ,polished | Pin Length: | 30-250mm |
| Pin Diameter: | 2.7mm 3mm 3.4mm | Usage: | Shipping Build |
| Certification: | ISO9001 | Packing: | 1.500pcs In One Bag |
| Highlight: | 2.7mm Stud Welding Pins,copper plated Stud Welding Pins,250mm Stud Welding Pins |
||
Material: Mild steel
Pin diameter :2.7mm, 3.0mm in common
Pins length ;25mm-250mm , and the length could made according to the customer's requirement.
Washer diameter:30mm or 38mm dome cap washer in common.
Surface treatment;Copper plated or zinc coating
| WELD NAILS MATERIAL |
STANDARD OF MATERIAL
|
| Low Carbon Mild Steel 4.8 (weldable) Stainless Steel A2-50 (weldable) Aluminium Alloy AlMg3 Pure Aluminium Lead Free Brass 4.8 (weldable) |
EN 20898-1 EN ISO 3506-3 EN 573-3 EN 573-3 ISO 426 –1 / ISO 1638 |

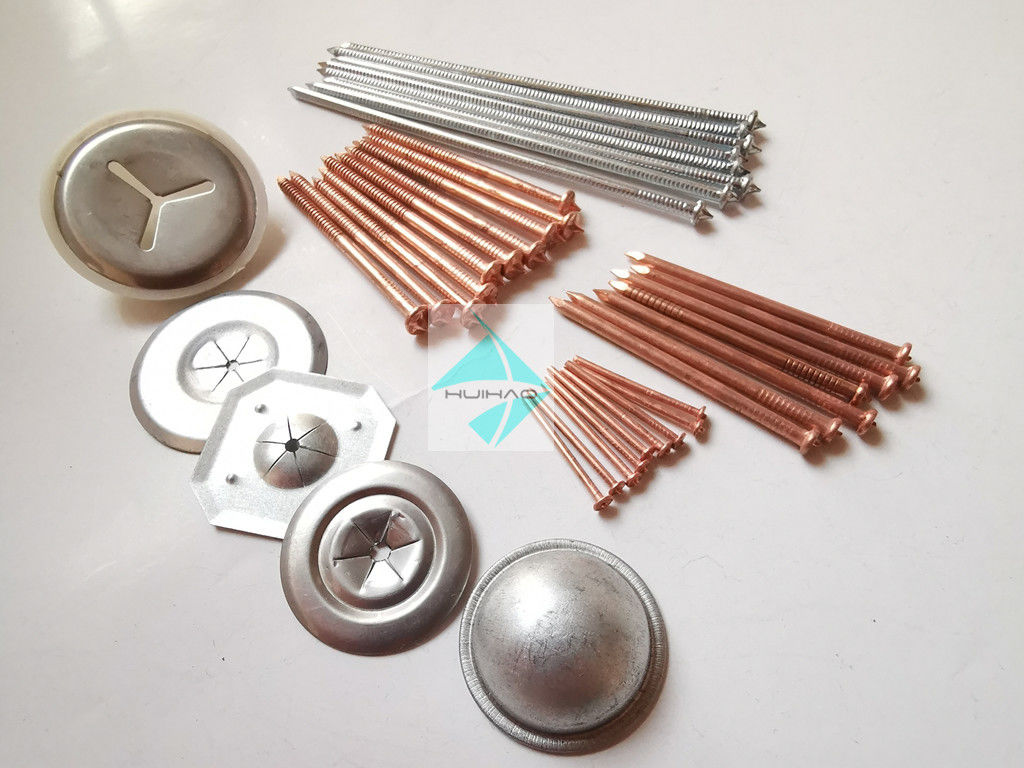

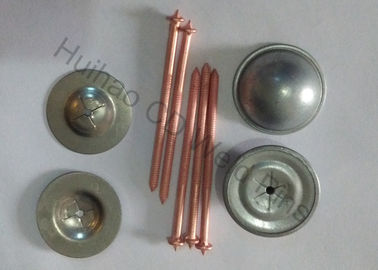

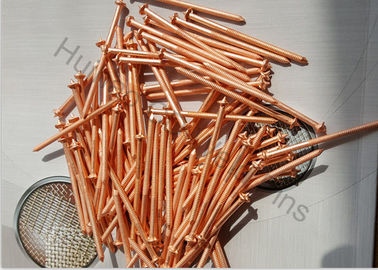

Copper plated powerbase capacitor discharge weld insulation pin
Powerbase weld pins with copper plating
Material :steel ,copper coated steel
Nail length:45mm ,60mm,65mm,70mm,75mm
100mm ,120mm,130mm

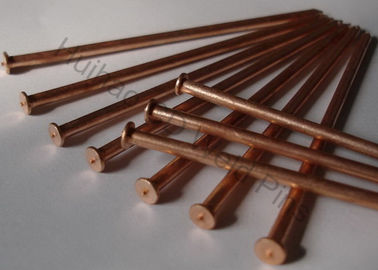

Zinc coated flatbase capacitor discharge weld insulation pin
Flatbase weld pins with zinc coated
Material :steel ,zinc coated steel
Nail length:45mm ,60mm,65mm,70mm,75mm
100mm ,120mm,130mm
|
Specification of Insulation fastener capacitor discharge CD stud welding pins |
|||
|
Weld pin diameter
|
Weld pin length | Weld type | surfacetreatment |
|
2.7mm
|
30-220mm | Powerbase/flatbase | Plated and zinc coated are mild material , polish for ss nofinished for aluminum 1100 |
|
3.0mm
|
30-220mm | Powerbase/flatbase | |
|
3.4mm
|
30-220mm | Powerbase/flatbase | |
Packing of capacitor discharge weld insulation pin
Capacitor Discharge Weld Pins1.500pcs per bags, 10 bags per carton. if the length too long, we will be
according your requirements to pack.
| Package of the copper coating weld pins | ||||
| term | length | width | height | loading |
| carton size | 28cm | 20cm | 25cm | 3000pcs |
| pallet | 1120mm | 1000mm | 1100mm | 100 cartons |
| 20ft container | 18 pallets | 40ft container | 36 pallets | |
