Product Details:
|
| Product Name: | Galvanized CD Stud Weld Pins | Material: | Stainless Steel ,carbon Steel ,aluminum |
|---|---|---|---|
| Surface Treatment: | Galvanized ,copper Plated ,polished | Pin Diameter: | 2.7mm 3mm 3.4mm |
| Pin Length: | 25-250mm | Washer: | 30mm ,38mm In Common Size |
| Usage: | Ship Building | ||
| Highlight: | galvanized cd weld pins,3.4mm cd weld pins,250mm cd weld pins |
||
1. Grade: 302/304/305 std.Other grades available upon request., Al 1100, Low carbon steel
2. small order: huihao company accept small orders for common sizes of CD weld pins
3. Certification: ISO9001

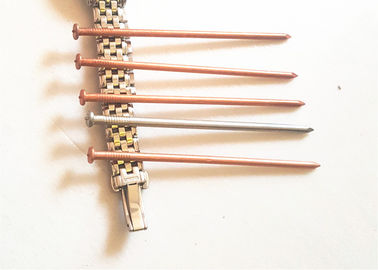

The CD copper coating weld pin is a capacitor discharge weld insulation fastener, these insulation
weld pins work with a stud welding machine, weld the pins on the sheet metal, then put the insulation
material through the weld pins, press a self locking washer or metal clips or dome caps onto the pin,
bend over or clip off the pin to finish fastening insulation installation. Weld nails are usually used
shipping industry.
| Product Name | Galvanzied capacitor discharge(CD)stud weld insulation pin |
| Material | stainless steel, aluminum, mild steel |
| Color | nickel white, copper color |
| Surface treatment | Galvanized and Copper plating are available for Low Carbon Steel. |
| Used | shipping industry |

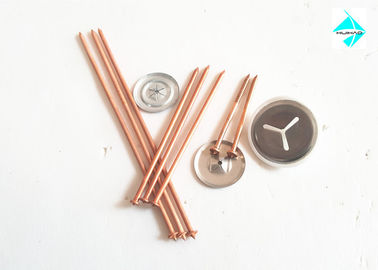

| Accessories | Self locking washer ,dome cap washer ,speed clips ,PE dome cap with metal washer |

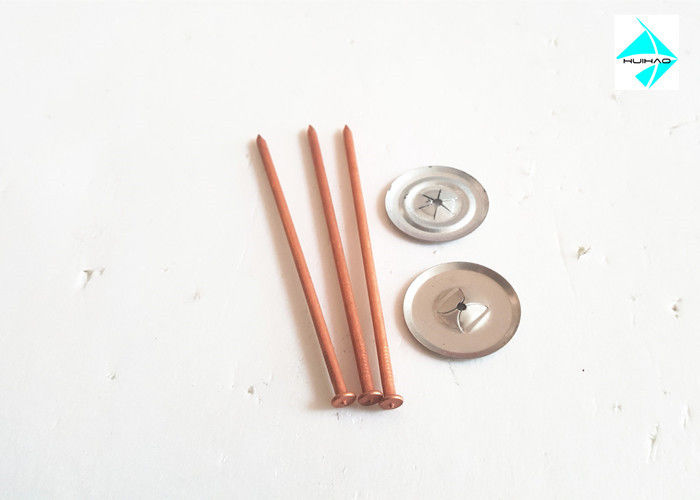

Capacitor Discharge Weld Pins are used for attaching insulation to various metals, with the use of a
CD welder. After the pin is welded in place, the insulation is impaled on the pin and secured with a

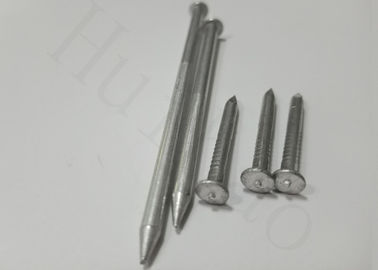

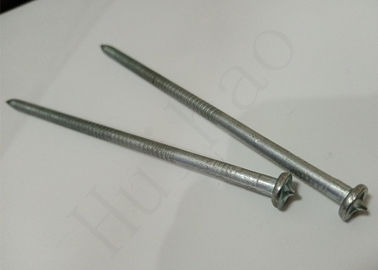

self-locking washer. Mild Steel, with galvanized coatingStainless Steel Type 302HQ (Type 310 & 316L
as special order) Aluminum Type 1100-H14 3mm (.118) Dia Mild Steel available as special order
Capacitor Discharge Weld Pins Other specifications:Length of this style pin should exceed the thickness
of the insulation, in order to securely attach the self-locking washer.
Nail point is standard - available with "blunt end" as special order.
Capacitor Discharge Weld Pins simplify the permanent attachment of insulation to just about any kind
of construction metal surface. They can be applied quickly and easily using standard CD or Arc stud
welding equipment.
Capacitor Discharge Weld Pins are available in different styles to cover a wide variety of applications.
Some factors to consider regarding the pin style needed for your job would be the base metal type size
and surface condition, and also the welding equipment to be used.
Capacitor Discharge Weld Pins1.500pcs per bags, 10 bags per carton. if the length too long, we will be
according your requirements to pack.
| Package of the copper coating weld pins | ||||
| term | length | width | height | loading |
| carton size | 28cm | 20cm | 25cm | 3000pcs |
| pallet | 1120mm | 1000mm | 1100mm | 100 cartons |
| 20ft container | 18 pallets | 40ft container | 36 pallets | |
