Product Details:
|
| Product Name: | Cup Head Weld Pin | Material: | Stainless Steel ,carbon Steel |
|---|---|---|---|
| Surface Treatment: | Galvanized ,zinc Coated ,polish | Head Dimeter: | 25mm 30mm 35mm |
| Pin Diameter: | 2.7mm ,3mm | Pin Length: | 25-150mm |
| Application: | Air Conditioning | Sample: | Support |
| Highlight: | 150mm Insulation Weld Pins,Cup Head Insulation Weld Pins,Air Conditioning insulation weld pins |
||
This type of Capacitor Discharge (CD) pin is welded through the insulation, allowing the fabrication
to be done in one easy step. The head of the pin is attached to the nail, so there is no need to add
a washer.Reduced labor time - Neat, finished appearance
Available as Mini-Cup (MC) or Full-Size Cupped Head (CH) Style, with a beveled head.Flat head
available as a special order.
Pins are also available "insulated" for welding through foil-faced materials to prevent arcing on the
foil facia.Longer lengths available as special order.Length of pin to be used is determined by the
thickness, density & composition of the insulation being installed.
Material:Galvanized steel,Stainless steel available on special order
| common size of duct liner Cupped Head Weld Pins | ||||
| Cupped Head Weld Pins diameter | Base size | Length | Material | Finished |
| 2.7mm | 25mm, 30mm | 15-250mm | Mild steel ,stainless steel copper | Zinc/copper plating |
| 3mm | 25mm, 30mm | 15-250mm | ||
| 3.4mm | 25mm, 30mm | 15-250mm | ||

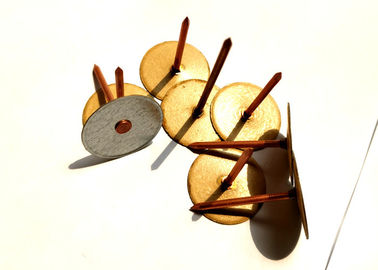

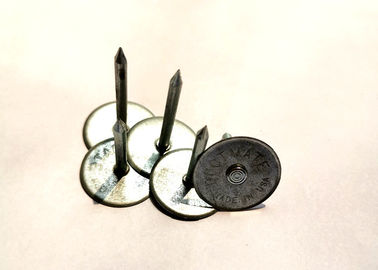

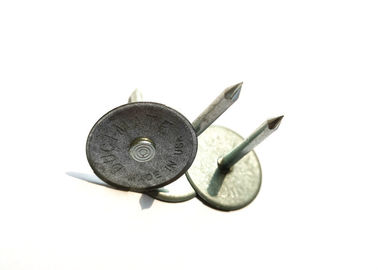

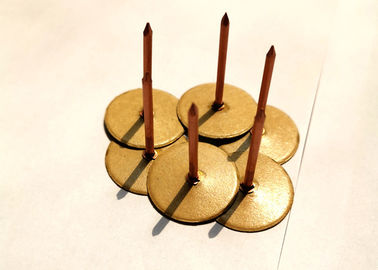

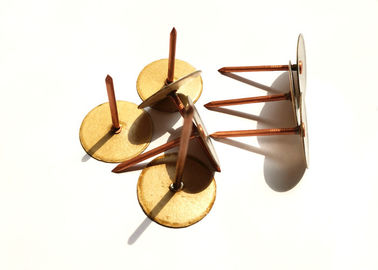

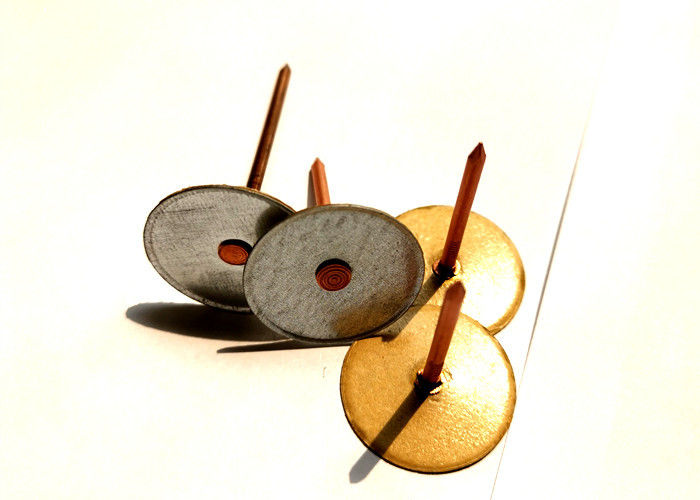

| features of Bevel Edge Cup Head Insulation Weld Pins | |
| BETTER PLATING | weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Quilting Cup Head Insulation Pins are copper plated. |
| REDUCED DOWN TIME | Consistent point quality reduces frequency of machine adjustments. |
| STRONGER WELDS | Hardened steel point assures positive electrical contact for complete sheet to pin fusion. |
| CORROSION RESISTANCE | Plating exceeds current SMACNA standards for corrosion resistance. |
| TEMPERATURE RANGE | Quilting Cup Head Insulation Pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C. |
| VIBRATIONS | Quilting Cup Head Insulation Pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems. |
Recommended assembly method:
1.Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter.
2.Remove the protective release paper taking care not to touch the adhesive.
3.Place the hanger in the required position and press the base against the surface to be insulated
4.Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength of
adherence is achieved after 24 hours
Package : usually the package is 800/1000/1500 /2000/3000/5000 pcs in carton on pallet
800/1000/15000/2000 in a drum on the pallet
Delivery :for big you choose by sea
for small order or agercy order ,you can choose express by DHL,Fedex ,UPS ,ect
we can also supply door to door service by sea ,by air
