Anti Skid Serrated Walkway Punched Aluminum Grip Strut

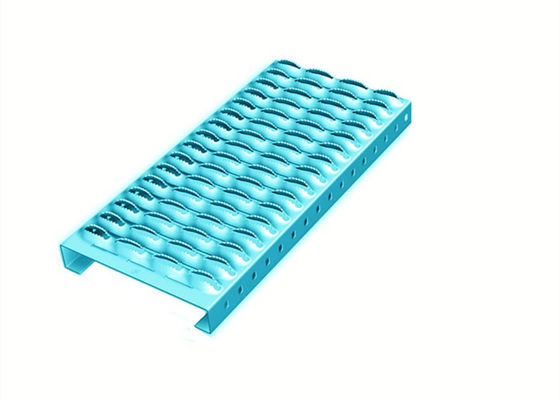

Large Image : Anti Skid Serrated Walkway Punched Aluminum Grip Strut

Product Details:

Place of Origin:	China
Brand Name:	huihao
Certification:	ISO9001-2015
Model Number:	HH- STAIR

Payment & Shipping Terms:

Minimum Order Quantity:	30
Packaging Details:	pallet or case
Delivery Time:	7 work days
Payment Terms:	L/C, T/T
Supply Ability:	3000 pcs per month

Contact Now

Anti Skid Serrated Walkway Punched Aluminum Grip Strut

Description

Name:	Anti Skid Serrated Walkway Grip Strut	Material:	Aluminum Alloy, GS, SS
Thickness:	2mm, 2.5mm, 3mm	Height:	50mm, 75mm, 100mm
Aperture:	75mmx30mm	Width:	300mm-800mm
Length:	Less Than 6000mm	Color:	Support
Highlight:	punched aluminum grip strut , walkway aluminum grip strut , serrated aluminum grip strut

Punched Aluminum Anti Skid Serrated Walkway Grip Strut By Huihao Custom Design

Specification Punched Aluminum Anti Skid Serrated Walkway Grip Strut By Huihao Custom Design

material	thickness	max length	standard grating width	standard height
galvanized steel	2.0mm, 2.5mm, 3mm,3.5mm	6000mm	300mm-800mm	50mm, 75mm, 100mm
stainless steel	2.0mm, 2.5mm	6000mm	300mm-800mm	50mm, 75mm, 100mm
aluminum alloy 5754	2.0mm, 2.5mm,3mm	6000mm	300mm-800mm	50mm, 75mm, 100mm

drawing design of Punched Aluminum Anti Skid Serrated Walkway Grip Strut By Huihao Custom Design

hole arranged of Punched Aluminum Anti Skid Serrated Walkway Grip Strut By Huihao Custom Design

2 Diamond / 9-1/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
2 Diamonds	9-1/4	2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	9-1/4	2-1/2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	9-1/4	3	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	9-1/4	4	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)

3 Diamond / 13-3/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
3 diamonds	13-3/4	2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	13-3/4	2-1/2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	13-3/4	3	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	13-3/4	4	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)

5 Diamond / 23-1/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
5 diamonds	23-1/4	2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	23-1/4	2-1/2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	23-1/4	3	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	23-1/4	4	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)

6 Diamond / 27-3/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
6 diamonds	27-3/4	2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	27-3/4	2-1/2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	27-3/4	3	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	27-3/4	4	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)

8 Diamond / 36" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
8 diamonds	36	1-1/2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	36	2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	36	2-1/2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	36	3	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)

weight of Punched Aluminum Anti Skid Serrated Walkway Grip Strut By Huihao Custom Design

weight per meter of Huihao Anti-slip Gratings
material	stainless steel			galvanized steel			aluminum alloy 5754
thickness	2mm			2.5mm			3.0mm
	height			height			height
standard width	50mm	75mm	100mm	50mm	75mm	100mm	50mm	75mm	100mm
300mm	6.2kg	7.0kg	7.8kg	7.7kg	8.7kg	9.7kg	3.1kg	3.6kg	4kg
400mm	7.6kg	8.4kg	9.2kg	9.4kg	10.4kg	11.4kg	3.8kg	4.2kg	4.7kg
500mm	8.9kg	9.7kg	10.5kg	11kg	12kg	13kg	4.5kg	4.9kg	5.3kg
600mm	10.3kg	11.1kg	11.9kg	12.7kg	13.7kg	14.7kg	5.2kg	5.6kg	6.0kg
700mm	11.6kg	12.4kg	13.2kg	14.4kg	15.4kg	16.4kg	5.9kg	6.3kg	6.7kg
800mm	12.9kg	13.7kg	14.5kg	16.1kg	17.1kg	18.1kg	6.6kg	7.0kg	7.4kg
