Product Details:
|
| Product Name: | CD Weld Bi-metallic Pins | Type: | Weld |
|---|---|---|---|
| Diameter: | 2.7mm,3.0mm | Base Material: | Aluminum |
| Pin Material: | Stainless Steel ,galvanized | Pin Length: | As Requirement |
| Surface Treatment: | Copper Plated, Zinc Coated | ||
| Highlight: | bimetallic insulation stick pins,3mm diameter insulation stick pins,3mm dia insulation pins and washers |
||
--------------------------------------------------------------------------------------------------------------------------------------------

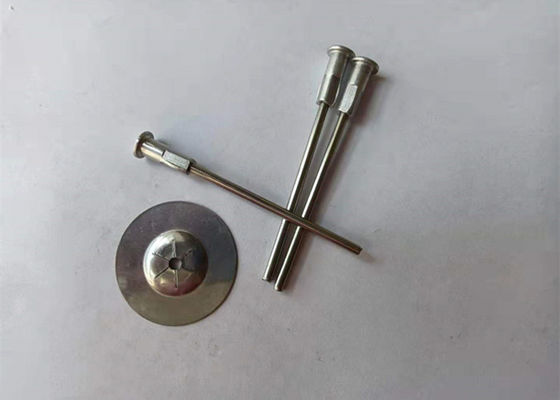

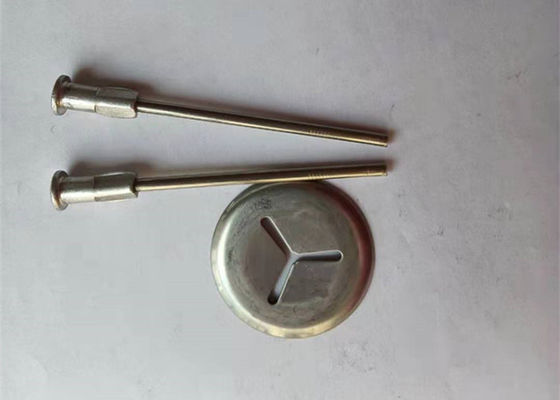

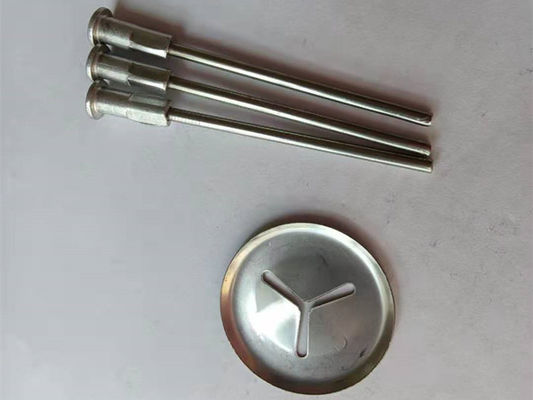

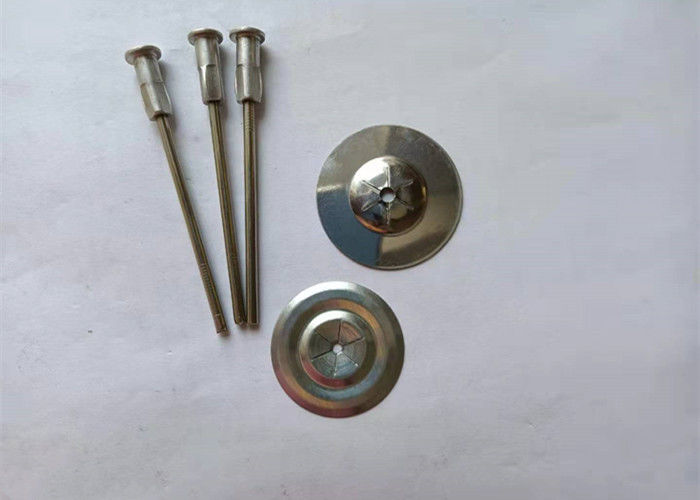

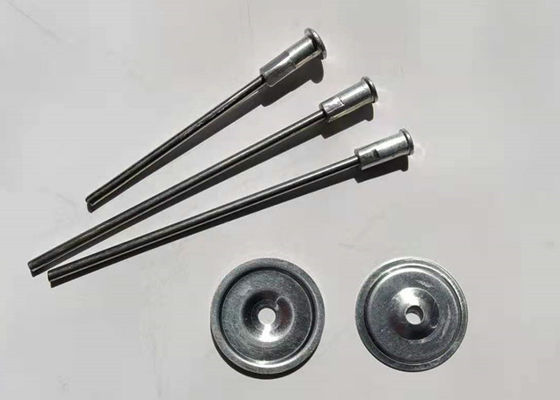

Product name:aluminum base bi-metallic insulation weld pins
Material: Low Carbon Steel, material specifications or certification available.
Finish: Mild Steel pins are galvanized/coated, washer is galvanized.
Compatibility : All pins are compatible and recommended for use with all brands of CD stud welding
equipment.
CD Weld Type Bi-metallic Pins are also available "insulated" for welding through foil-faced materials to
prevent arcing on the foil facia.
Longer lengths available as special order.Length of pin to be used is determined by the thickness,
density & composition of the insulation being installed.
| Pin Material | Base matetial | Base Size | pin diameter | Length | Pin end type |
| Galvanized steel | aluminum alloy | 6mmx15mm | 2.7mm,3mm | 15mm-150mm | flat type or sharp type |
| Copper coated | aluminum alloy | 6mmx15mm | 2.7mm,3mm | 15mm-150mm | |
| stainless steel | aluminum alloy | 6mmx15mm | 2.7mm,3mm | 15mm-150mm | |
| Accessories :Self locking washer, speed clips ,metal dome cap washer ,PE dome cap with metal washer | |||||
| Technical data | Features |
|
Pin material :copper plated steel /zinc coated steel /SS Pin diameter :3mm,4mm,5mm,6mm Pin length:25-300mm Base material :Aluminum alloy 5056 Base size :6mmx15mm Flange width:8mm |
High welding quality Easy to weld Quick mounting Install-able in all positions Fire-resistant |
usually 100 pcs ,200 pcs ,300pcs ,500 pcs in one plastic bag (according the pin length ),the in one
carton box ,then in one pallet ,the package can be can according your request
