Product Details:
|
| Name: | Aluminum J Hook Bird Guard | Sample: | Sample Is Free |
|---|---|---|---|
| Pin Diameter: | 2.4mm | Pin Length: | 95mm |
| Washer Size: | 40mm | Pin Material: | Aluminum Or Stainless Steel |
| Washer Material: | Aluminum Alloy | Application: | For Fix Solar Panel Mesh |
| Highlight: | phosphating solar panel hook,odm solar panel hook,phosphating solar tile roof hook |
||

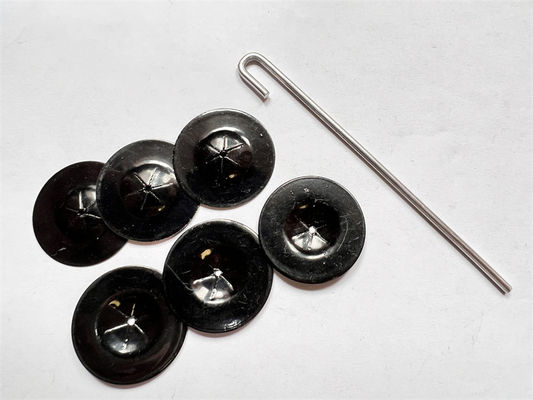

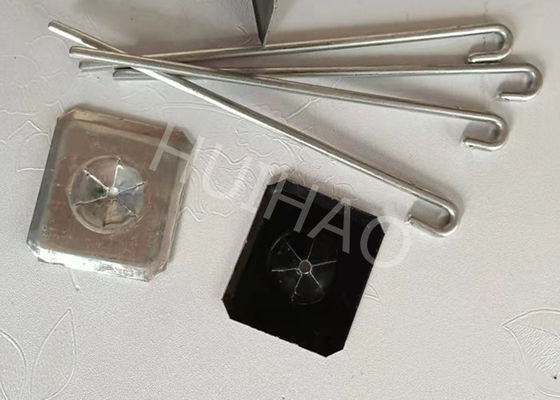

Guard fastener aluminum clips are including aluminum j hook and aluminum washer ,the J hooks could
be Aluminum material and stainless steel material. the square washers is in aluminum material.
They could fix the wire mesh of solar panels ,then it the mesh could keep the birds away for the solar panels.
The aluminum washer is coated with a proprietary black paint that resists fading from UV exposure, so these
clips will stay looking just as good as your system.
|
J hooks Material |
Aluminum or stainless steel |
|
Size of the J hooks |
2.5mm *95mm |
|
Washers material |
Aluminum |
|
washer style |
round, rectangle ,oval |
|
Material |
aluminum and aluminum alloy
|
Stainless steel |
|
J hook size in common: |
2.5mmx95mm |
2.5mmx95mm |
|
Surface treatment |
phosphating |
Polish |
|

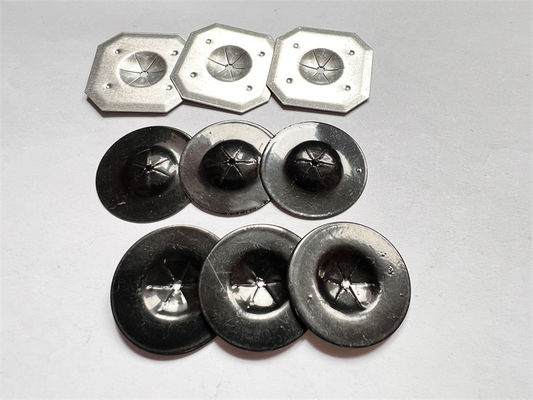

Solar panel clips including |
J hook nails and self locking washers |
|
|
Self locking washer size: |
29mmx31mm, 30mmx30mm, 30mmx60mm |
|
|
Calculating the necessary number of clips: Use 2 clips for the short side of every exposed edge of a panel and 3 clips for the long side of every exposed edge of a panel. |
||
|
Feature of Aluminum J hook bird guard:
1: Does not violate panel integrity.
2: It can easily be trimmed or bent after assembly.
3: Install and remove quickly and easily
4: The specification can be customized
5: The clips are sold separately or with the solar panel mesh
|
J Hooks Package |
Self Locking Washer Package |
|
1. 100 pcs per pp bag, 80 bags per carton 2. 500pcs per pp bag, 16bags per carton 3.1000pcs per pp bag, 8 bags per carton Carton size: 41 cm x 28 cm x17 cm
|
1.100 pcs per pp bag, 60 bags per carton 2. 500pcs per pp bag, 12bags per carton 3.1000pcs per pp bag, 6 bags per carton Carton size: 41 cm x 28 cm x17 cm
|
