40mm Square Iso Perforated Base Insulation Hanger Fixing Stone Wool Panel

40mm Square Iso Perforated Base Insulation Hanger Fixing Stone Wool Panel
40mm Square Iso Perforated Base Insulation Hanger Fixing Stone Wool Panel
40mm Square Iso Perforated Base Insulation Hanger Fixing Stone Wool Panel 40mm Square Iso Perforated Base Insulation Hanger Fixing Stone Wool Panel 40mm Square Iso Perforated Base Insulation Hanger Fixing Stone Wool Panel 40mm Square Iso Perforated Base Insulation Hanger Fixing Stone Wool Panel 40mm Square Iso Perforated Base Insulation Hanger Fixing Stone Wool Panel

Large Image :  40mm Square Iso Perforated Base Insulation Hanger Fixing Stone Wool Panel

Product Details:
Place of Origin: China
Brand Name: HUIHAOCUSTOM
Certification: ISO
Model Number: PERFORATED BASE PIN
Payment & Shipping Terms:
Minimum Order Quantity: 10000
Packaging Details: 500 pcs perforated base insulation hangers per carton.
Delivery Time: 8 work days
Payment Terms: L/C, T/T
Supply Ability: 380000 pcs per month
Contact Now

40mm Square Iso Perforated Base Insulation Hanger Fixing Stone Wool Panel

Description
Name: Perforated Base Insulation Hanger Base Size: 40 Mm X 40mm
Pin Diameter: 12ga In Common Pin Length: 15mm, 25mm, 38mm, 45mm, 50mm
Type: Accessories Material: Galvanized Steel
Finish: Zinc Plated Port: Tianjin
Highlight:

40mm perforated base insulation hanger

,

40mm perforated insulation hangers

,

iso perforated base insulation hanger



40 Mm Square Perforated Base Insulation Hanger For Fixing Stone Wool Panel



Quick details of the perforated base insulation hanger



  • pin diameter: 12 ga ( 2.67 mm ) in standard,  2.5mm , 3 mm and 3.4mm in common.
  • pin material: annealing steel wire in standard, aluminum wire and stainless steel wire are available.
  • base size: 2" in standard, 40 mm  and 25mm are available.
  • base material: hardness mild steel and hardness stainless steel sheet.
  • finished: zinc coated or copper coated for mild steel pin, polished for stainless steel pin.



Specification details of perforated base insulation hangers

Part NO. MATERIAL DESCRIPTION SPECIFICATIONS SPINDLE DIAMETER
per-hh-15 Galvanised mild steel (PIN PERF.MS) Stainless steel (PIN PERF.SS) Aluminium (PIN PERF.AL) 15 mm spindle length 2.5 mm in common
per-hh-25 25 mm spindle length
per-hh-38 38mm spindle length
per-hh-40 40mm spindle length


features of pereforated base insulation hanger



  • perforated base insulation hangers has anti-temperature sudden change, cold resistance and heat resistance;
  • High bearing capacity, high pressure bearing and good tensile performance;
  • the hanger is easy to install, no special installation tools are required;
  • perforated base insulation hangers is not easy to deform, moisture, vibration, and good thermal properties after loading.

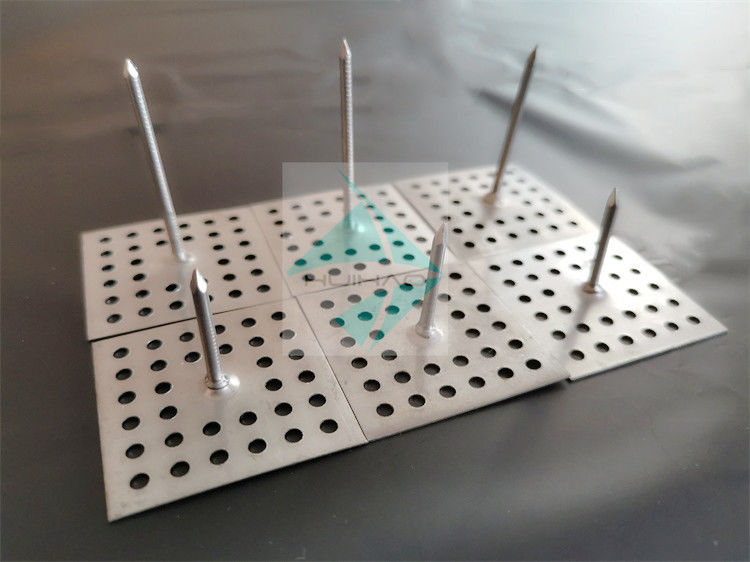

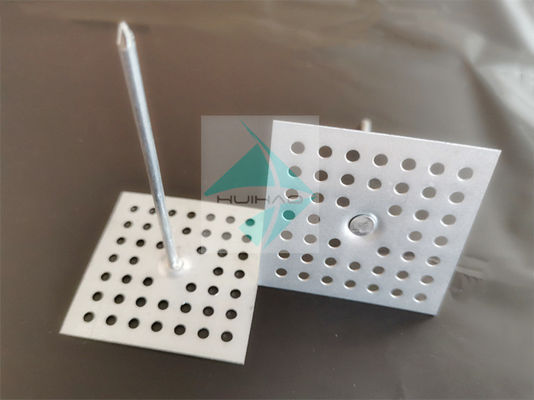

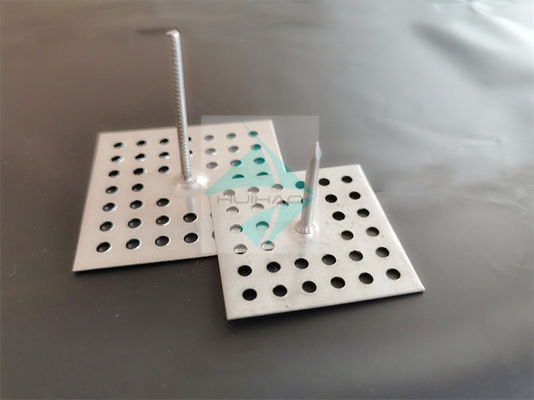

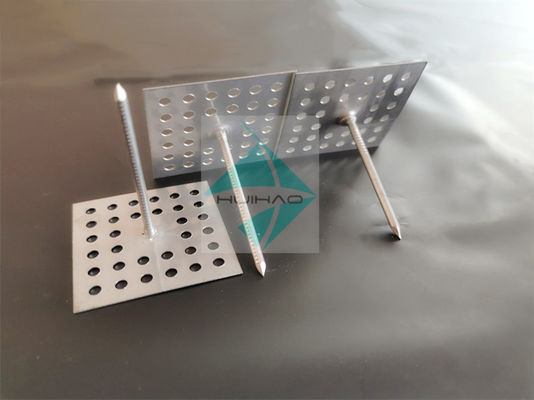

Image details of perforated base insulation hangers



40mm Square Iso Perforated Base Insulation Hanger Fixing Stone Wool Panel 0



Installation parts- self locking washer and dome caps

40mm Square Iso Perforated Base Insulation Hanger Fixing Stone Wool Panel 1



Huihao company



40mm Square Iso Perforated Base Insulation Hanger Fixing Stone Wool Panel 2

40mm Square Iso Perforated Base Insulation Hanger Fixing Stone Wool Panel 3













Tag:

rockwool insulation pins,

duct insulation pins,

insulation anchors
