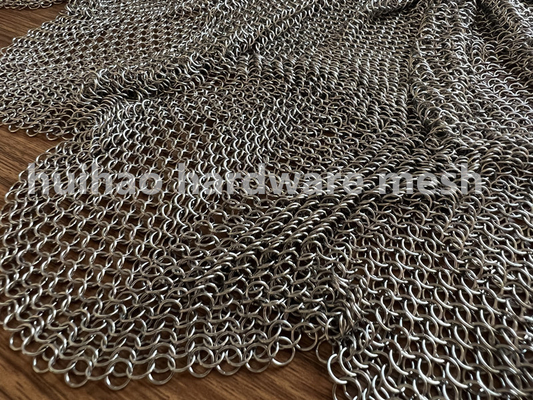

Product Details:
|
| Name: | Stainless Steel Chain Mail Ring Metal Mesh Drapery | Material: | SUS304 / SUS316 |
|---|---|---|---|
| Color Finished: | Silver Coated | Weight: | Light Weight ( 3.2 Kgs- 6kgs / M2 ) |
| Loading Weight: | Less Than 48kgs | Ring Type: | Weld Round Rings |
| Feature: | Corrosion Resistance,beautiful And Elegant Appearance,Aesthetic Appeal;Versatile | Manufacturer: | Anping Huihao Hardware Mesh |
| Highlight: | 304 stainless steel metal mesh drapery,chain mail ring metal mesh drapery,decoration drivider metal mesh drapery |
||
HUIHAO factory manufacture chainmail ring metal mesh drapery and support design services. including:
pattern design:we can be your decorative ideas to design different patterns for decorating the drapery.For example: pattern stitching
custom colors: most popular colors include gold, silver, bronze in market. other colors can be customization.
ring size: the ring size is from 3.81mm to 30mm in common. others can be customization
ring type: weld cloded round ring , open round ring, flat wire rings
connect type: chainmail weave type, S hook type and small rings connect type.
instllation system design: we can be the application to design different installation system to ensure stength and decoration.
Quick details of Stainless Steel Chain Mail Ring Metal Mesh Drapery
material of chainmail ring metal mesh drapery: stainless steel, mild steel , copper and brass
wire diameter:0.53mm- 3mm in common.
ring size in common:3.81mm, 7mm, 8mm, 10mm, 12mm, 13mm, 15mm, 18mm, 20mm in common.
| Part No. | TYPE |
MATERIAL
|
WIRE DIAMETER | OUTER DIAMETER | WEIGHT/M2 |
| HH-SS-053 | WELD | Stainless steel | 0.53MM | 3.81MM | 3.2kgs |
| HH-SS-080 | WELD | Stainless steel |
0.80MM
|
7.00MM | 3.3kgs |
| HH-SS-100 | NON-WELDING | Stainless steel | 1.00MM | 8.00MM | 4.7kgs |
| HH-MS-100 | NON-WELDING | Mild steel | 1.00MM | 8.00MM | 4.6kgs |
| HH-SS-120 | NON-WELDING | Stainless steel | 1.20MM | 10.00MM | 4.8kgs |
| HH-CO-120 | NON-WELDING | Copper / brass | 1.20MM | 10.00MM | 5.5kgs |
| HH-SS-150 | WELD | Stainless steel | 1.5MM | 15.00MM | 4.8kgs |
| HH-SS-150 | NON-WELDING | Stainless steel | 1.5MM | 15.00MM | 4.8kgs |
| HH-CO-150 | WELD | Copper / brass | 1.5MM | 15.00MM | 5.5kgs |
| HH-CO-150 | NON-WELDING | Copper / brass | 1.5MM | 15.00MM | 5.5kgs |
| HH-SS-200 | WELD | Stainless steel | 2.0MM | 20.00MM | 6.8kgs |
| HH-SS-200 | NON-WELDING | Stainless steel | 2.0MM | 20.00MM | 6.8kgs |
| HH-CO-200 | WELD | Copper / brass | 2.0MM | 20.00MM | 7.8kgs |
weld ring metal mesh drapery is suitable for decoration super large wall, window and facade .
non-welding rings metal mesh drapery is suitable for light weight curtain., fireplace curtain, tube cover, light decoration.
