185KW Pet Bottle Washing Line Recycling Plant PLC 300kg/H NSK SKF

Large Image : 185KW Pet Bottle Washing Line Recycling Plant PLC 300kg/H NSK SKF

Product Details:

Place of Origin:	China
Brand Name:	HUIHAOCUSTOM
Certification:	ISO9001-2015
Model Number:	hh500-5000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	usd50000
Packaging Details:	Stretch film and wooden case as international sea shipment standards for PET recycling machine
Delivery Time:	10 work days
Payment Terms:	L/C, T/T
Supply Ability:	10 sets

Contact Now

185KW Pet Bottle Washing Line Recycling Plant PLC 300kg/H NSK SKF

Description

Machine Type:	PET Bottle Washing Line	Application:	PET Recycling
Volatge:	380V 50HZ 3P Or Customized For Customer	Power (kW):	185-1000
Production Capacity (kg/h):	300-5000	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear
Motor Brand:	Siemens	Bearing Brand:	NSK Or SKF
Hot Washing:	By Electric Or Steam	Final Flakes Size:	12-16mm
Highlight:	185KW Pet Bottle Washing Line , PLC Pet Bottle Washing Line , 300kg/H Plastic Recycling Machine

Waste Pet Bottle Washing Line Recycling Plant Plastic Recycling Machine

HH-series plastic bottle recycling machine

it will be used to recycle pet bottle, water bottle, Sprite bottle, cola bottle, juice bottle, pet sheet, pet packing container, pet strap,pet film and so on.

According to the final usage of PET flakes, We supply 3 grade bottle flakes :

- Bottle to bottle grade, Food Standard - Yarn/filament grade - conventional grade

New R-Pet flakes Application:

New flakes can be make 2-d or 3-d pet fiber,filament yarn,pet strap,pet sheet ,pet film etc.

Specification details of Waste Pet Bottle Washing Line Recycling Plant Plastic Recycling Machine

Model	Capacity	Installed Power	Steam Use	Water Supply	Manpower	Area Required
HH-500	500 kg/hr	190 KW	Optional	4-5 m3/hr	4-6 Person	6055 m
HH-1000	1000 kg/hr	260 KW	Optional	6-8 m3/hr	8-10 Person	8085 m
HH-2000	2000 kg/hr	400 KW	Suggest Use	10-15 m3/hr	10-12 Person	8085 m
HH-3000	3000 kg/hr	600 KW	80,000 Kcal	20-30 m3/hr	12-16 Person	100810 m
HH-4000	4000 kg/hr	800 KW	100,000 Kcal	30-40 m3/hr	15-20 Person	1351010 m
HH-5000	5000 kg/hr	1000 KW	120,000 Kcal	40-50 m3/hr	15-20 Person	1351010 m

Image details of Waste Pet Bottle Washing Line Recycling Plant Plastic Recycling Machine

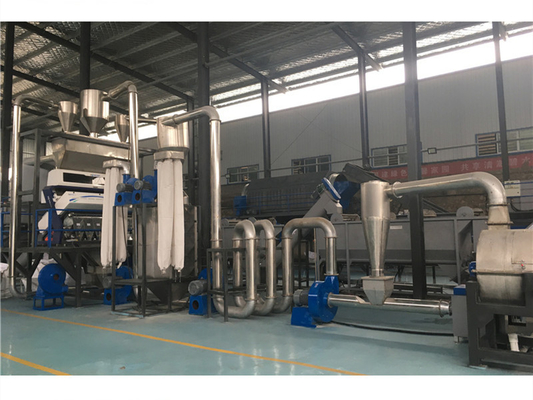

HH-500 PET recycling washing line machine

185KW Pet Bottle Washing Line Recycling Plant PLC 300kg/H NSK SKF 0

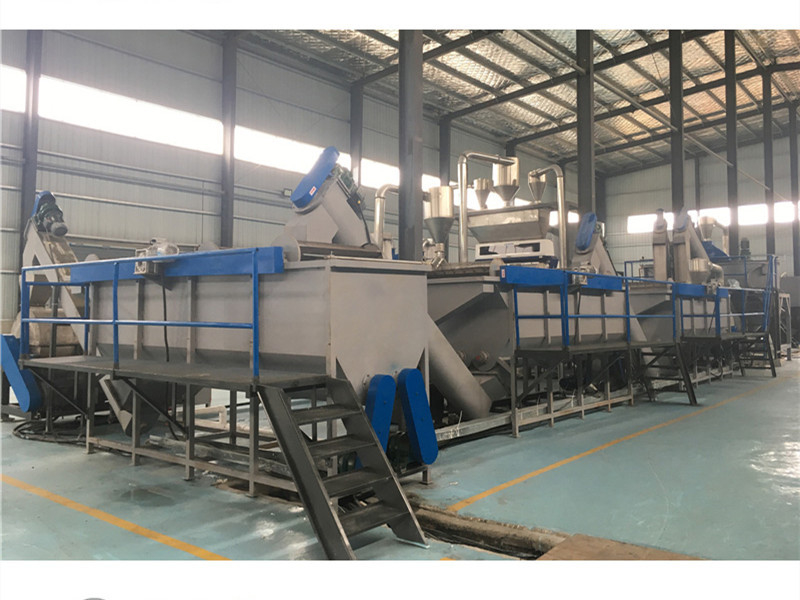

HH-1000 PET bottle recycling washing machine

185KW Pet Bottle Washing Line Recycling Plant PLC 300kg/H NSK SKF 1

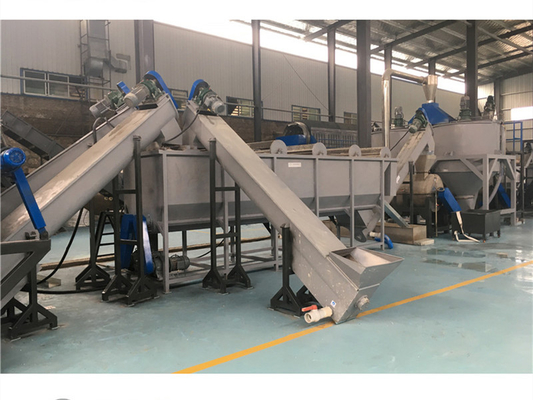

HH-2000 PET bottle recycling washing machine

185KW Pet Bottle Washing Line Recycling Plant PLC 300kg/H NSK SKF 2

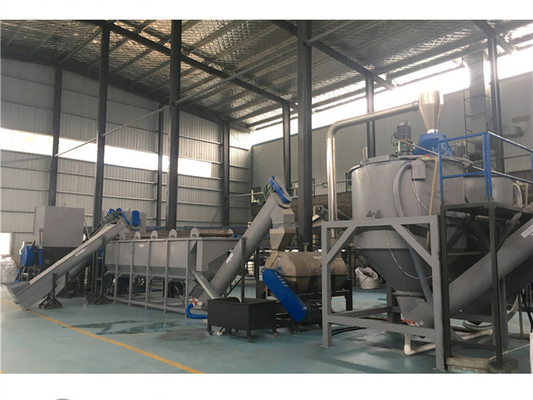

HH-3000 PET bottle recycling washing machine

185KW Pet Bottle Washing Line Recycling Plant PLC 300kg/H NSK SKF 3

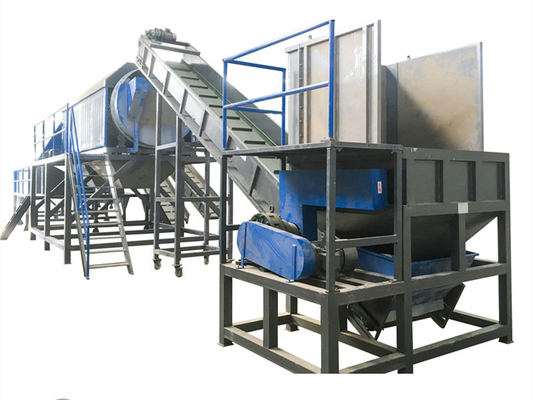

HH-4000 PET bottle recycling washing machine

185KW Pet Bottle Washing Line Recycling Plant PLC 300kg/H NSK SKF 4

HH-5000 PET bottle recycling washing machine

185KW Pet Bottle Washing Line Recycling Plant PLC 300kg/H NSK SKF 5

washing line recycling plant include equipments- details

Label Remover Machine

it use to remove the labels from the bottle and separate label out

Rotary Blade made by germany import alloyed steel making for long time using,

The barrel designed with doors opening on it very easy to opening and maintenance

Bottom design with holes to drain out liquid which contained in the bottles

185KW Pet Bottle Washing Line Recycling Plant PLC 300kg/H NSK SKF 6

Crusher Machine

crushing the bottles to PET flakes,water pre-washing the dirty flakes ,cooling the blade

by 0.75kw motor open the chamber,it is easy for worker change the blade

Use D-2 blade for higher HRC,long time using (25-30 times grinder than other material),

we also can use DC-53 mateial,but the cost more higher

Bearing house is outside of the crusher chamber so no dirty goes inside for longer use.

Hot Washing Tank

with hot water washing to remove oil/glue and other dirty from the flakes.

The tank made with insulation layer to save energy.

Feeding caustic soda/detergent to washing Its better Heating by steam

“Zig-zag” label separator

The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content. Blower can be adjusted by invertor,With invertor to control the air flux of blower. Zig zag main chamber one set made by stainless steel,Chamber with plexiglass window to open and check inside

185KW Pet Bottle Washing Line Recycling Plant PLC 300kg/H NSK SKF 10

HUIHAO SERVICES

Service Before Sale

1. 24 hours online. Your inquiry will be quick reply by email. Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )

2. Professionally and patiently introduction, details pictures and working video to show machine

Service On Sale

1. Test every machine and inspect the machine seriously.

2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.

3. Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.

Service After Sale

1. Free insurance for goods

2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
