Product Details:
|
| Name: | Stainless Steel Lacing Anchors | Head: | 22mm 30mm 20x25mm |
|---|---|---|---|
| Material: | Stainless Steel, | Head Thickness: | 1mm |
| Application: | To Fix Insulation Blanket | Pin Diameter: | 12ga Or 14ga Or As Standard |
| Customization: | Supported | Length: | 2-1/2" Or 4-1/2" Or As Standard |
| Highlight: | Stainless Steel Lacing Anchors,14 Gauge Stainless Steel Lacing Anchors,Stainless Steel Lacing Anchors For Removable Blanket |
||

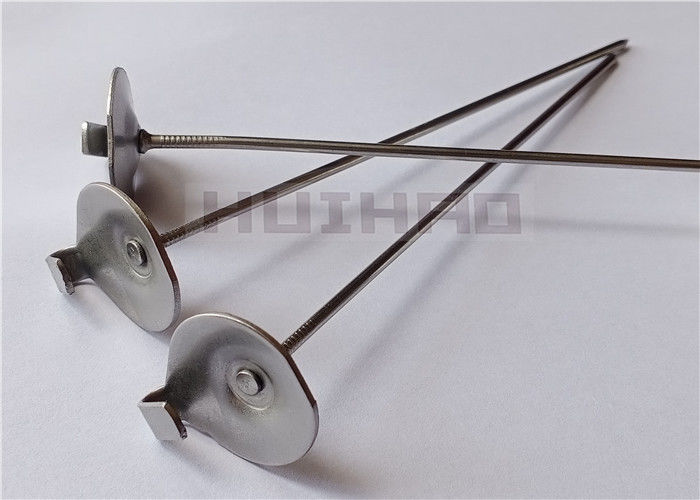

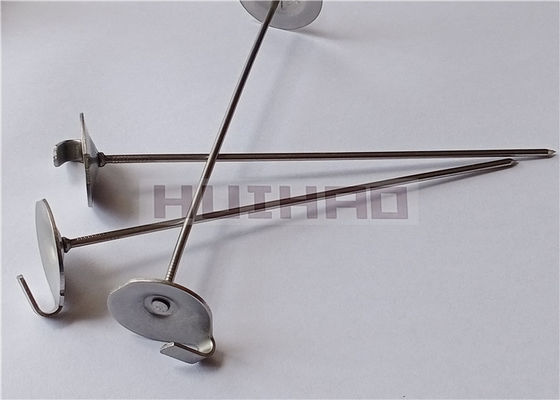

Stainless steel lacing anchors are widely used to secure the removable and reusable
insulation blankets, covers, joints.
* Stainless steel is a popular material while this type lacing anchors is also made in mild steel
* Stamped "no ab" to denote 'no asbestos'
 |
Item: Mini round head stainless steel lacing anchors Material: stainless steel Head Diameter: 7/8", 22mm Head Thickness: 1.0mm Pin Diameter: 12Gauge, 2.7mm 14Gauge, 2.0mm Pin Length: 2-1/2", 63.5mm 4-1/2", 114mm Hook Size: 5x11mm Special Size: could be customized
|
|
Item: Round head stainless steel lacing anchors Material: stainless steel Head Diameter: 30mm Head Thickness: 1.3mm Pin Diameter: 12Gauge, 2.7mm 14Gauge, 2.0mm 11Gauge, 3mm Pin Length: 2-1/2", 63.5mm 4-1/2", 114mm Hook Size: 5x11mm Special Size: could be customized |
|
Item: Rectangle head stainless steel lacing anchors Material: stainless steel Head Diameter: 20x25mm Head Thickness: 1.0mm Pin Diameter: 12Gauge, 2.7mm 14Gauge, 2.0mm Pin Length: 2-1/2", 63.5mm 4-1/2", 114mm Hook Size: 5x11mm Special Size: could be customized |
|
|
Item: Stainless Steel Lacing Hooks With Two Hole Material: Stainless Steel Size: 7/8" / 22mm Thickness: 1.0mm |
|
Item: Stainless Steel Lacing Hooks With One Hole Material: Stainless Steel Size: 7/8" / 22mm Thickness: 1.0mm |
|
Item: Stainless Steel Lacing Washers Material: Stainless Steel Size: 1" / 25mm Thickness: 1.0mm |
|
Item: Stainless Steel Lacing Washers Material: Stainless Steel Size: 1" / 25mm Thickness: 0.4mm |
|
Item: Stainless Steel Lacing Rings Material: Stainless Steel Wire Diameter: 3mm Size: 25x30mm |
|
Item: Stainless Steel Lacing Rings Material: Stainless Steel Wire Diameter: 3mm Size: 30mm |
1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5: install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
|
stainless steel lacing anchors are widely used for fixing: |
|
|
|
250pcs/500pcs/1000pcs per carton according to the insulation pin size,
48 cartons per pallet.
