2.7x25mm Insulation CD Weld Pins Low Carbon Steel For HVAC Sheet Metal Housings

2.7x25mm Insulation CD Weld Pins Low Carbon Steel For HVAC Sheet Metal Housings
2.7x25mm Insulation CD Weld Pins Low Carbon Steel For HVAC Sheet Metal Housings
2.7x25mm Insulation CD Weld Pins Low Carbon Steel For HVAC Sheet Metal Housings 2.7x25mm Insulation CD Weld Pins Low Carbon Steel For HVAC Sheet Metal Housings 2.7x25mm Insulation CD Weld Pins Low Carbon Steel For HVAC Sheet Metal Housings 2.7x25mm Insulation CD Weld Pins Low Carbon Steel For HVAC Sheet Metal Housings

Large Image :  2.7x25mm Insulation CD Weld Pins Low Carbon Steel For HVAC Sheet Metal Housings

Product Details:
Place of Origin: China
Brand Name: Huihao
Certification: ISO 9001
Model Number: Insulation CD Weld Pins
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: pack in carton or bucket per customer requirement 20GP container can pack 3000000PCS 40HQ container can pack 6000000PCS
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union,PAYPAL
Supply Ability: 500000 pcs per 15 days
Contact Now

2.7x25mm Insulation CD Weld Pins Low Carbon Steel For HVAC Sheet Metal Housings

Description
Name: Insulation CD Weld Pins For HVAC Sheet Metal Housings Pin Diameter: 2.7mm / 12GA
Material: Mild Steel Head Diameter: 25mm, 30mm Or 38mm
Pin Surface: Copper Coating Shaft Length: 25-160mm, Could Be Customized
Head Surface: Galvanized Samples: Supported
Highlight:

Insulation CD Weld Pins

,

Carbon Steel CD Weld Pins

,

Carbon Steel Insulation Welding Pins

2.7x25mm Insulation CD Weld Pins Low Carbon Steel For HVAC Sheet Metal Housings

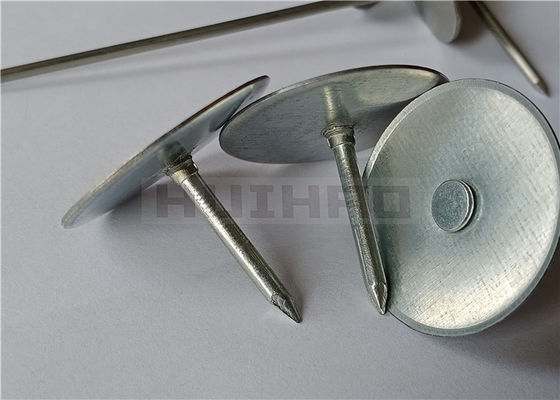

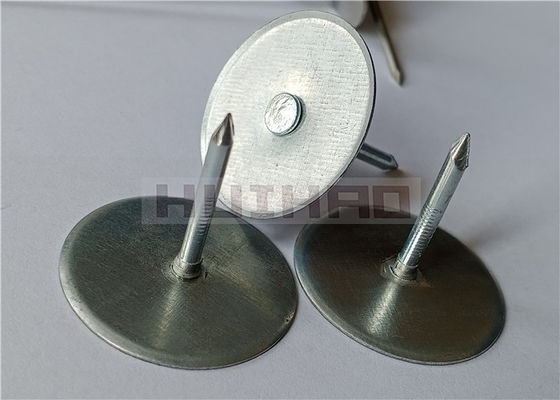

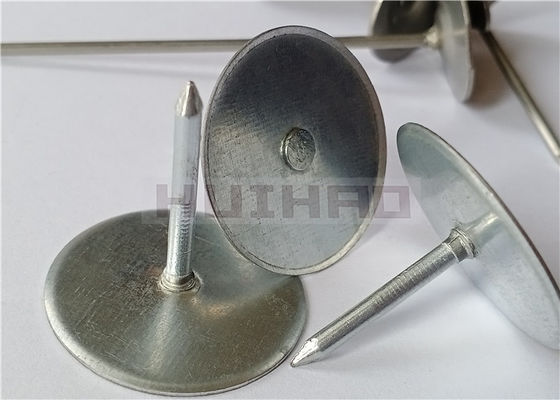

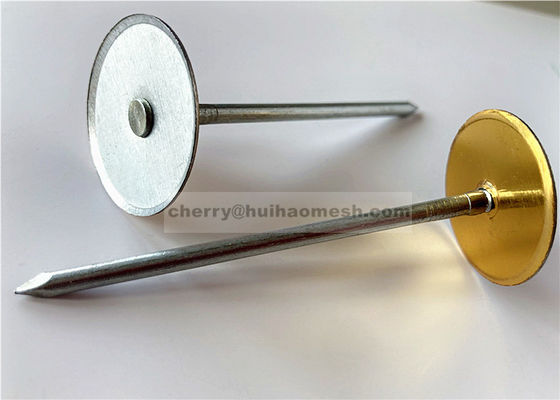

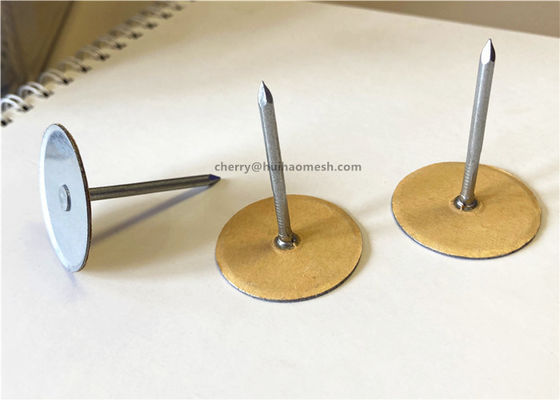

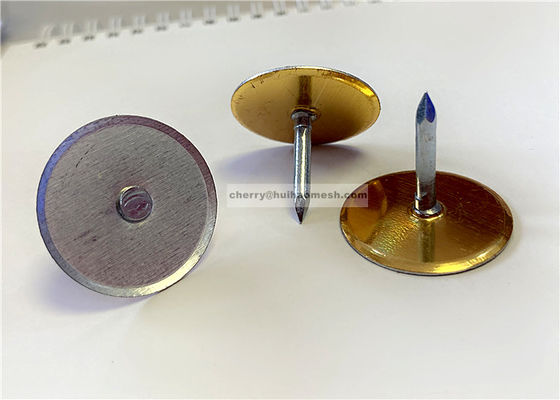

Description Of The Insulation CD Weld Pins



1. Insulation CD Weld Pins are made of low carbon steel with galvanized or copper plated

for standard, stainless steel is available for special order.

2. Insulation CD Weld Pins are assembled with a pin and a washer.

3. For US, Canada, the standard washer diameter is 1.187"(30mm), the pin diameter

is 12GA(2.7mm), the washer can with or without kraft paper. the length from 3/8" to 4-7/8" .

4. For EU countries, the washer diameter is 30mm, 38mm, The pin diameter is

12GA(2.7mm) and 14GA(2.0mm), the washer can be with or without kraft paper, the pin

can be with or without plastic sleeve, the length from 9.5mm to 140mm.

5. We also accept the special order for other lengths.



2.7x25mm Insulation CD Weld Pins Low Carbon Steel For HVAC Sheet Metal Housings 0



Common Length Of The 2.7mm Insulation CD Weld Pins



Material

Length

Pin Diameter

Head Diameter

Galvanized Steel

3/8"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

1/2"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

3/4"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

7/8"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

1"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

1-1/8"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

1-1/4"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

1-1/2"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

1-5/8"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

1-7/8"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

2"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

2-1/8"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

2-1/4"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

2-1/2"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

3"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

3-1/2"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

4"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

4-1/2"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

5"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

5-1/2"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

6"

12Ga (2.7mm)

1-3/16" (30mm)

Galvanized Steel

8"

12Ga (2.7mm)

1-3/16" (30mm)
2.7x25mm Insulation CD Weld Pins Low Carbon Steel For HVAC Sheet Metal Housings 1



Application Of The Insulation CD Weld Pins


1: Position insulation materials
2: Weld the insulation CD weld pins to the sheet of duct work or other HVAC metal housings.
3: insulation materials are fastened



2.7x25mm Insulation CD Weld Pins Low Carbon Steel For HVAC Sheet Metal Housings 2



FAQ Of The Insulation CD Weld Pins



1. Are you manufacture or trader?

  • We are the manufacture and we sell what we make.

2. Do you support product customization?

  • Yes, the material, the size, the length all could be customizied according to your request.

3. Can you accept small orders?

  • Yes, for common size, we could accept small orders.

4. Can i get samples?

  • Yes, for common size, samples for quality confirm is supported in our company.

5. What is your advantages for the insulation CD weld pins?

  • Competitive price: we sale what we manufacture.
  • Excellent quality: we have rich experience, our products are in line with international standard.
  • Good after-sale service: we offer good after-sale service for each order.
  • Our cup head weld pins are consist in price, quality and delivery service.

6. What's the package for the insulation CD weld pins?

  • 1000pcs per carton, 64 cartons per pallet.
  • to be your requirements.
