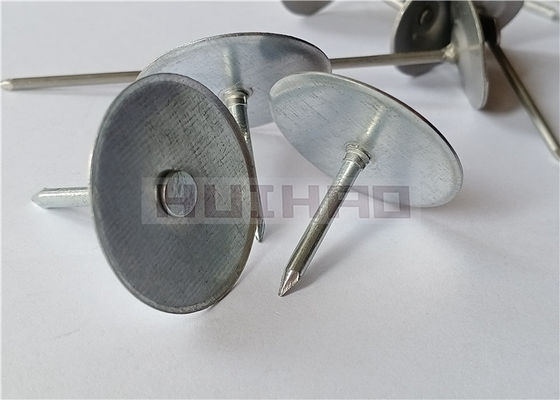

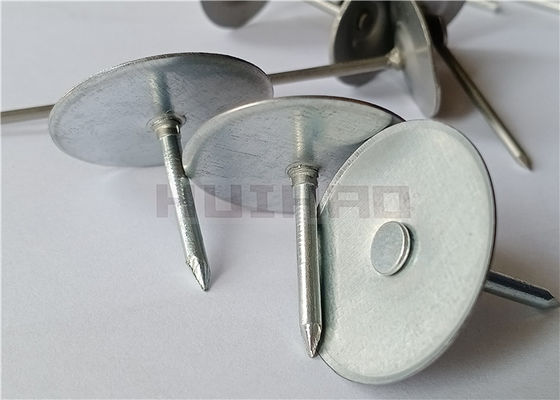

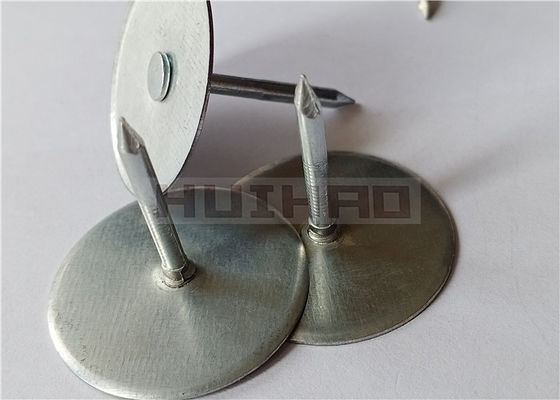

2.7mm Cup Head CD Stud Welder Pins Galvanized Steel To Secure Insulation On Metal Surface

2.7mm Cup Head CD Stud Welder Pins Galvanized Steel To Secure Insulation On Metal Surface
2.7mm Cup Head CD Stud Welder Pins Galvanized Steel To Secure Insulation On Metal Surface
2.7mm Cup Head CD Stud Welder Pins Galvanized Steel To Secure Insulation On Metal Surface 2.7mm Cup Head CD Stud Welder Pins Galvanized Steel To Secure Insulation On Metal Surface 2.7mm Cup Head CD Stud Welder Pins Galvanized Steel To Secure Insulation On Metal Surface 2.7mm Cup Head CD Stud Welder Pins Galvanized Steel To Secure Insulation On Metal Surface

Large Image :  2.7mm Cup Head CD Stud Welder Pins Galvanized Steel To Secure Insulation On Metal Surface

Product Details:
Place of Origin: CHINA
Brand Name: HUIHAO
Certification: ISO9001
Model Number: CD Stud Welder Pins
Payment & Shipping Terms:
Minimum Order Quantity: 20000pcs
Packaging Details: 500pcs per carton or 1000pcs per carton, 48 cartons per pallet, carton size: 28cmx29cmx31cm.
Delivery Time: 15 days after confirm the order
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 300000pcs
Contact Now

2.7mm Cup Head CD Stud Welder Pins Galvanized Steel To Secure Insulation On Metal Surface

Description
Product Name: Cup Head CD Stud Welder Pins Galvanized Steel To Secure Insulation Blankets Material: Mild Steel Or Stainless Steel
Surface Treatment: Galvanized, Copper Coating Head Diameter: 25mm 30mm 38mm
Head Type: Round Head Pin Diameter: 1.8mm 2.0mm 2.7mm 3mm 3.4mm
Usage: Secure Insulation Material To Sheet Metal Pin Length: 3/8" To 16"
Highlight:

Cup Head CD Stud Welder Pins

,

Galvanized Steel CD Stud Welder Pins

,

Galvanized Steel Cup Head Weld Pins

2.7mm Cup Head CD Stud Welder Pins Galvanized Steel To Secure Insulation On Metal Surface



Description Of The Cup Head CD Stud Welder Pins



Cup Head CD Stud Welder Pins directly welded through the insulation to the sheet metals

allowing the fabrication to be done in one easy step. This kind CD Welder Pin itself has

a round washer head, so there is no need to add a washer.





Item Cup Head CD Stud Welder Pins
Brand Huihao Custom
Material Mild steel
Plating Standard is Galvanized Standard Washer is Galvanized

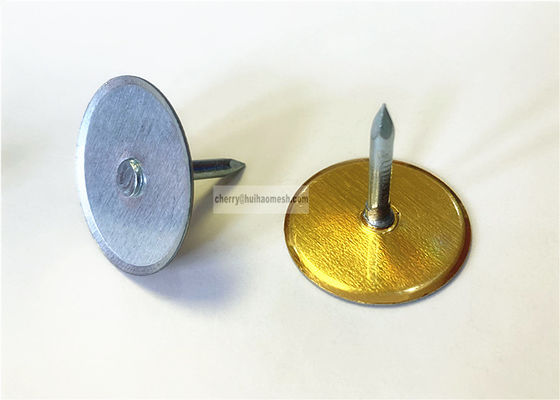

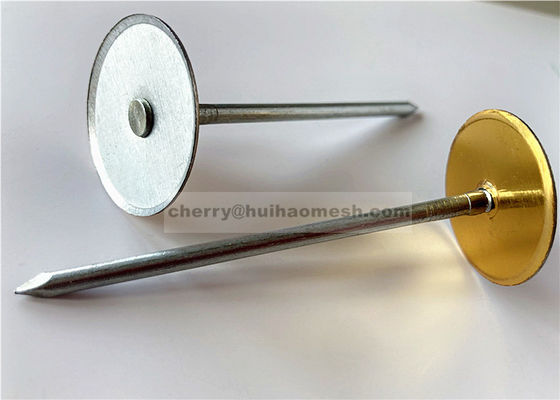

Copper Plating is available
Stainless steel Not standard, but available by special order
Bevel Washer edge is beveled to prevent cutting of insulation material

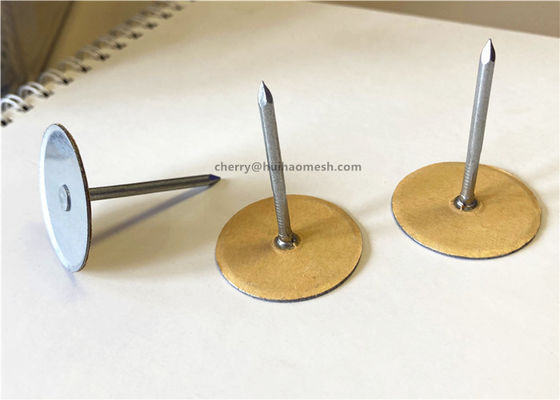

Head with paper  Available, for welding through aluminum foil faced insulation materials
Pin with tubes Available, for welding through tin foil faced insulation materials
2.7mm Cup Head CD Stud Welder Pins Galvanized Steel To Secure Insulation On Metal Surface 0



Common Length Of The 2.7mm Cup Head CD Stud Welder Pins



Material Length Pin Diameter Head Diameter
Galvanized Steel 3/8" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 1/2" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 3/4" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 7/8" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 1" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 1-1/8" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 1-1/4" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 1-1/2" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 1-5/8" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 1-7/8" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 2" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 2-1/8" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 2-1/4" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 2-1/2" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 3" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 3-1/2" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 4" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 4-1/2" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 5" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 5-1/2" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 6" 12Ga (2.7mm) 1-3/16" (30mm)
Galvanized Steel 8" 12Ga (2.7mm) 1-3/16" (30mm)



Recommended Assembly Method For The Cup Head CD Stud Welder Pins:



1: Position insulation materials

2: Weld the Cup Head CD Welder Pins to the sheet of duct work or other HVAC metal housings.
3: Insulation materials are fastened



2.7mm X 30mm Low Carbon Steel Insulation CD Weld Pins For HVAC Sheet Metal Housings 2



FAQ Of HUIHAO Hardware Mesh Product Limited



1. Are you manufacture or trader?

  • We are the manufacture and we sell what we make.

2. Do you support product customization?

  • Yes, the material, the size, the length all could be customizied according to your request.

3. Can you accept small orders?

  • Yes, for common size, we could accept small orders.

4. Can i get samples?

  • Yes, for common size, samples for quality confirm is supported.

5. What is your advantages?

  • Competitive price: we sale what we manufacture.
  • Excellent quality: we have rich experience, our products are in line with international standard.
  • Good after-sale service: we offer good after-sale service for each order.
  • Our products are consist in price, quality and delivery service.

6. What's the package for the insulation CD welder pins?

  • 500pcs or 1000pcs per carton, 48 cartons per pallet.
  • carton size: 28cmx29cmx31cm.
  • to be your requirements.
