Product Details:
|
| Name: | Metal Lacing Accessories | Feature: | Speed Fixing |
|---|---|---|---|
| Application: | Marine Requirements | Include: | Lacing Washer, Lacing Hook, Lacing Ring, Lacing Anchor |
| Material: | Stainless Steel 304 / 316 | Surface Treatment: | Passivated |
| Sample: | Available | Term: | SS-22/25 |
| Highlight: | speed fixing insulation fastener,marine insulation fastener |
||

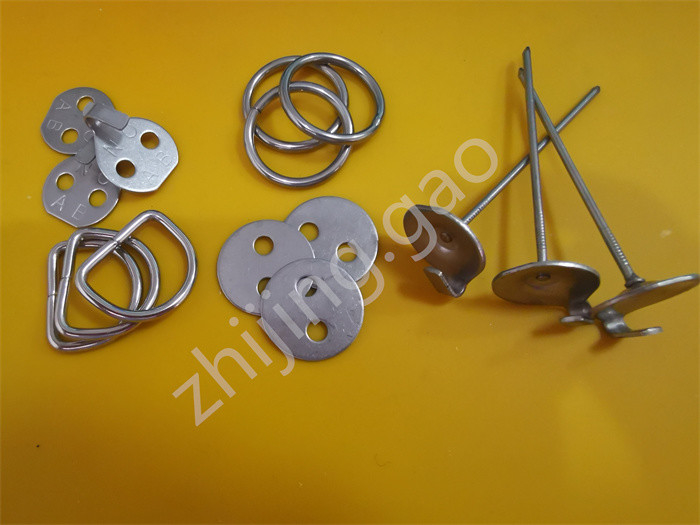

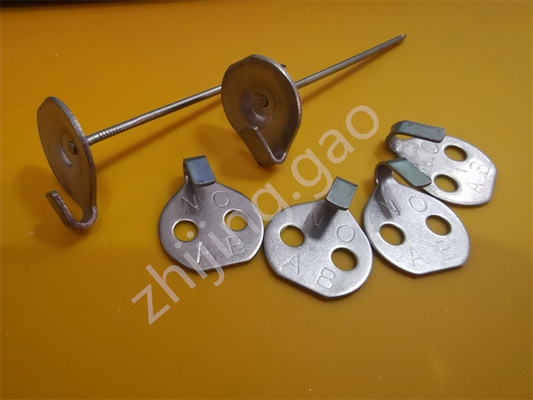

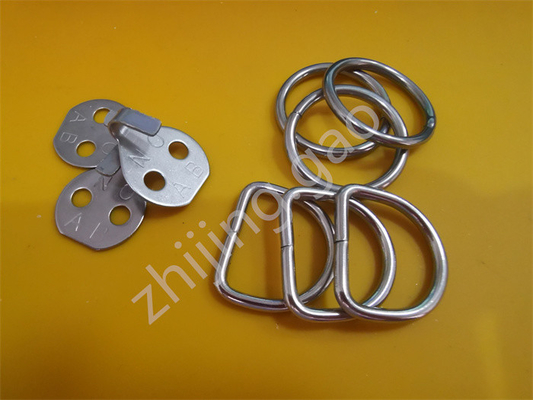

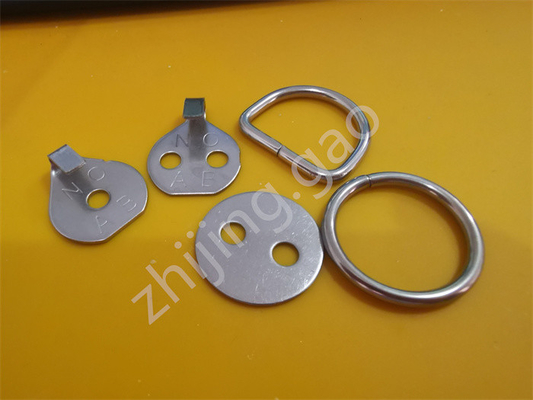

metal lacing accessories include lacing hooks, lacing washer, lacing rings and lacing anchors. we always choose stainless steel material for making lacing accessories. because Stainless steel has good characteristics, high temperature resistance and corrosion resistance.
|
Term |
specification details of lacing accessories |
|
lacing hook |
material: 1mm thickness stainless steel 304 diameter: 25mm / 22mm Type: single hole / double hole hole diameter: 5mm |
|
lacing anchor |
material: stainless steel 304. mild steel head: 22mm diameter head hook pin diameter: 2mm, 2.7mm, 3mm pin length:63.5mm, 84mm, 114mm
|
|
lacing washer |
material: 1mm stainless steel diameter: 25mm hole diameter: 5mm |
|
lacing O rings |
material: stainless steel 304/ 316 size: 3mm x30mm |
|
lacing D ring |
material: stainless steel 304 / 316 size:3mm x25mmx30mm |
CE approved - product conforms to EN14566:2008+A1:2009
Fire rated tested to 120min
Suitable for fixing insulation thermal remover cover
Lacing anchors are typically made from 304 stainless steel and are used to connect insulation blankets by pressing the anchors into the insulation and then lacing the individual items together.
