Product Details:
|
| Name: | 25MM Round Stainless Steel Lacing Washer | Washer Diameter: | 25mm |
|---|---|---|---|
| Material: | Stainless Steel 304 | Thickness: | 1mm |
| Fixing Hole Diameter: | 5 Mm | Application: | Removable Insulation Jacket |
| Highlight: | marine lacing washer,25mm lacing washer,25mm self locking washers round |
||

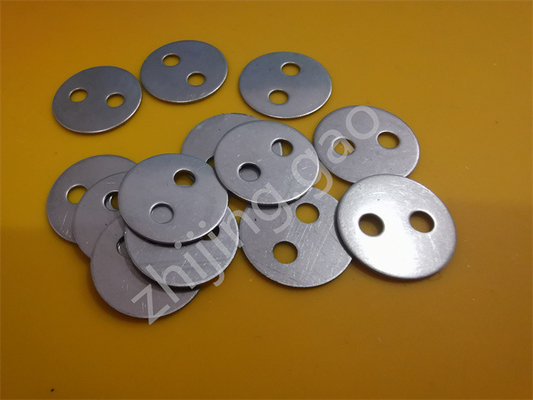

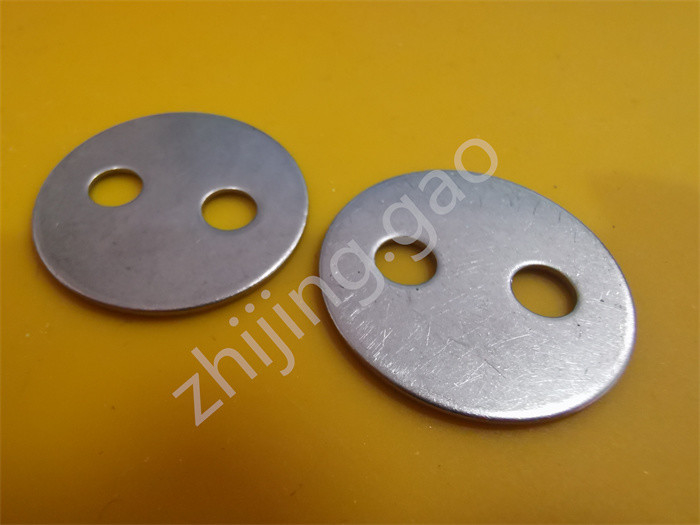

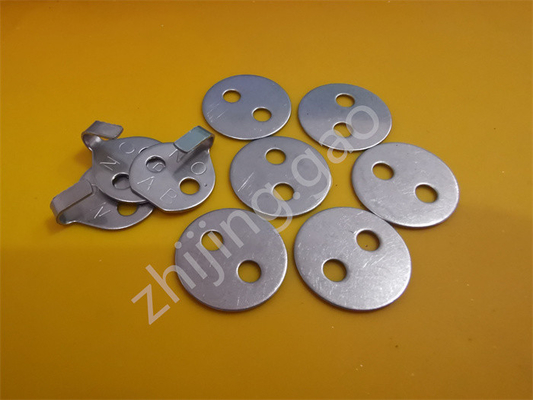

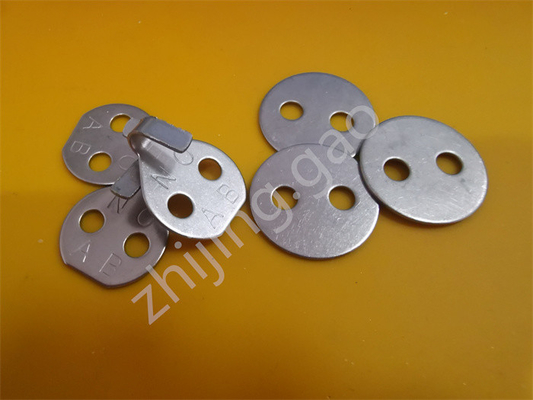

Mat Insulation Metal Lacing Hook Washers / Lacing washer system are used for securing and tying removable insulation
blankets, work with Lacing washers to fasten the insulation. Install the lacing hook with wire, secure with lacing washer,
use lacing wire to fasten the insulation through the lacing hooks.
1.material: stainless steel 304, stainless steel 316
2.thickness of lacing washer: 1mm
3. diameter of lacing washer:25mm
4.fixing hole diameter: 5mm, two holes
| Material | thickness | diameter | hole number | hole diameter |
| stainless steel 304 | 1mm | 25mm | 2 | 5mm |
| stainless steel 316 | 1mm | 25mm | 2 | 5mm |
| Term | specification details of lacing accessories |
| lacing hook |
material: 1mm thickness stainless steel 304 diameter: 25mm / 22mm Type: single hole / double hole hole diameter: 5mm |
| lacing anchor |
material: stainless steel 304. mild steel head: 22mm diameter head hook pin diameter: 2mm, 2.7mm, 3mm pin length:63.5mm, 84mm, 114mm |
| lacing O rings |
material: stainless steel 304/ 316 size: 3mm x30mm |
| lacing D ring |
material: stainless steel 304 / 316 size:3mm x25mmx30mm |
