Product Details:
|
| Product Name: | Galvanized Steel Cup Head Duct Liner Nails With Insulated Paper | Material: | Galvanized Steel |
|---|---|---|---|
| Brand: | HUIHAO CUSTOM | Head Dia: | 30mm |
| Usage: | Fasten Foil Faced Insulation Materials | Pin Diameter: | 2.7mm |
| Samples: | Supported | Pin Length: | 25mm |
| Highlight: | Cup Head Insulation Nails,Duct Liner Insulation Nails,Cup Head Insulation Nails With Paper Washer |
||

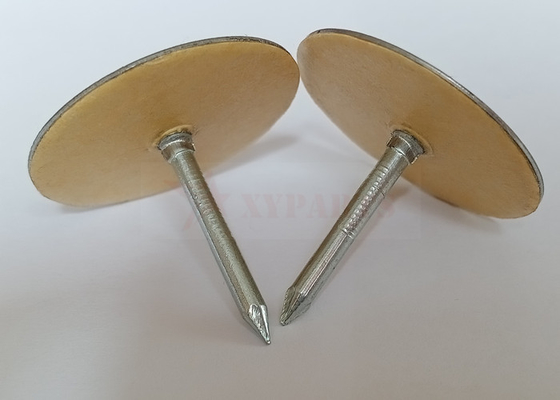

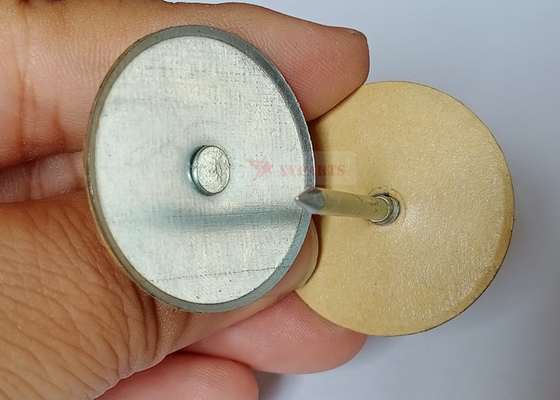

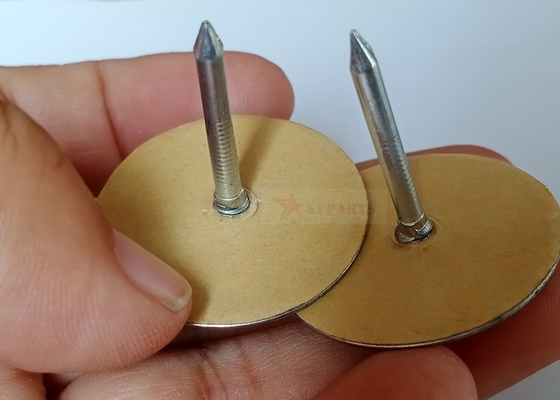

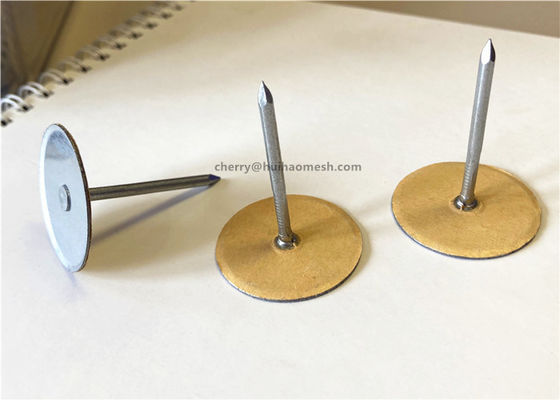

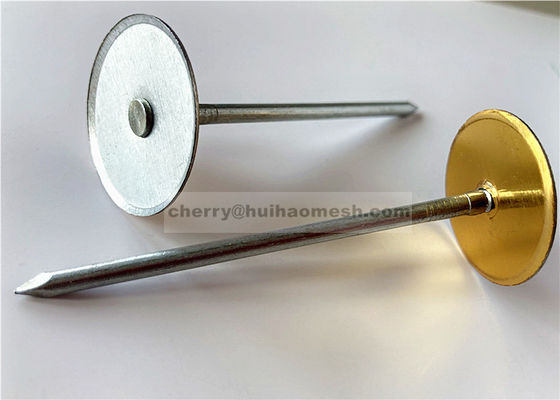

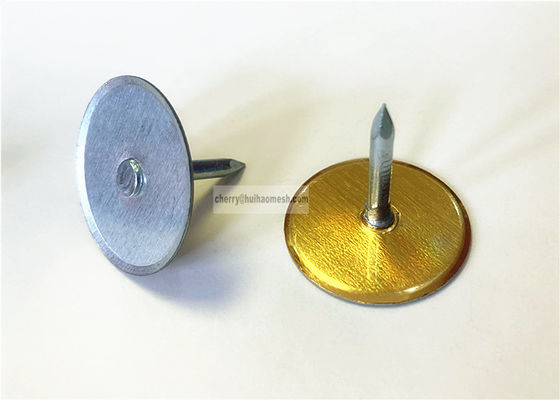

Cup Head Duct Liner Nails With Insulated Paper are used to fasten foil faced insulation
materials to the duct liner of HVAC sheet metals and housings.
The duct liner pins are used with a Capacitor Discharge Stud Welding Machine.
|
Item: Cup Head Duct Liner Nails With Insulated Paper Material: Galvanized Steel Head Size: 30mm Head Thickness: 0.5mm Nail Diameter: 2.7mm Nail Length: 25mm
|
 |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Step: 1. Hang the insulation 3. Weld in place
|
|||
| Recommended for | Pin length before welding | |||
| 1/2" insulation(all densities) | 12.67mm | |||
| 1" insulation(1-1/2"ib density) | 17.63mm | |||
| 1" foam | 25.55mm | |||
| 1" insulation(3ib densities) | 23.72mm | |||
| 1-1/2" insulation(all densities) | 28.42mm | |||
| 2" insulation(1-1/2"-2" ib density) | 37.95mm | |||
| 2" insulation(3ib densities) | 48.77mm | |||
| 3" insulation(all densities) | 69.85mm | |||
| 4" insulation(all densities) | 95.00mm | |||
|
1. 2000 pcs / 3000 pcs/ 5000 pcs per carton 2. 36 cartons per pallet
3. or according to your requirement.
|
|
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. Can you accept small orders?
Yes, for common size, we could accept small orders.
5. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
6. Advantage Of HUIHAO Hardware.
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
