Product Details:
|
| Name: | 35mm Insulation Metal Fixing Washer Discs | Material: | Galvanized Steel |
|---|---|---|---|
| Application: | Secure Tile Backer Boards | Diameter: | 35mm |
| Surface: | Galvanized | Thickness: | 0.7mm |
| Small Order: | Support | Center Hole: | 5mm |
| Samples: | Support | Package Customization: | Support |
| Highlight: | 35mm metal fixing washers,35mm tile backer board fixing washers,35mm board fixing washer discs |
||

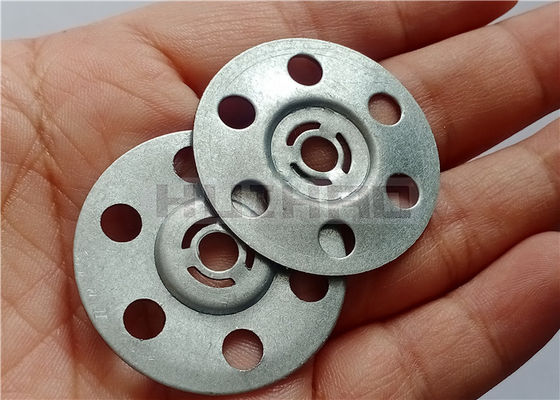

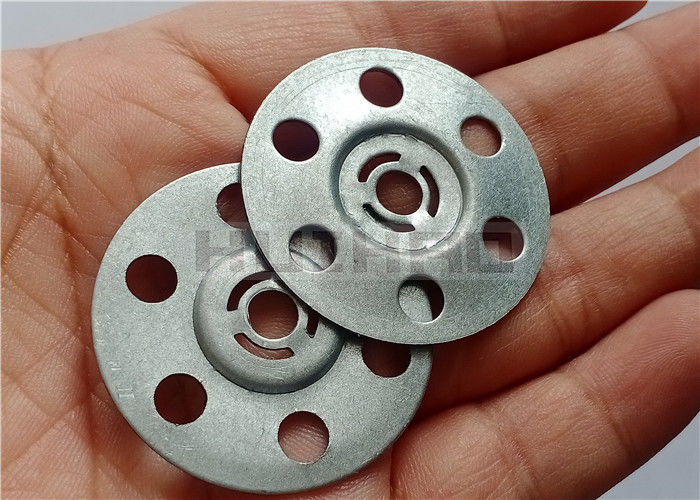

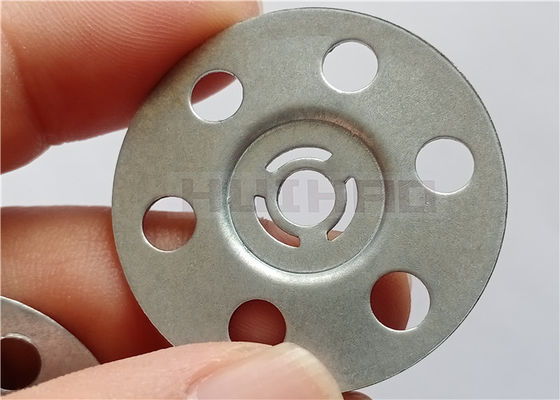

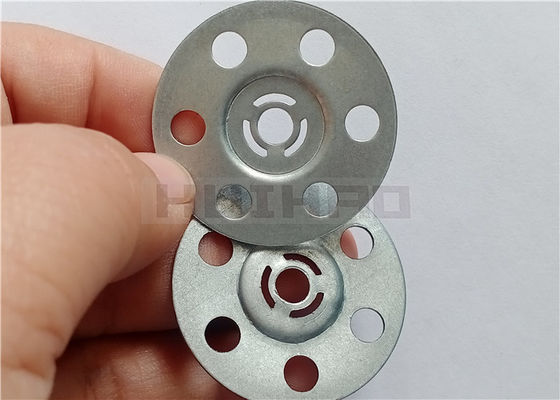

The 35mm Insulation Fixing Washer Discs are used for tile backer boards.
These fixing discs have been specially designed to provide an easy secure way to fix
marmox and wedi-type insulation boards on the floor and walls.
Tile Backer Board Washers have a counter-sunk midsection, because the Marmox-style
board can pull the screw into the insulation, but not the outer rim of the washer.
Consequently, the remaining protrusion sits flush with the board’s surface.
Hence making it ready for an unhindered application of the subsequent additional floor layers.
Created with a perforated surface which will maintain a maximum board surface exposure.
To protect the insulation fixing washer discs from corrosion, they are galvanised. And this
minimises almost any chance of degradation over time.
|
Item: Insulation Metal Fixing Washer Discs For Tile Backer Boards Material: galvanized steel Size: 35mm Center Hole: 5mm Edge Hole: 5mm Thickness: 0.7mm |
 |
|
Item: Insulation Fixing Washer Discs For Tile Backer Boards Material: stainless steel 304 Size: 36mm Center Hole: 5mm Thickness: 0.6mm |
|
Item: Insulation Fixing Washer Discs For Tile Backer Boards Material: galvanized steel Size: 36mm Center Hole: 5mm Thickness: 0.6mm |
|
|
Item: Insulation Fixing Washer Discs For Tile Backer Boards Material: galvanized steel Size: 32mm Center Hole: 5mm Thickness: 0.6mm |
We would highly recommend using 15 washer discs per 1200 x 600mm board. This is however
only a rough guide to the number of washers needed to be used with the tile backer boards.
Depending upon the material, thickness, subsurface, and the final floor covering to be
put onto the boards. Tile backer board washers can be used on either wall or on floors.
It is the responsibility of the installer to use the correct number of discs that hold the board
firmly in place.
|
1. 50 pcs/bag 2. 100 pcs/bag 3. 200 pcs/bag 4. 500 pcs/bag 5. customized according to customer's requirement |
|
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, product customization is supported.
3. Can i get samples?
Yes, samples for quality confirm is supported.
4. Can you accept small orders?
Yes, for common size, we could accept small orders.
