Product Details:
|
| Product Name: | Capacitor Discharge Cup Head Weld Pins With Paper Insulating Washers | Brand: | HUIHAO CUSTOM |
|---|---|---|---|
| Base Material: | Galvanized Steel | Base Size: | 30mm |
| Nail Material: | Carbon Steel | Nail Diameter: | 2.7mm (other Diameter Also Could Be Customized) |
| Nail Surface: | Copper Coated | Nail Length: | 4" / 105mm (other Length Also Could Be Customized) |
| Usage: | Fasten Thermal Insulation | Samples: | Supported |
| Highlight: | Capacitor Discharge Cup Head Weld Pins,12 Gauge Cup Head Weld Pins,12 Gauge Capacitor Discharge Weld Pins |
||
Capacitor Discharge Cup Head Weld Pins simplify the permanent installation of duct liner or
similar insulation to ducting and other HVAC sheet metals and housings.
They can be applied quickly and easily using standard inductive CD stud welding equipment
or resistance welding equipment.

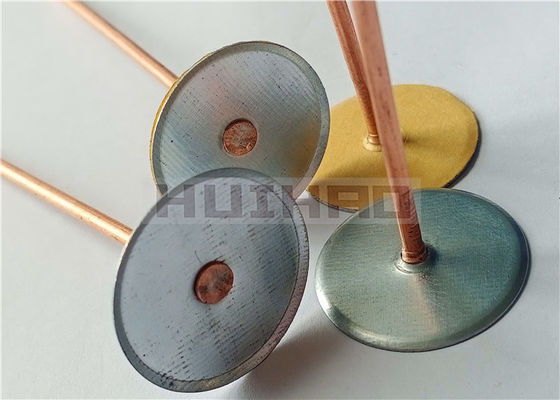

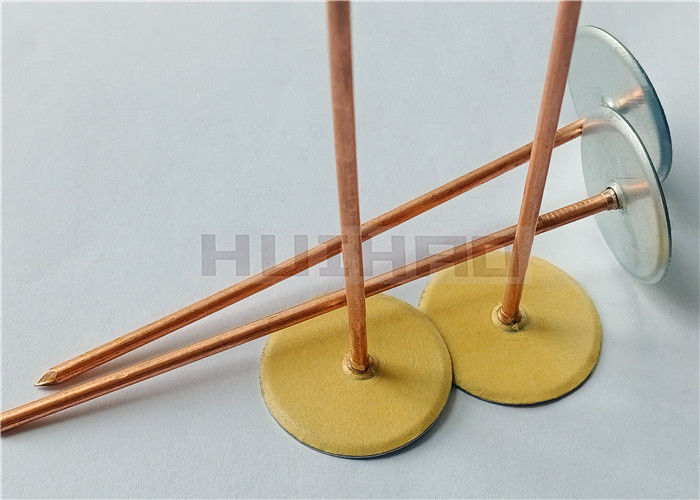

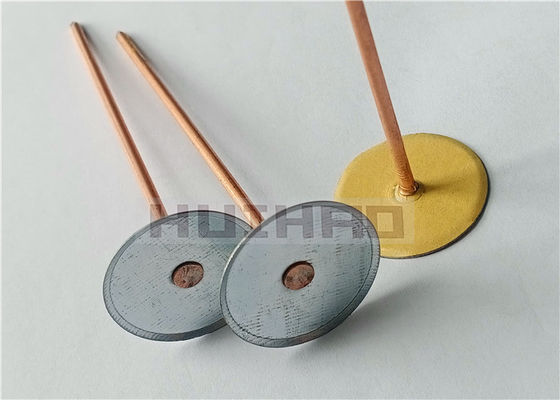

Capacitor Discharge Cup Head Weld Pins with Paper Insulating Washers are to avoid
damaging arcing when welding through foil faced insulation.
|
Item: 12 Gauge Capacitor Discharge Cup Head Weld Pins With Paper Insulating Washers Base Material: Galvanized Steel Base Size: 30mm (if special need for the base size, it could be customized.) Nail Material: Carbon Steel Nail Surface: Copper coating Nail Diameter: 2.7mm (if special need for the nail diameter, it could be customized.) Nail Length: 4" / 105mm (if special need for the length, it could be customized.)
|
 |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Capacitor Discharge Cup Head Weld Pins are welded through the insulation, allowing the
fabrication to be done in one easy step, which reduce the labor time a lot.
The head of the pin is attached to the nail, so there is no need to add a washer.
|
Item: Capacitor Discharge Cup Head Weld Pins Application: Length of pin to be used is determined by the thickness, density & composition of the insulation being installed. Step: 1. Hang the insulation 3. Weld in place
|
|||
| Recommended for | Pin length before welding | |||
| 1/2" insulation(all densities) | 12.67mm | |||
| 1" insulation(1-1/2"ib density) | 17.63mm | |||
| 1" foam | 25.55mm | |||
| 1" insulation(3ib densities) | 23.72mm | |||
| 1-1/2" insulation(all densities) | 28.42mm | |||
| 2" insulation(1-1/2"-2" ib density) | 37.95mm | |||
| 2" insulation(3ib densities) | 48.77mm | |||
| 3" insulation(all densities) | 69.85mm | |||
| 4" insulation(all densities) | 95.00mm | |||
|
1. 2000 pcs / 3000 pcs/ 5000 pcs per carton 2. 36 cartons per pallet
3. or according to your requirement.
|
|
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm is supported.
4. Can you accept small orders?
Yes, for common size, we could accept small orders.
5. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
6. Advantage Of Huihao Hardware.
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
