Product Details:
|
| Name: | Bimetallic Insulation Pin | Type: | CD Weld Studs |
|---|---|---|---|
| Pin Dia: | 3mm | Pin Material: | Ss304/316 .CS |
| Base Size: | 6mmx15mm | Install: | Self Locking Washer ,dome Cap |
| Delivery: | By Sea Or Air | ISO: | 9001 |
| Package: | 500/800/1000pcs Per Carton | ||
| Highlight: | capacitor discharge stud welding pins,cd stud welding pins,stud capacitor discharge weld pins |
||

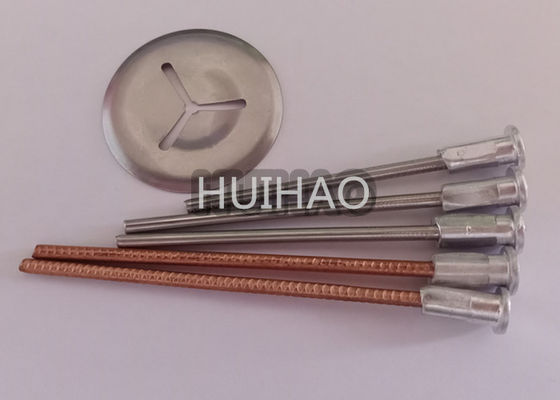

Bimetallic insulation pin is a kind of CD weld stud ,it is usually used in shipyard ,mainly for shipmarine building
or repair ,it is made by aluminum base and pin .pin material can be stainless steel and carbon steel material ,
the surface treatment is polish for stainless steel ,copper coated /galvanized for carbon steel ,the pin length
can be made according your request
The self-locking washers(clips)and dome cap in a variety of size ,shapes and material for locking the bimetallic pins
| Specification of capacitor discharge(CD) weld studs bimetallic insulation pin | |
| Name | bimetallic insulation pin |
| Type | capacitor discharge (CD)weld stud |
| Base material | aluminum alloy 6000 series |
| Base size | 6mmx15mm |
| Pin material | stainless steel /carbon steel |
| Pin surface treament | polish for stainless steel ,galvanized and copper coated for carbon steel |
| Pin diameter | 3mm in common |
| Pin length | 65mm in common ,45mm ,75mm,90mm,100mm,110mm,120mm,150mm ect |
| Install | self locking washer ,3-slots speed clips ,metal dome cap+metal washer ,PE dome cap+metal washer |
| Feature |
|
 |

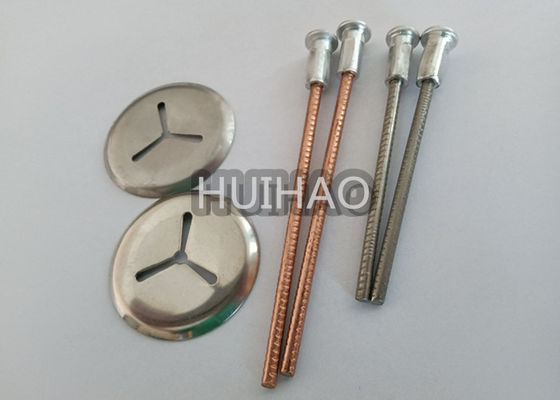

Copper Coated Bimetallic Weld Pinsbase size :6x15mm pin diameter :3mm pin length :90mm or to be request install : self locking washer ,3-slots speed clips ,metal dome cap washer , PE dome cap washer
|
|

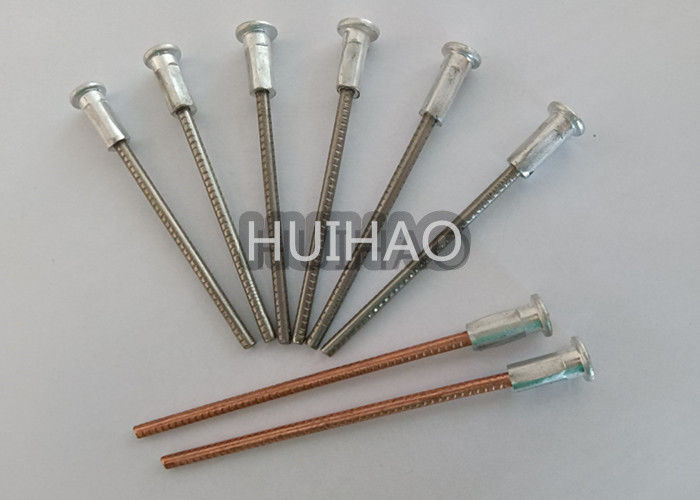

Galvanized Bimetallic Weld Pins
base size :6x15mm pin diameter :3mm pin length :65mm or to be request install : self locking washer ,3-slots speed clips ,metal dome cap washer , PE dome cap washer |
|

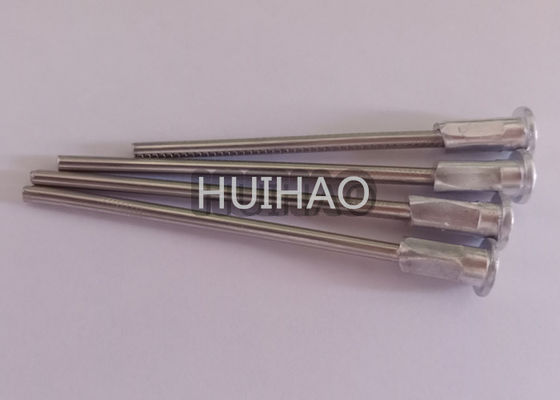

Stainless steel Bimetallic Weld Pins
base size :6x15mm pin diameter :3mm pin length :65mm/75mm or to be request install : self locking washer ,3-slots speed clips ,metal dome cap washer , PE dome cap washer |
The fixing parts could be dome cap washers , plastic caps with metal clip, round self locking washers .
| self-locking washer | 3- slots speed clips |
|
|
| metal dome cap washer | PE dome cap washer |
|
|
|
Package of bimetallic weld pins 1.300pcs ,500pcs ,800pcs in plastic bag +cartons 2.delivery by DHL ,FEDEX ,UPS ect 3. door to door by sea or by air 4.by sea |
|
3. door to door by sea or by air 4.by sea |
Q1: Are you factory or trader ?
Yes ,we sell what we manufacture
Q2:How long is your delivery time?
Usually the ship time is within 7-15 days
Q3:What is your quote elements?
The size of product, material with surface treatment and the quantity
Q4:Can you provide samples?is it free or in charge ?
A3: Yes, we can provide sample for we have in stock ,for special sample you need pay the mold fee ,the mold fee will return back you after confirm the mass order
Q5: How can you ensure the quality?
1.we can supply CAD drawing pic for you
2.Our company have ISO certificate
2.We have working on this product for twenty years and we have experience on it ,and we know the point you focus on
