5mm Capacitor Discharge Insulation Cd Weld Pins Copper Coated

Large Image : 5mm Capacitor Discharge Insulation Cd Weld Pins Copper Coated

Product Details:

Place of Origin:	CHINA
Brand Name:	HUIHAO
Certification:	ISO 9001
Model Number:	insulation CD weld pins

Payment & Shipping Terms:

Minimum Order Quantity:	5000PCS
Packaging Details:	usually 500pcs ,800pcs ,1000pcs per carton then on pallet
Delivery Time:	7-10 days after confirm the order
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	100.000PCS per week

Contact Now

5mm Capacitor Discharge Insulation Cd Weld Pins Copper Coated

Description

Name:	Insulation CD Weld Pins	Material:	Carbon Steel/stainless Steel
Surface Treatment:	Polish/galvanized/copper Coated	Pin Diameter:	1mm,1.5mm,2.7mm,3.0mm,3.4mm,4mm,5mm
Pin Length:	10mm-500mm	Sample:	Free
Package:	500/800/1000pcs Per Carton	Service:	Door To Door Service
Highlight:	5mm capacitor discharge weld pins , copper coated capacitor discharge weld pins , 5mm cd weld pins

5mm Capacitor Discharge Insulation CD Weld Pins Copper Coated

Quick details insulation CD weld pins copper coated :

Name :insulation CD weld pins is also called CD insulation weld pins
Material : carbon steel ,stainless steel ,alumnum ,
Surface treatment :the carbon steel CD weld pins are available in galvanized coated or copper coated ,
The diameter :14gauge(2.0mm) 12gauge(2.7mm) 11guauge(3mm) 10gauge(3.4mm) 4mm ,5mm
The length : from 10mm to 500mm
Type : weld tip top or little star base Install :self locking washer ,3-slots speed clips ,insulation dome cap washer

Specification of insulation CD weld pins copper coated :

Modle	wire diameter	Length	Material	Surface treatment
HH-M1	1mm	10mm	SS/MS	Polish for SS ,galvanized/copper coated for MS
HH-1.5	1.5mm	15mm	SS/MS
HH--2	2.0mm	25mm in comon	SS/MS
HH-2.7	2.7mm	38-203mm	SS/MS
HH-3	3.0mm	45-203mm	SS/MS
HH-3.4	3.4mm	45-500mm	SS/MS
HH-4	4mm	45-500mm	SS/MS
HH-5	5mm	45-500mm	SS/MS
Pls note that we can make the pin size and length according your request ,special size pls contact me for more information

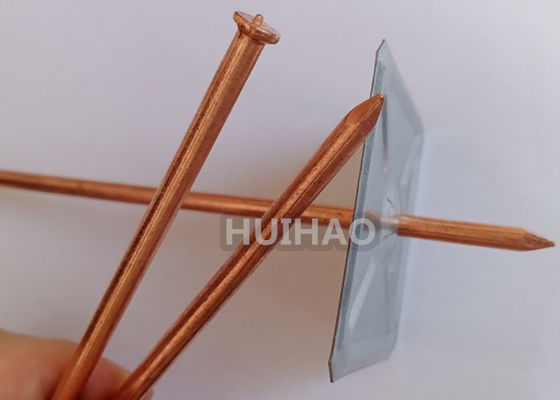

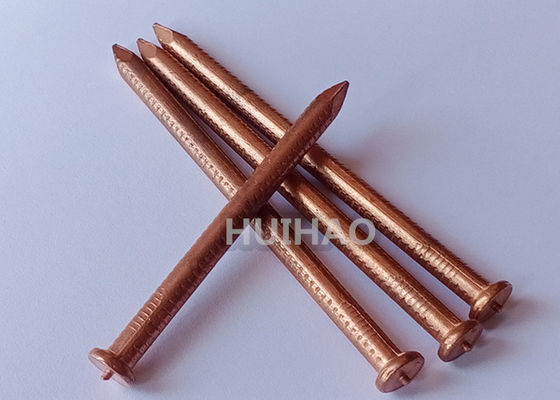

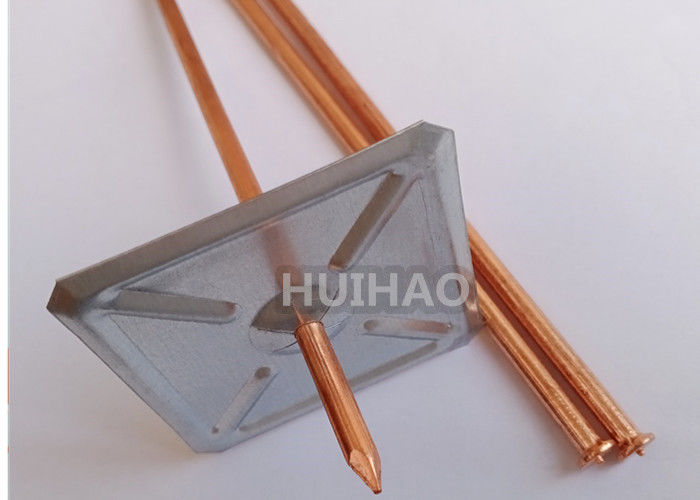

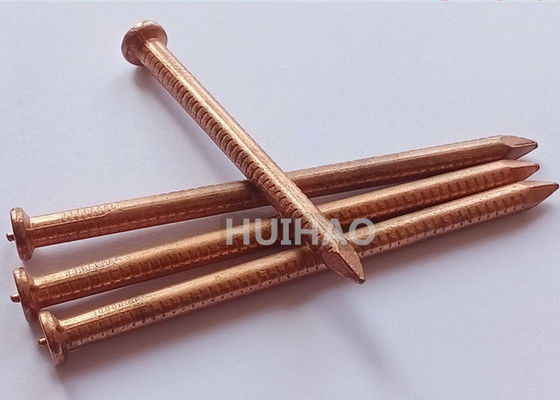

Pic of insulation CD weld pins copper coated :

Application of insulation CD weld pins :

The welding insulation CD weld pins is a capacitor discharge weld insulation fastener, these insulation

CD weld pins work with a stud welding machine, weld the pins on the sheet metal, then put the insulation
through the welding pins, press a self locking washer onto the nail, bend over or clip off the nail to finish

fastening insulation installation.

5mm Capacitor Discharge Insulation Cd Weld Pins Copper Coated 2

Package of insulation CD weld pins :

5mm Capacitor Discharge Insulation Cd Weld Pins Copper Coated 4

Pacakge for insulation CD weld pins :

Package 1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet. 2. to be your requirements.
Delivery Sample: DHL/EMS/UPS/TNT/EXPRESS Large Order: we recommend you by SEA ,or by AIR if in an emergency.

FAQ for HUIHAO company :

Q1: Are you factory or trader ?

Yes ,we sell what we manufacture

Q2:How long is your delivery time?

Usually the ship time is within 7-15 days

Q3:What is your quote elements?

The size of product, material with surface treatment and the quantity

Q4:Can you provide samples?is it free or in charge ?

A3: Yes, we can provide sample for we have in stock ,for special sample you need pay the mold fee ,the mold fee will return back you after confirm the mass order

Q5: How can you ensure the quality?

1.we can supply CAD drawing pic for you

2.Our company have ISO certificate

2.We have working on this product for twenty years and we have experience on it ,and we know the point you focus on
