12 Gauge Capacitor Discharge Cup Head Weld Pins For Fastening The Insulation Onto A Metal Surface

Quick Details Of The 12 Gauge Capacitor Discharge Cup Head Weld Pins:

Capacitor Discharge Cup Head Weld Pins are mainly used for fasten the insulation to the

sheet metal of insulation construction.

It works with welding equipment, through welding for fasten the insulation.

The Capacitor Discharge Cup Head Weld Pins simplify the permanent installation of "Duct Liner"

or other insulation materials to duct work or to other heating, ventilating or air conditioning

sheet metal configurations and housings.

So the Capacitor Discharge Cup Head Weld Pins are widely accepted as labor saving fasteners

in the thermal and acoustical insulation markets for use in industrial and commercial applications.

Item: 12 Gauge Capacitor Discharge Cup Head Weld Pins Application: Fastening the insulation material onto a metal surface Material: Galvanized steel Head Size: 30mm Head Edge: Beveled edge washer to prevent cutting of insulation material. Pin Diameter: 2.7mm Pin Length: 1" / 25mm

Specifications Of The Capacitor Discharge Cup Head Weld Pins:

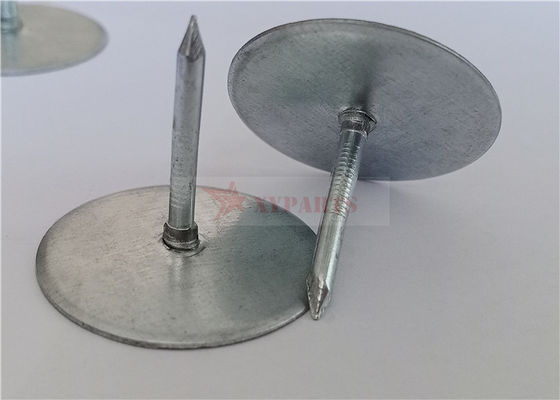

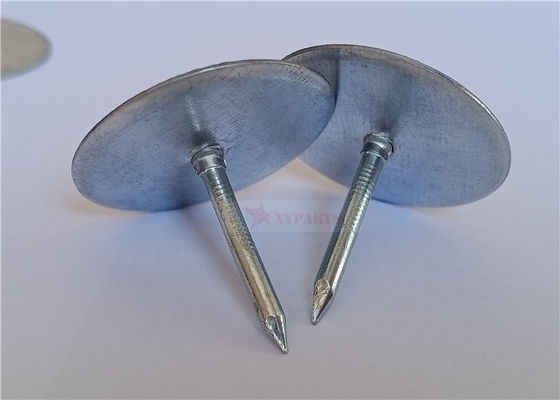

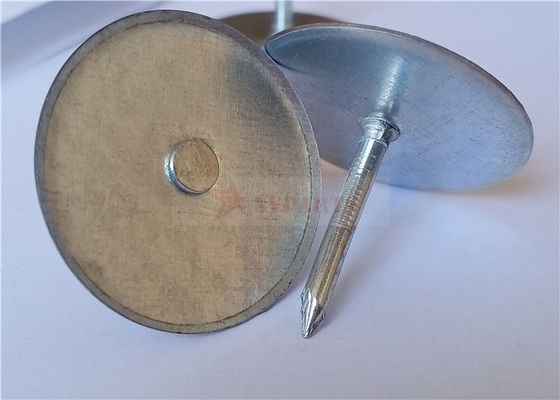

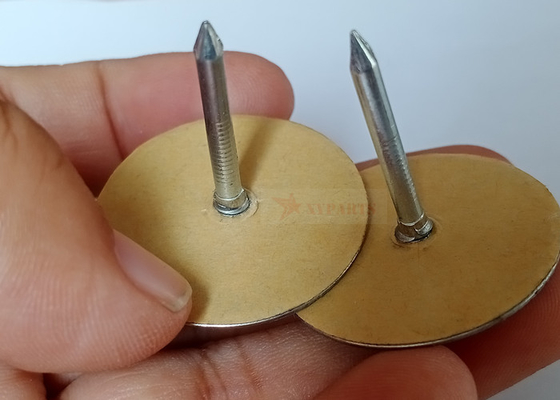

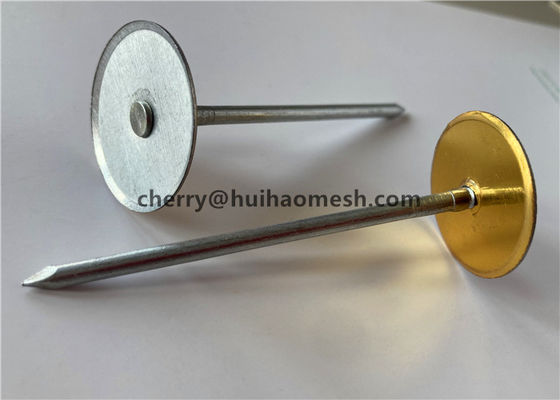

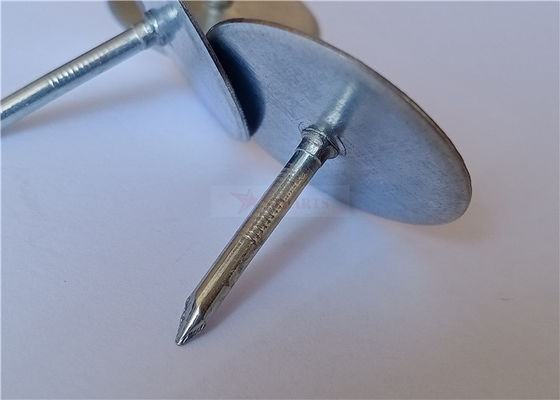

Photo		Capacitor Discharge Cup Head Weld Pins consist of a round washer and a nail.
		Washer material	Washer size (B)	Nail material	Nail dia (A)	Pin length (L)
		Galvanized steel	25mm, 30mm, 38mm,	Galvanized steel, Copper coated steel	2mm, 2.7mm, 3.0mm, 3.4mm	3/8" - 12"
Note		The washer and nail size could be customized .
Beveled edge cap		Prevents tearing of duct liner
Faster welds		Forged diamond point design creates more electrical resistance for faster welds.
Better plating		Zinc and copper plating exceeds SMACNA standards and gives a more professional appearance.
Reduced down time		Consistent point quality reduces frequency of machine adjustments.
Stronger welds		Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
Applied with standard equipment		Easily applied with automatic pin welder or most standard hand held or hopper fed resistance welders.

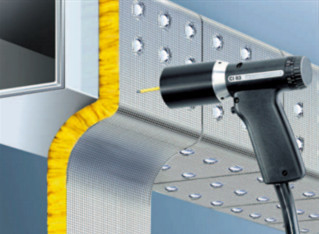

Item: Capacitor Discharge Cup Head Weld Pins 1. This product is usually applied with a capacitor discharge stud welder. 2. The method of application is to place the insulation onto a metal surface, push the Capacitor Discharge Cup Head Weld Pins through the insulation, and weld affix (mount) the entire fabrication in one step.

Package Of The Capacitor Discharge Cup Head Weld Pins:

1. 2000 pcs / 3000 pcs/ 5000 pcs per carton 2. 48 cartons per pallet 3. or according to your requirement.
