Product Details:
|
| Product Name: | 2.7mm Galvanized Steel Cup Head Insulation Pins | Material: | Galvanized Steel |
|---|---|---|---|
| Brand: | HUIHAO CUSTOM | Head Dia: | 30mm |
| Usage: | Fasten Foil Faced Insulation Materials | Pin Diameter: | 2.7mm |
| Samples: | Supported | Pin Length: | 25mm |
| Highlight: | 2.7mm cd weld pins,cup head cd weld pins,galvanized steel stud welding insulation pins |
||

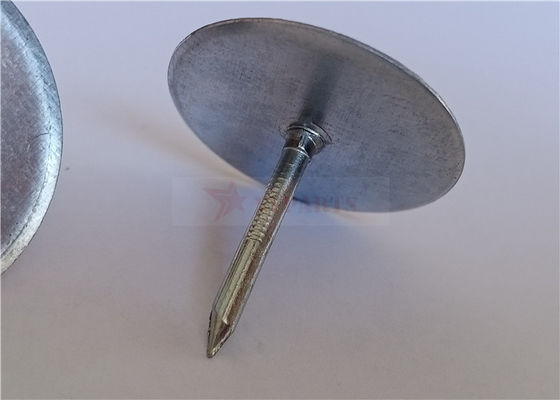

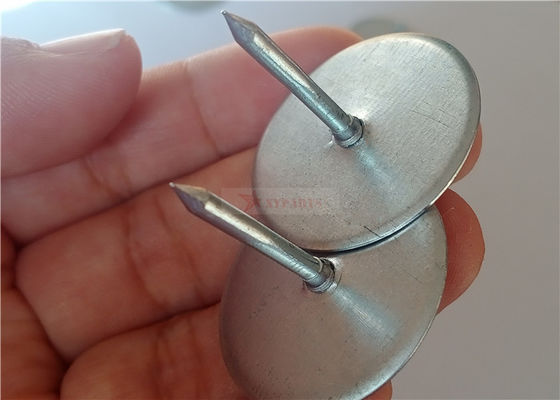

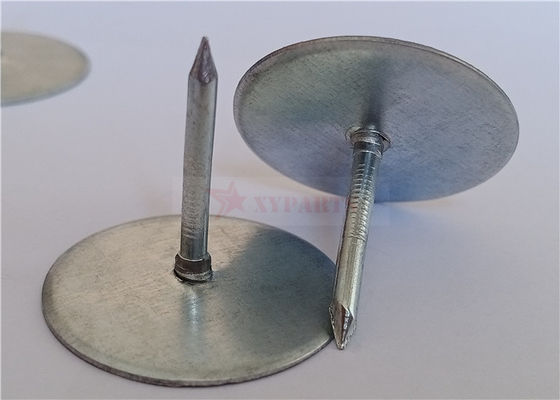

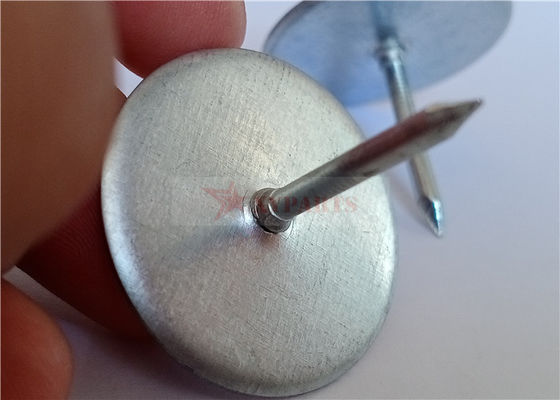

Cup Head Insulation Pins is a mild steel fabricated part made up of a weld pin and a staked-on
speed clip, or retaining washer.
While some variations of material are available, the most popular style for cup head insulation
pins is a mild steel weld nail with a galvanized-coated mild steel retaining washer.
|
Item: 2.7mm Cup Head Insulation Pins Material: Galvanized steel Head Size: 30mm
|
|
 |
| Photo | Cup head insulation pins consist of a round washer and a nail. | |||||
|
Washer material |
Washer size (B) |
Nail material |
Nail dia (A) |
Pin length (L) |
|
| Galvanized steel |
25mm, 30mm, 38mm, |
Galvanized steel, Copper coated steel
|
2mm, 2.7mm, 3.0mm, 3.4mm |
3/8" - 12" | ||
| Note | The washer and nail size could be customized . | |||||
| Beveled edge cap | Prevents tearing of duct liner | |||||
| Faster welds | Forged diamond point design creates more electrical resistance for faster welds. | |||||
| Better plating | Zinc and copper plating exceeds SMACNA standards and gives a more professional appearance. | |||||
| Reduced down time | Consistent point quality reduces frequency of machine adjustments. | |||||
| Stronger welds | Hardened steel point assures positive electrical contact for complete sheet to pin fusion. | |||||
| Applied with standard equipment | Easily applied with automatic pin welder or most standard hand held or hopper fed resistance welders. | |||||
|
||||||
|
Item: Cup Head Insulation Pins 1. This product is usually applied with a capacitor discharge stud welder. 2. The method of application is to place the insulation onto a metal surface, push the cup head insulation pins through the insulation, and weld affix (mount) the entire fabrication in one step. 3. Cup head insulation pins are widely accepted as labor saving fasteners in the thermal and acoustical insulation markets primarily for commercial type insulation applications. |
| Recommended for | Pin length before welding | |||
| 1/2" insulation(all densities) | 12.67mm | |||
| 1" insulation(1-1/2"ib density) | 17.63mm | |||
| 1" foam | 25.55mm | |||
| 1" insulation(3ib densities) | 23.72mm | |||
| 1-1/2" insulation(all densities) | 28.42mm | |||
| 2" insulation(1-1/2"-2" ib density) | 37.95mm | |||
| 2" insulation(3ib densities) | 48.77mm | |||
| 3" insulation(all densities) | 69.85mm | |||
| 4" insulation(all densities) | 95.00mm | |||
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
5. What's your advantages?
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
