Product Details:
|
| Product Name: | 2-1/2 Inch Self Locking Washer | Material: | Stainless Steel/galvanized Steel |
|---|---|---|---|
| Thickness: | 0.5mm | Size: | 64mmx64mm, 50mmx50mm,32mmx32mm To Be Request |
| Sample: | Free | Center Hole: | For Fixing 2.7mm,3.0mm,3.4mm,4mm,5mm Pins |
| OEM/ODM: | Support | Package: | 200/300/500/1000 Pcs Per Bag |
| Highlight: | 2-1/2 Inch Self Locking Washer,Steel Self Locking Washer,2-1/2 Inch Insulation Washers |
||
Self-locking Washers also called insulation speed clip ,are designed to be used in conjunction with
weld pins, insul-anchors and lacing anchors to fasten insulation in place. Simply press the self-locking washer
onto the pin up to the insulation until the desired position is reached. Then clip off, (or bend over) the remaining
portion of pin for a permanent attachment.
Self-Locking Washers are available according to the chart above and with standard 10 GA, 3mm, 12 GA, or
14 GA hole sizes off-the-shelf. they are available in a variety of sizes and materials , Other material/plating
combinations and hole sizes are available by special order
| Specification of 2-1/2 Inch Galvanized Steel Square Self Locking Washer For CD Weld Pins | |||
| Material | Thickness | Size | Center hole |
| 316stainless steel | 0.4mm | 64mmx64mm | 2.4mm |
| Application | Exclusively used for fixing adiabatic materials in ducts of air-conditioner for glass-wool and rock-wool in soundproofing works ,and for the duct-line | ||
| Usages | Self-locking washers are used in conjunction with weld pins ,insulation anchors and lacing anchors to fasten insulation place, simply press with self locking washer onto the pin up to the insulation until the desired position is reached ,then clip off or bend over the remaining portion of pin for a permanent parts | ||
|

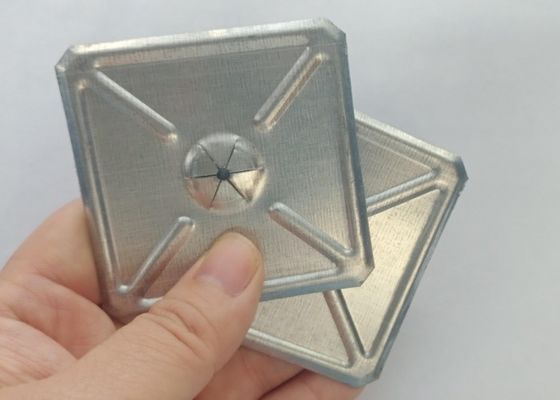

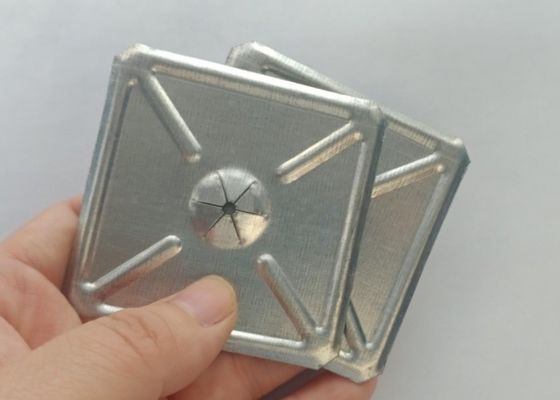

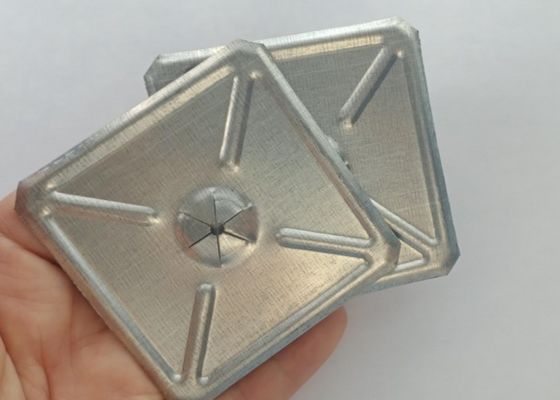

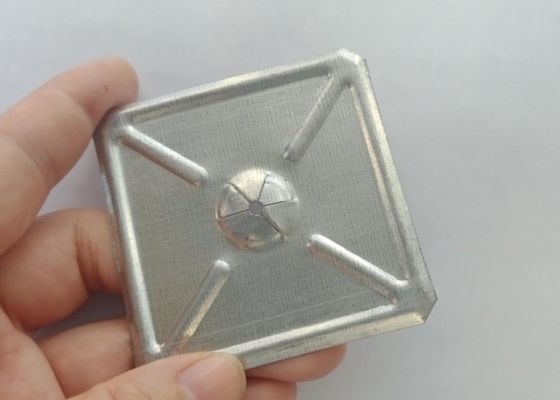

galvanized steel square self locking washer 64mmx64mm Thickness :0.4mm Center hole :can used for fixing 2.7mm,3.0mm,3.4mm,4mm,5mm insulation pins ,CD weld stud pins |
stainless steel square self locking washer 64mmx64mm Thickness :0.4mm Center hole :can used for fixing 2.7mm,3.0mm,3.4mm,4mm,5mm insulation pins ,CD weld stud pins |
 |
|
Application of Square Self-Locking Washer :
Quick mounting
Suitable to positions
Fire-resistant
Other dimensions are available upon special
>> Package
1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.
2. to be your requirements.
>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.
HUIHAO company is a insulation fasteners/insulation anchors manufacturing company,we produce all kinds
of insulation pins and washers.can make mold according your drawing pic ,Our products is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
