Product Details:
|
| Name: | 65 Manganese Steel Spring Circlip | Key Word: | Bearing Washer |
|---|---|---|---|
| Size: | M2-M12 | Application: | Retail Industry, General Industry |
| Finished: | Black | Material: | 65mn Steel, Stainless Steel,DX51D+Z EN10346 |
| Style: | Bonded | Mix Size: | M12x25 |
| Designer: | ZHIJING.GAO13363891298 | Factory: | HUIHAO HARDWARE |
| Highlight: | 65 manganese steel belleville spring,m2 belleville spring,m12 belleville washer |
||

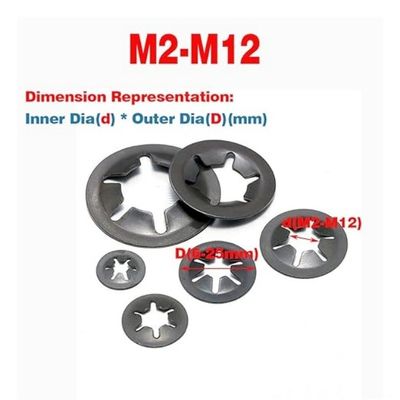

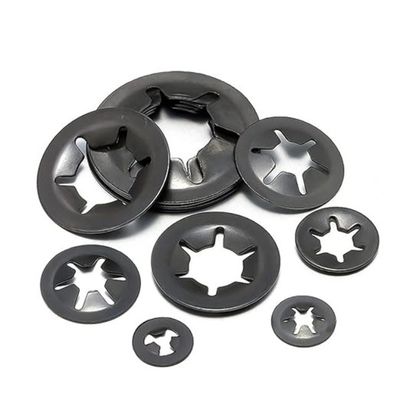

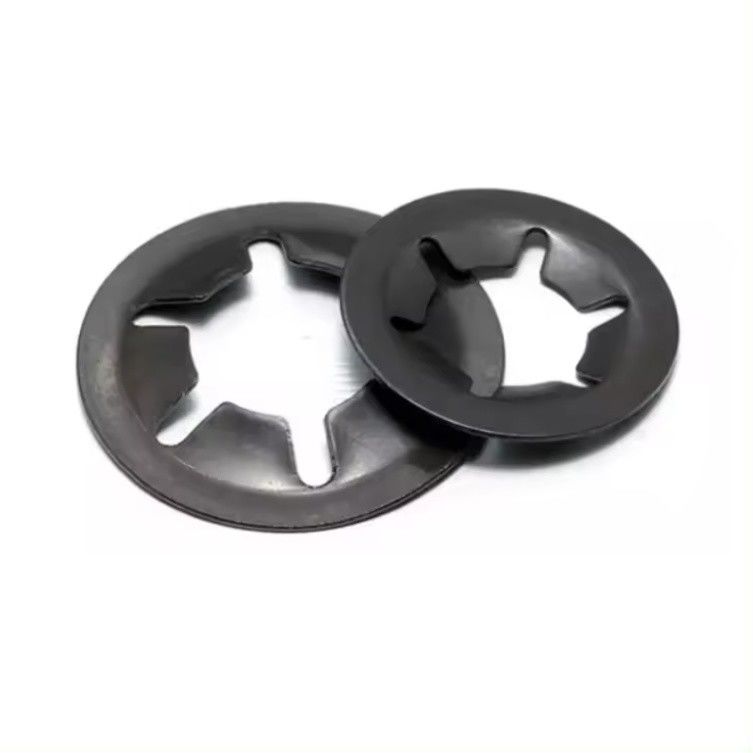

Support customized 65 Manganese Steel Spring Circlip / Circlip Bearing Washer , You can contact customer service
Material: 65 Manganese Steel
Notes:
The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
The size,color,printing word ,etc is subjectde to the real product.
If the above link does not have the product that you want, please consult us and customize.
| size | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | |
| d | MIX | 1.9 | 2.9 | 3.9 | 4.9 | 5.9 | 7.9 | 9.9 | 11.9 |
| MIN | 1.8 | 2.75 | 3.75 | 4.75 | 5.75 | 7.75 | 9.75 | 11.75 | |
| dc | 6 | 10 | 12 | 14 | 16 | 17.5 | 21 | 27 | |
| H | 0.7 | 1.3 | 1.4 | 1.55 | 1.75 | 1.8 | 2.2 | 2.8 | |
| h | Average | 0.25 | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | 0.7 | 0.9 |
| MIX | 0.275 | 0.325 | 0.325 | 0.43 | 0.43 | 0.53 | 0.74 | 0.95 | |
| MIN | 0.225 | 0.275 | 0.275 | 0.37 | 0.37 | 0.47 | 0.66 | 0.85 | |
We have Magnetic Powder Detector, Material Testing Machine, Metallographic Microscope, such testing instruments, guarantee product high quality and beautiful appearance.The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing.
1. 25 kg bags or 50kg bags.
2. bags with pallet.
3. 25 kg cartons or cartons with pallet.
4. Packing as customers’ request
