M6 Starlock Retaining Washer 5.5mm Id 16mm Od Push On Lock Speed Clip

M6 Starlock Retaining Washer 5.5mm Id 16mm Od Push On Lock Speed Clip
M6 Starlock Retaining Washer 5.5mm Id 16mm Od Push On Lock Speed Clip M6 Starlock Retaining Washer 5.5mm Id 16mm Od Push On Lock Speed Clip

Large Image :  M6 Starlock Retaining Washer 5.5mm Id 16mm Od Push On Lock Speed Clip

Product Details:
Place of Origin: CHINA,hebei
Brand Name: HUIHAOKST
Certification: ISO9001-2015
Model Number: m6 Starlock Retaining Washer
Payment & Shipping Terms:
Minimum Order Quantity: 10000PCS Starlock Retaining Washer
Packaging Details: SMALL PP BAG OR BOX, THEN PUT INTO CARTON or to be your request
Delivery Time: 7 work days
Payment Terms: L/C, T/T, alipay
Supply Ability: 1000000 pcs Starlock Retaining Washer per 30 days
Contact Now

M6 Starlock Retaining Washer 5.5mm Id 16mm Od Push On Lock Speed Clip

Description
Name: Starlock Retaining Washer ID: 5.5MM
OD: 16MM Material: DX51D+Z EN10346
Color: Black Thickness: 2.2MM
Highlight:

starlock retaining washer

,

m6 starlock retaining washer

,

5.5mm id starlock retaining washer

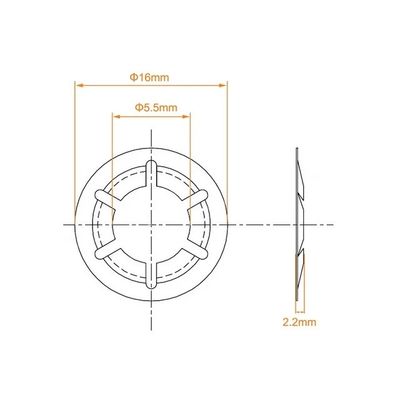

M6 Starlock Retaining Washer 5.5mm I.D. 16mm O.D. Push On Lock Speed Clip

Specification of m6 starlock retaining washer

Washer Type: Starlock Washer

Material: 65Mn Spring Steel

Finish: Black Oxide

Size: M6

Fit Shaft Outer Diameter: 6mm

Inner Diameter: 5.5mmm

Outer Diameter: 16mm

Thickness: 2.2mmm



Description of starlock retaining washer

  • Starlock Washer provides spring force between two attachments and grip shaft firmly in place.
  • These push-on washers create a permanent installation and will lock firmly.
  • 65Mn steel is a perfert material for spring washer due to its good strength. Black oxide finish gives better corrosion resistant performance in dry environments.
  • Widely used in machinery equipment, industrial production of shock absorption, bearings, machinery, etc.
  • The Starlock Washers have teeth that dig into the shaft material, so expect minor scratching.



Technical data of starlock retaining washer

size 2 3 4 5 6 8 10 12
d MIX 1.9 2.9 3.9 4.9 5.9 7.9 9.9 11.9
  MIN 1.8 2.75 3.75 4.75 5.75 7.75 9.75 11.75
dc 6 10 12 14 16 17.5 21 27
H 0.7 1.3 1.4 1.55 1.75 1.8 2.2 2.8
h Average 0.25 0.3 0.3 0.4 0.4 0.5 0.7 0.9
  MIX 0.275 0.325 0.325 0.43 0.43 0.53 0.74 0.95
  MIN 0.225 0.275 0.275 0.37 0.37 0.47 0.66 0.85



M6 Starlock Retaining Washer 5.5mm Id 16mm Od Push On Lock Speed Clip 0

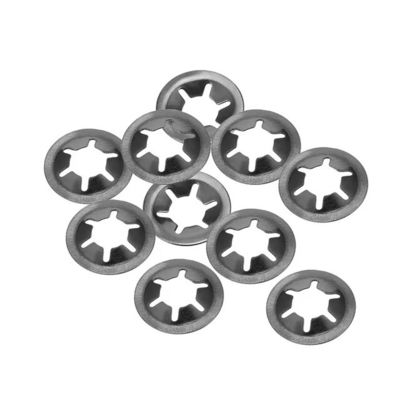

Image details of starlock retaining washer

M6 Starlock Retaining Washer 5.5mm Id 16mm Od Push On Lock Speed Clip 1

M6 Starlock Retaining Washer 5.5mm Id 16mm Od Push On Lock Speed Clip 2
