Product Details:
|
| Product Name: | 4-prong Impaling Clips | Material: | Stainless Steel 304,316 ,carton Steel |
|---|---|---|---|
| Height: | 15mm-20mm | Size: | 50mmx80mm |
| Thickness: | 1mm | Service: | Door To Door Service |
| Sample: | Support | Usage: | Mineral Wool Insulation Boards |
| Highlight: | Attach Acoustic Panels impaling clips,Walls impaling clips,Stainless Steel impaling clips |
||

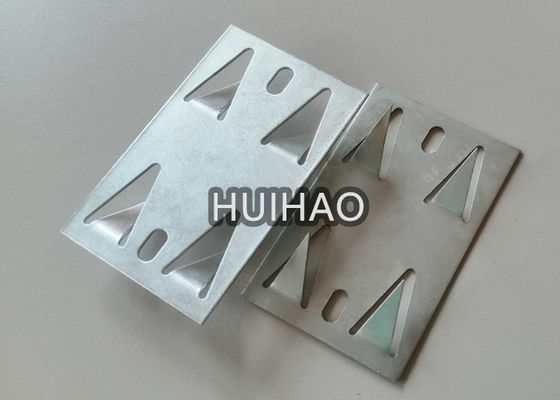

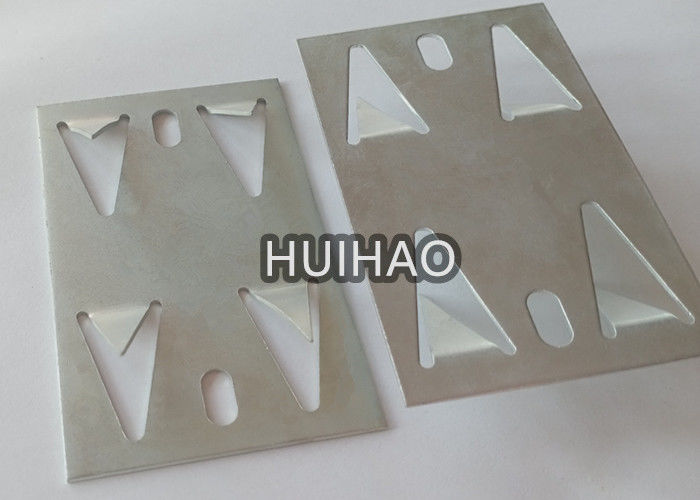

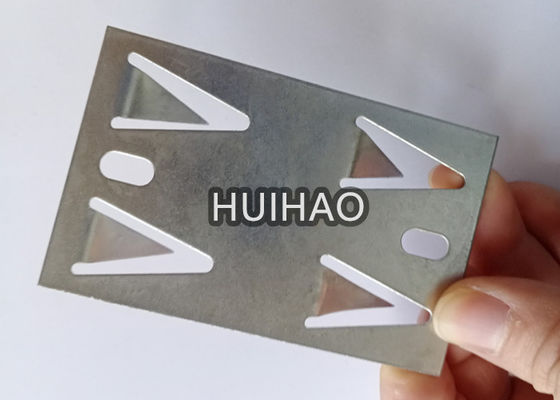

Imapling clips is designed to allow for quick and easy installations of acoutstic panels ,the material can be
carbon steel ,stainless steel 304,316,316L ,the polish surface for stainless steel ,galvanized for carbon steel .
the type is hardness enought, easy for installation
The common size we have instock is 80mmx50mm, 54mmx40m,50mmx38mm .other size could make mold
according buy's reuirement . the Impaling Clips are a couple inches long with extruding metal stems. The
clips get glued, screwed or nailed to a surface.Once in place, they allow for easy installation of acoustical
fiberglass products.4 to 6 clips are recomended per 24"x48" piece of acoustic insulation
| common specification of stainless steel 8-Prong impaling clips | ||||
| material | thickness | size | Height | Spikes qty |
| stainless steel | 1mm | 50mmx38mm | 15mm | 8 |
| Stainless steel | 1mm | 54mmx40mm | 20mm | 8 |
| Stainless steel | 1mm | 80mmx50mm | 4 | |
| Galvanized steel | 1mm | 50mmx38mm | 15mm | 8 |
| Galvanzied steel | 1mm | 54mmx40mm | 20mm | 8 |
| Galvanized steel | 1mm | 80mmx50mm | 4 | |
|
1.for sepecial size ,we can make mold for you 2.for galvanized steel ,the zin coated is 40g/m3, 60g/m2, 80g/m2 or to be request |
||||
Package of impaling clips
>> Package
1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.
2. to be your requirements.
>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.
rock wool impaling clips are used to easily attach Acoustic Panels (703 Board) to walls.
Each clip has 8 spikes that stick into the fiberglass panel backing and hold the panel in place.
For panel applications requiring an air gap, wood spacer blocks can be installed between the impaling
clips and the drywall to keep the panel spaced off of the wall.
The impaling clips are installed on the wall by either 1 drywall screw (not included) or attached with
adhesive (Multi-Seal 180). 4-6 impaling clips are recommended per standard 2' x 4' panel making sure
one impaling clip is placed in each corner.
HUIHAO company FAQ :
Q1: Are you factory or trader ?
Yes ,we sell what we manufacture
Q2:How long is your delivery time?
Usually the ship time is within 7-15 days
Q3:What is your quote elements?
The size of product, material with surface treatment and the quantity
Q4:Can you provide samples?is it free or in charge ?
A3: Yes, we can provide sample for we have in stock ,for special sample you need pay the mold fee ,the
mold fee will return back you after confirm the mass order
Q5: How can you ensure the quality?
1.we can supply CAD drawing pic for you
2.Our company have ISO certificate
3.We have working on this product for twenty years and we have experience on it ,and we know the point
you focus on
HUIHAO company is a insulation fasteners/insulation anchors manufacturing company,we produce all kinds
of insulation pins and washers.can make mold according your drawing pic ,Our products is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
