Product Details:
|
| Product Name: | 8 Spikes Impaling Clips | Length&width: | 50mmx38mm,54mmx40mm |
|---|---|---|---|
| Material: | Carbon Steel ,stainless Steel | Surface Treatment: | Galvanized For CS ,polish For SS |
| Thickness: | 1mm | Height: | 15mm-20mm |
| Service: | Door To Door Service | Application: | Wooden Connects |
| Highlight: | Wall 8 Spikes Impaling Clips,Galvanized Steel 8 Spikes Impaling Clips,fixing glass wool to wall impaling clips |
||

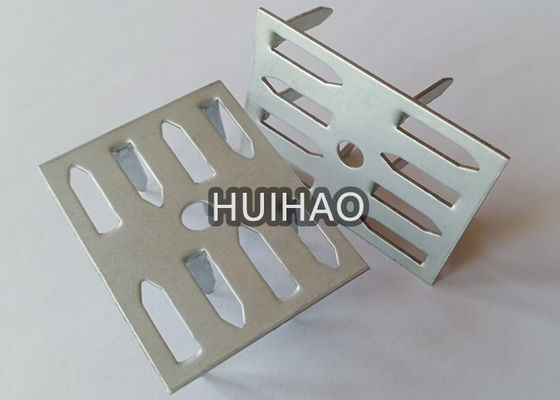

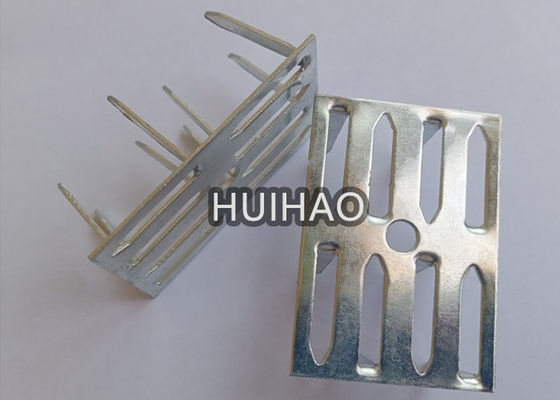

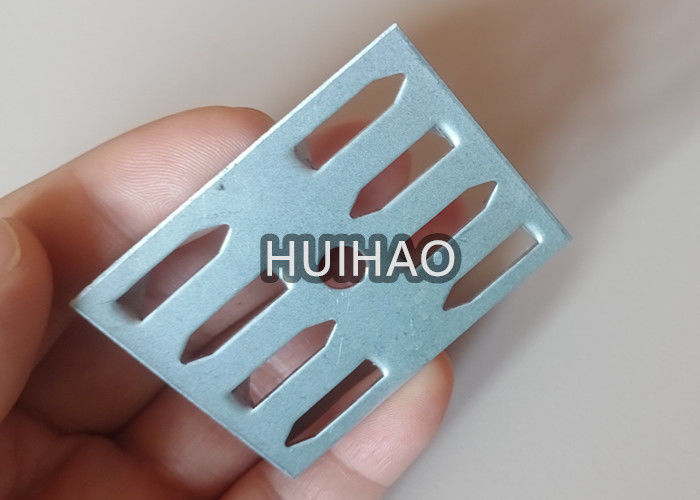

Product name :impaling clips with 8 spikes
Material :carbon steel ,stainless steel 304,316 316L
Surface treatment : polish for stainless steel ,galvanized for carbon steel ,zinc plate can be 40g/m2,
60g/m2 ,80g/m2
Each clip has 8 spikes that stick into the fiberglass panel backing and hold the panel in place.
Install : 4-6 impaling clips are recommended per standard 2' x 4' panel making sure one impaling clip
is placed in each corner.
| specification of 8 spikes impaling clips | ||||
| material | thickness | size | Height | Spikes qty |
| stainless steel | 1mm | 50mmx38mm | 15mm | 8 |
| galvanized steel | 1mm | 50mmx38mm | 15mm | 8 |
| Stainless steel | 1mm | 54mmx40mm | 20mm | 8 |
| Galvanzied steel | 1mm | 54mmx40mm | 20mm | 8 |
Package of impaling clips:
>> Package
1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.
2. to be your requirements.
>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.
|
|
An Impaling Clip is designed to allow for quick and easy installations of our products. The Impaling Clips
are a couple inches long with extruding metal stems. The clips get glued, screwed or nailed to a surface.
Once in place, they allow for easy installation of acoustical fiberglass products.
Impaling Clips Installation Hardware for Acoustic Panels (Single Clip)
Impaling ClipsImpaling Clips simplify the installation of rigid fiberglass acoustic panels. Use screws to fasten
the impaling clip to the surface, apply PolyFoam Adhesive on the clip and acoustic panel then press the
fiberglass panel to the clip.
The impaling clips are installed on the wall by either 1 drywall screw (not included) or attached with adhesive .
4-6 impaling clips are recommended per standard 2' x 4' panel making sure one impaling clip is placed in
each corner.
For panel applications requiring an air gap, wood spacer blocks can be installed between the impaling clips
and the drywall to keep the panel spaced off of the wall.
Q1: Are you factory or trader ?
Yes ,we sell what we manufacture
Q2:How long is your delivery time?
Usually the ship time is within 7-15 days
Q3:What is your quote elements?
The size of product, material with surface treatment and the quantity
Q4:Can you provide samples?is it free or in charge ?
A3: Yes, we can provide sample for we have in stock ,for special sample you need pay the mold fee ,the
mold fee will return back you after confirm the mass order
Q5: How can you ensure the quality?
1.we can supply CAD drawing pic for you
2.Our company have ISO certificate
3.We have working on this product for twenty years and we have experience on it ,and we know the point
you focus on
HUIHAO company is a insulation fasteners/insulation anchors manufacturing company,we
produce all kindsof insulation pins and washers.can make mold according your drawing pic ,
Our products is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
