Product Details:
|
| Product Name: | CD Weld Stud Pins | Material: | Mild Steel ,stainless Steel ,aluminum |
|---|---|---|---|
| Surface Treatment: | Copper Coated ,galvanized Steel, | Pin Diameter: | 1-5mm To Be Request |
| Pin Length: | 10mm-450mm | Attachment: | Self Locking Washer ,speed Clips ,dome Cap Washer |
| Sample: | Freely | Factory: | Yes |
| Highlight: | CD Weld Stud Pins,Copper Coated Stud Pins,3x65mm Stud Pins |
||

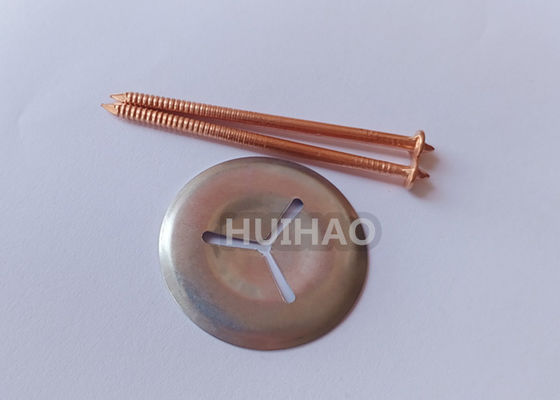

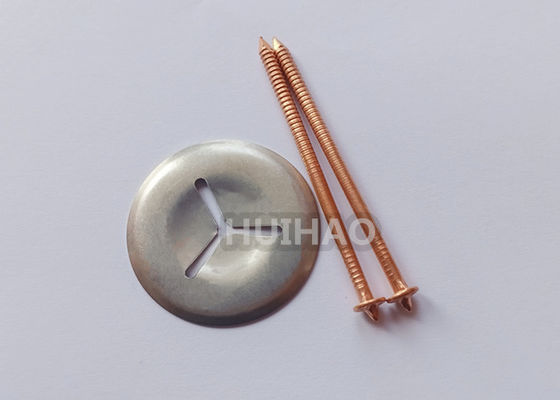

CD (Capacitor Discharge) weld stud pins is one kinds of welding nails used for thermal insulation of a
boiler in a power plant, which is used to fix the thermal insulation material. The nail is welded to the surface
of the boiler in the power plant through a capacitive discharge welder, the thermal insulation material is
installed on the welded nail, the thermal insulation material is fixed with self locking washers , and finally
bent to cut off the excess nail tip, or locked on the top with a general cap to achieve protective effect.
|

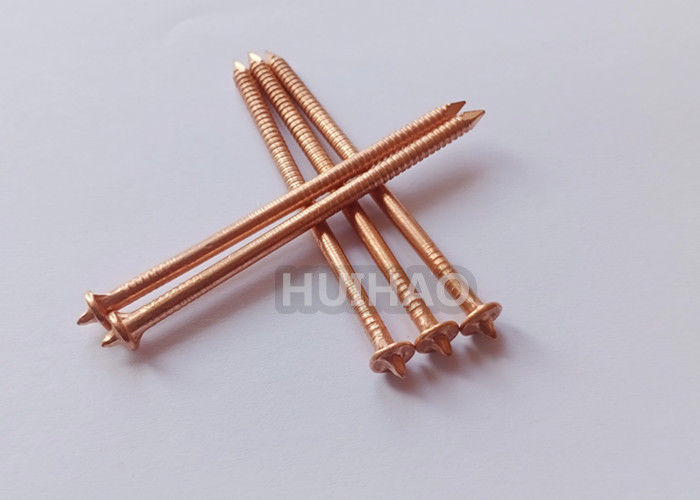

Product name : 3x65mm insulation fastener CD weld stud pins Material :mild steel with copper coated ,galvanized steel ,stainless steel ,aluminum to be request Base type :base like a little star ,Increased contact area makes the welded part stronger Pin diameter :3mm , we can make 1-5mm Pin length :65mm, we can make 10mm-500mm or more long Fxing part :self locking washer ,spped clips ,metal washer with metal dome cap ,metal dome cap |
 |
|
Product name : 3x65mm insulation fastener CD weld stud pins Material :mild steel with copper coated ,galvanized steel ,stainless steel ,aluminum to be request Base type :traditional base and sales well Pin diameter :3mm , we can make 1-5mm Pin length :65mm, we can make 10mm-500mm or more long Fxing part :self locking washer ,spped clips ,metal washer with metal dome cap ,metal dome cap |
|
10 Ga. (0.135") Capacitor Discharge ( CD ) Weld stud Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 10 Ga. (0.135") |
| Length | 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" 9" |
12 Ga. (0.105") Capacitor Discharge ( CD ) Weld stud Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 12 Ga. (0.105") |
| Length | 3/4" 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" |
14 Ga, 2mm (0.080") Capacitor Discharge ( CD ) Weld stud Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 14 Ga, 2mm (0.080") |
| Length | 3/4" 1" 1-1/2" 2" 2-1/2" 3" |
3mm Capacitor Discharge ( CD ) Weld stud Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 3mm |
| Length | 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 100mm 125mm 150mm |
4 mm Capacitor Discharge ( CD ) Weld stud Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 4mm |
| Length | 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 100mm 125mm 150mm ,240mm,270mm,370mm ect |

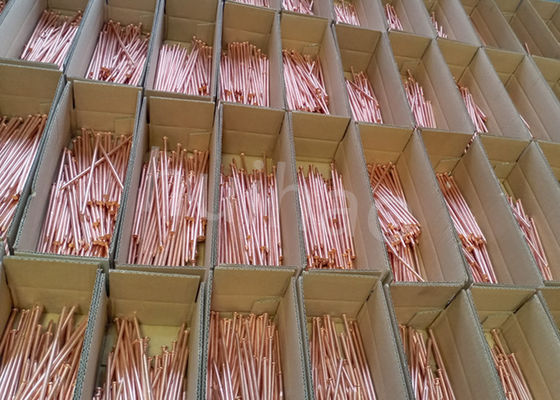

Package Of Insulation Weld Pins :
>> Package
1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.
2. to be your requirements.
>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
