Product Details:
|
| Product Name: | Bimetallic Pin | Base Material: | Aluminum Alloy |
|---|---|---|---|
| Base Size: | 6x15mm | Pin Material: | Stainless Steel ,galvanized Steel ,copper Coated |
| Pin Diameter: | 2.7mm，3.0mm | Pin Length: | 45mm-200mm |
| Accessories: | Self Locking Washer ,dome Cap Washer | Sample: | Support |
| Highlight: | aluminum base insulation cd weld pin,sharp end cd weld pin,sharp end capacitor discharge weld pins |
||

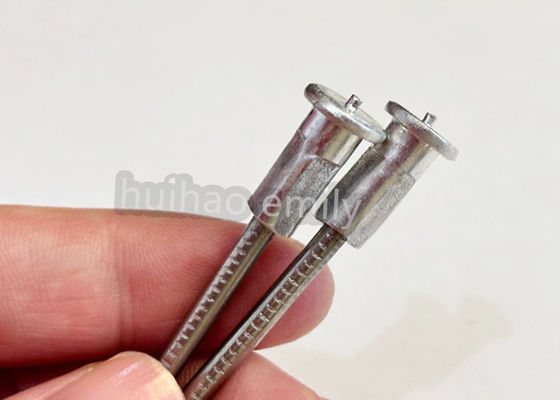

Quick details of insulation CD weld bimetallic pin
Product Name:insulation CD weld bimetallic pin
Base material :aluminum alloy
Base size :6x15mm
Pin material :copper coated ,galvanized steel ,stainless steel
Pin diameter :2.7mm,3.0mm
Pin length :45mm-200mm

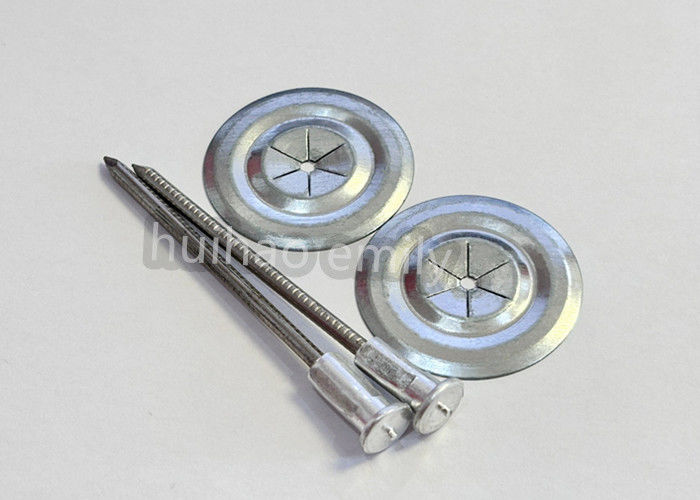

Accessories: Self-Locking washers (clips),plastic dome cap
Insulation CD weld bimetallic pins are primarily designed as welded fasteners to secure blanket
and board insulation to metal heating and air conditioning ducts, ovens, tanks and other hot or
cold equipment.
|
|

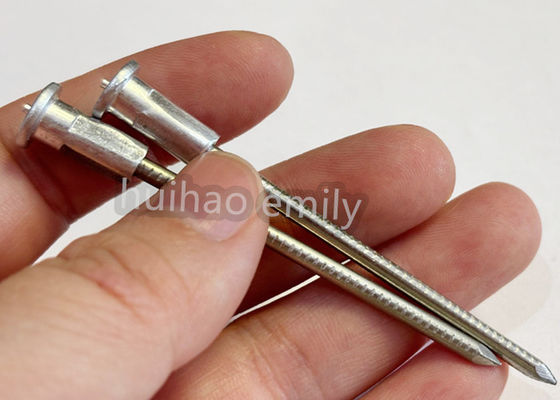

Bimetallic pin with sharp end Base Material : aluminum Pin Material: carbon steel surface treatment :galvanized steel Pin diameter(ø) :3.0mm in common Pins length(L) :65mm Head size:6mmdia*15mm Washer: round or square self locking washers, or dome cap washers |
 |
Base Material : aluminum head Pin Material: carbon steel surface treatment :galvanized steel Pin diameter(ø) :3.0mm in common Pins length(L) :65mm Head size:6mmdia*15mm Washer: round or square self locking washers, or dome cap washers |
|
Base Material : aluminum Pin Material: carbon steel surface treatment :galvanized steel Pin diameter(ø) :3.0mm in common Pins length(L) :65mm Head size:6mmdia*15mm Washer: round or square self locking washers, or dome cap washers |
|
Base Material : aluminum Pin Material: stainless steel surface treatment :polish Pin diameter(ø) :3.0mm in common Pins length(L) :65mm Head size:6mmdia*15mm Washer: round or square self locking washers, or dome cap washers |
>> Package
1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.
2. to be your requirements.
>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.
Q1: Are you factory or trader ?
Yes ,we sell what we manufacture
Q2:How long is your delivery time?
Usually the ship time is within 7-15 days
Q3:What is your quote elements?
The size of product, material with surface treatment and the quantity
Q4:Can you provide samples?is it free or in charge ?
A3: Yes, we can provide sample for we have in stock ,for special sample you need pay the mold fee ,the
mold fee will return back you after confirm the mass order
Q5: How can you ensure the quality?
1.we can supply CAD drawing pic for you
2.Our company have ISO certificate
3.We have working on this product for twenty years and we have experience on it ,and we know the point
you focus on
