Product Details:
|
| Product Name: | Insulation Weld Pins | Material: | Carbon Steel With Copper Plated |
|---|---|---|---|
| Other Material: | Carbon Steel With Zinc Plated ,Stainless Steel ,aluminum | Pin Length: | 25-500mm |
| Pin Diameter: | 3.0mm ,other To Be Request | Usage: | For Fixing Insulation Material |
| Package: | 500/1000pcs Per Bag Or To Be Request | Sample: | Availble |
| Highlight: | 3mm cd weld stud,copper plated cd weld stud,cd weld stud with flat end |
||
is for specifical order
10 Ga. (0.135")copper coated insulation weld pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 10 Ga. (0.135") |
| Length | 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" 9" |
12 Ga. (0.105") copper coated insulation weld pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 12 Ga. (0.105") |
| Length | 3/4" 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" |
14 Ga, 2mm (0.080") copper coated insulation weld pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 14 Ga, 2mm (0.080") |
| Length | 3/4" 1" 1-1/2" 2" 2-1/2" 3" |

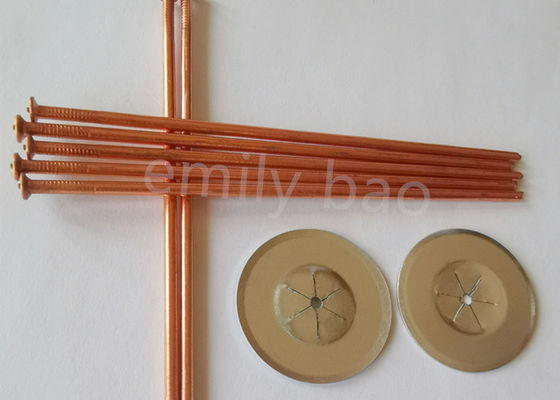

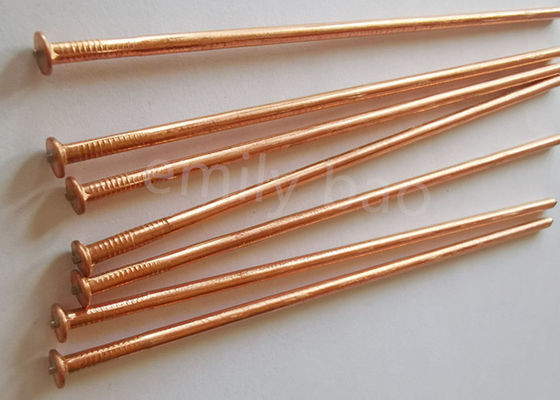

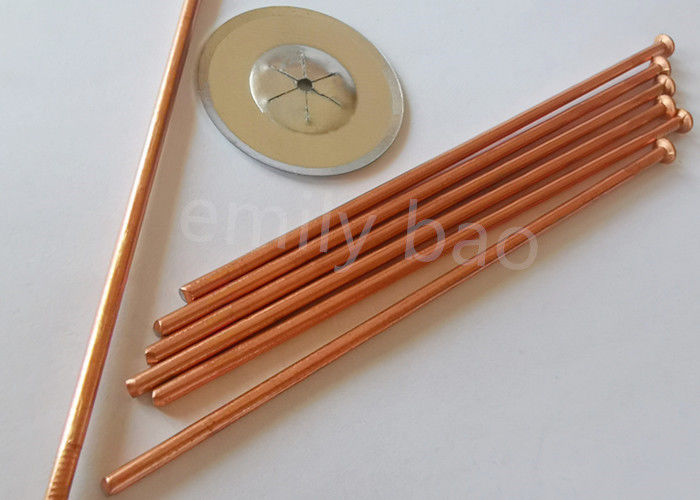

3mm copper coated insulation weld pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 3mm |
| Length | 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 100mm 125mm 150mm |
4 mm copper coated insulation weld pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 4mm |
| Length | 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 100mm 125mm 150mm ,240mm,270mm,370mm ect |
>> Package
1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.
2. to be your requirements.
>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.
Q1: Are you factory or trader ?
Yes ,we sell what we manufacture
Q2:How long is your delivery time?
Usually the ship time is within 7-15 days
Q3:What is your quote elements?
The size of product, material with surface treatment and the quantity
Q4:Can you provide samples?is it free or in charge ?
A3: Yes, we can provide sample for we have in stock ,for special sample you need pay the mold fee ,the
mold fee will return back you after confirm the mass order
Q5: How can you ensure the quality?
1.we can supply CAD drawing pic for you
2.Our company have ISO certificate
3.We have working on this product for twenty years and we have experience on it ,and we know the point
you focus on
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins solar panel mesh clip
all kinds of self locking washers, Dome caps.
