Product Details:
|
| Product Name: | CD Weld Pins | Pin Diameter: | 3.0 Mm In Common |
|---|---|---|---|
| Length: | 20-350 MM , Length Could Be Customized | Material: | Metal Material |
| Washer Type: | Round Washers , Square Washers Or Dome Caps | Application: | Marine Building Or Repairing System |
| Washer Size: | 30 Mm, 32 Mm, 38 Mm Or 50 Mm Or Customzied | Packing: | Carton And Pallets |
| Highlight: | 3 X 90 Mm cd weld pins,Pointed Head cd weld pins,Marine capacitor discharge weld pins |
||
CD Weld Pins is a type insulation pins that are applied with welding or equipment. Made of diffferent material from the application .
Such as Mild steel, Stainless steel , Aluminum material .Popularly used as an insulation fastener in combination with self locking washers, dome cap washers .
CD Weld Pins are used for attaching insulation to various metals, with the use of a CD welder.
After the pin is welded in place, the insulation is impaled on the pin and secured with a self-locking washer.
CD Weld Pins Specifications:
| Name | CD Weld Pins |
| Application | Fasten insulation material on steel surface |
| Material | Mild steel ,Stainless steel , aluminum |
| Diameter | 3.0mm in common, or customized diameter |
| Length | 100 mm or customized length |
| Used With | Square /Round self locking washers or dome cap waserhs |
| Washer Material | Galvanized steel.stainless steel |
| Washer Size | 28mm,30mm,32mm,38mm,50 mm,64mm, etc |
| MOQ | 5000 units |
| Samples | Available |
| Note | The material and pin size could be cusotmized . |
Other specifications:
Length of this style pin should exceed the thickness of the insulation, in order to securely attach the self-locking washer.
Nail point is standard - available with "blunt end" as special order.

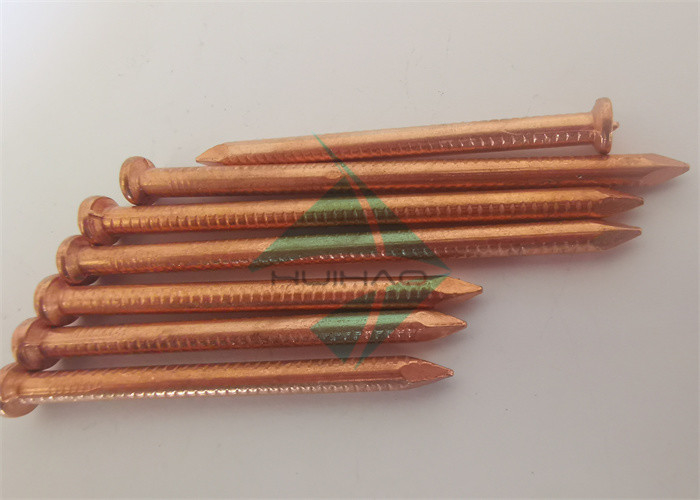

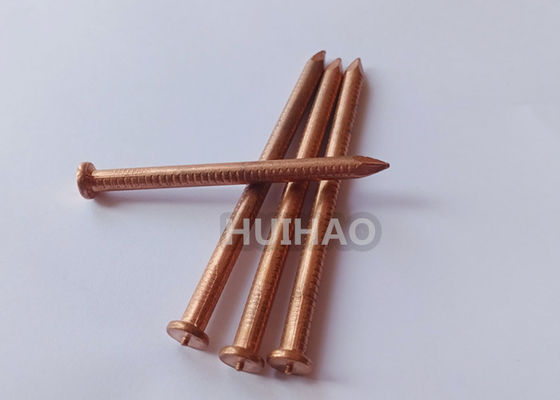

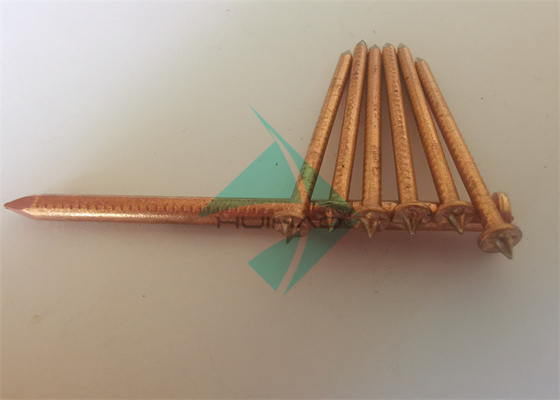

Photos of the CD Weld Pins
Application of the CD Weld Pins
Being in use of Car manufacturing , Train Stations , Industrial building , Household Adornment , high stress environment
such as off road construction , large expansion bridges , skyscrapers , power plant , military defense vehicles , and
equipment in high temperature environment .
How to install the CD Weld Pins
1: weld pins in place
2: install insulation on pins
3: press washers on pins
4: bend over the pin or clip off the pins
Advantages of the CD Weld Pins
1.Standard pin point , easy for welding
2.Pins are soft , easy for bending over
3. self locking washers are safety for installing
FAQ Of The Capacitor Discharge Stud Welding Pins
1) Length of this style pin should exceed the thickness of the insulation, in order to securely
attach the self-locking washer.
2) Nail point is standard - available with "blunt end" as special order.
3) Capacitor Discharge weld pins simplify the permanent attachment of insulation to just about
any kind of construction metal surface.
4) They can be applied quickly and easily using standard CD or Arc stud welding equipment.
5) Weld pins are available in different styles to cover a wide variety of applications.
6) Some factors to consider regarding the pin style needed for your job would be the base
metal type size and surface condition, and also the welding equipment to be used.
Stud Welding Systems
The standard, portable CD system consists of:
1) The Controller or (Power Unit) which is plugged into the one-hundred-and-ten-volt outlet.
2) The CD Gun with cables is used to command the power unit and deliver weld current,
with the Gun also serving as the Pin holder to properly place the pin during welding.
3) Then, on the other side of “the circuit” a ground cable and clamping connection is attached
to the work-surface to complete our Capacitor Discharge connections.
4) And finally, special accessories are used to hold the Pin in the Gun.
