Product Details:
|
| Name: | Capped Weld Pins | Capped Washer: | 30mm In Common |
|---|---|---|---|
| Material: | Galvanized Steel Is Standard | Pin Diameter: | 2.7mm In Common Or Customized |
| Pin Finished: | Copper Coating Or Galvanized Steel | Length: | 10mm -300mm According To Requirements |
| Head Treatment: | Galvanized Or Stick With Insulated Paper | Packing: | Carton Or Plastic Casks |
| Highlight: | 2.7 X 70 Mm insulation weld pins,Capped insulation weld pins,Bevel Edge Washer insulation weld pins |
||

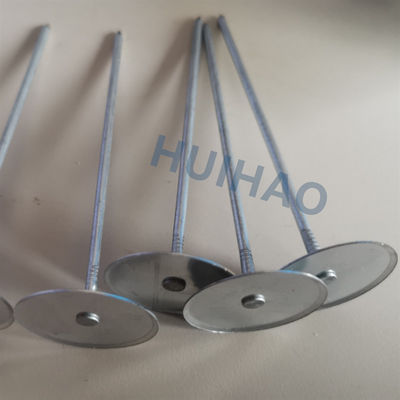

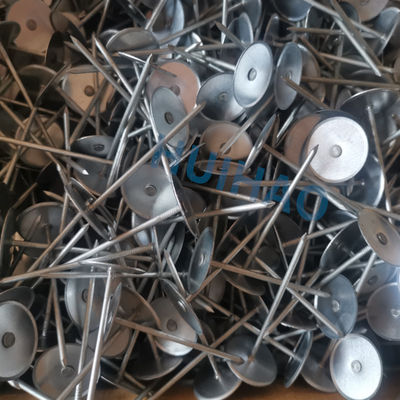

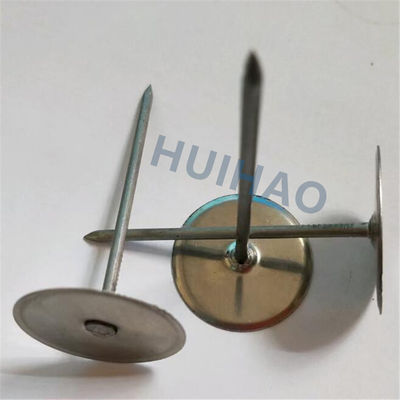

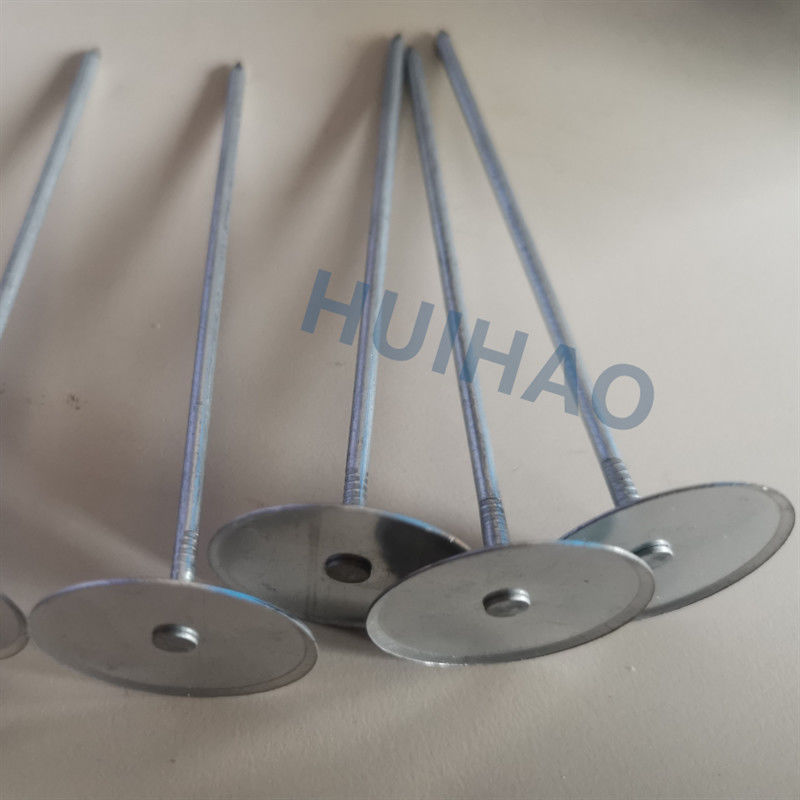

>>> Introduction of the Capped Weld Pins
Capped Weld Pins also named Cup Head weld pins is welded through the insulation, allowing the fabrication
to be done in one easy step. The head of the pin is attached to the nail, so there is no need to add
a washer.Reduced labor time - Neat, finished appearance
Capped Capacitor Discharge (CD) Weld Pins are used to fasten insulation to the inside
of sheet metal air ducts. These fasteners are usually applied when the ductwork is being
fabricated.
The fasteners have been specifically designed to work with all currently available duct liners
and Capacitor Discharge (CD) type welding application equipment. Capped CD Weld Pins are
available for 12mm,25mm,38mm,50mm,75mm and 100mm insulation or other customized thickness.
Name: Capped weld pins,Cup head weld pins , cupped head pins
Material:Galvanized steel,Stainless steel available on special order.
Pin diameter: 14Ga,12Ga,10Ga, etc
Pin length:10 mm-300 mm as request .
Head/washer diameeter:30mm in common .
>>>Specification Of the Capped Weld Pins
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Carton or Plastic casks then packed with pallets.
>>>Application Of The Capped Capacitor Discharge (CD) Weld Pins:
|
|
1. This product is usually applied with a capacitor discharge stud welder. 2. The method of application is to place the insulation onto a metal surface, push the CD weld pins through the insulation, and weld affix (mount) the entire fabrication in one step. 5. Cup head CD weld pins are widely accepted as labor saving fasteners in the thermal and acoustical insulation markets primarily for commercial type insulation applications. |
|
Recommended for |
Pin length before welding |
|||
|
1/2" insulation(all densities) |
12.67mm |
|||
|
1" insulation(1-1/2"ib density) |
17.63mm |
|||
|
1" foam |
25.55mm |
|||
|
1" insulation(3ib densities) |
23.72mm |
|||
|
1-1/2" insulation(all densities) |
28.42mm |
|||
|
2" insulation(1-1/2"-2" ib density) |
37.95mm |
|||
|
2" insulation(3ib densities) |
48.77mm |
|||
|
3" insulation(all densities) |
69.85mm |
|||
|
4" insulation(all densities) |
95.00mm |
|||
