Product Details:
|
| Product Name: | Cup Head CD Weld Pins | Material: | Galvanized Steel |
|---|---|---|---|
| Brand: | HUIHAO CUSTOM | Head Dia: | 30mm |
| Usage: | Duct Wrap Or Duct Liner Insulation Fastening Works | Pin Diameter: | 2.7mm, 3.0mm, 3.4mm |
| Samples: | Supported | Pin Length: | 25mm, 38mm, 50mm, 75mm, 100mm Etc. |
| Highlight: | CD Weld Pins With Insulated Washer,Cup Head CD Weld Pins |
||

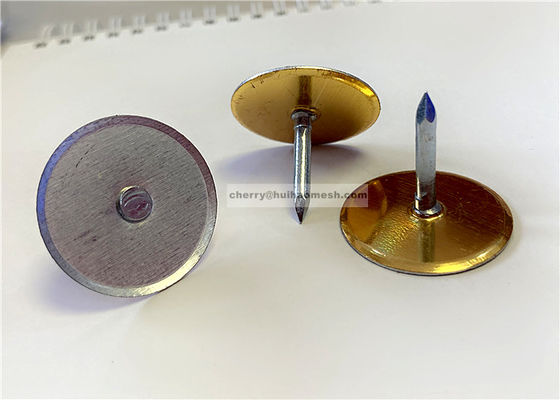

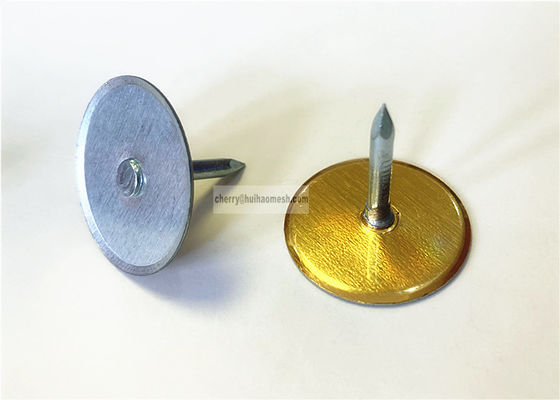

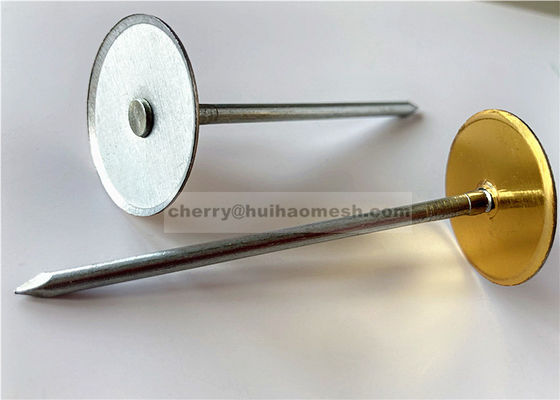

Cup Head CD Weld Pins are widely used for fastening duct wrap or duct liner insulation.
Cup Head CD Weld Pins have a cupped washer and utilize a specially pointed nail to assure uniform welding.
Beveled edge washer prevents tearing of duct wrap or duct liner insulation.
|
Item: Cup Head CD Weld Pins With Insulated Washer Head Material: Galvanized steel Head Base: 0.5mm
|
|
 |
|
Item |
Duct Liner Insulation Work Used Fasteners - Cup Head CD Weld Pins |
|
Material |
Galvanized Steel |
|
Base Size |
25mm or 30mm |
|
Base Thickness |
0.4-0.5mm |
|
Base Type |
Common Type, With Insulated Paper, Or With Insulated Film |
|
Nail Diameter |
2.7mm, 3.0mm, 3.4mm etc. |
|
Nail Length |
25mm, 28mm, 38mm, 50mm, 63mm, 75mm, 100mm, 120mm etc. |
|
|
|
1. Beveled Edge Cap 2. Faster Welds 3. Better Plating 4. Reduced Down Time 5. Stronger Welds 6. Applied with Standard Equipment |
|
|
Item: Cup Head CD Weld Pins Application: used for fastening insulation material on metal surface Step: 1. Hanging the insulation |
| Recommended for | Pin length before welding | |||
| 1/2" insulation(all densities) | 12.67mm | |||
| 1" insulation(1-1/2"ib density) | 17.63mm | |||
| 1" foam | 25.55mm | |||
| 1" insulation(3ib densities) | 23.72mm | |||
| 1-1/2" insulation(all densities) | 28.42mm | |||
| 2" insulation(1-1/2"-2" ib density) | 37.95mm | |||
| 2" insulation(3ib densities) | 48.77mm | |||
| 3" insulation(all densities) | 69.85mm | |||
| 4" insulation(all densities) | 95.00mm | |||
|
1. 1000 pcs / 1500 pcs / 2000 pcs / 3000 pcs/ 5000 pcs per carton 2. 48 cartons per pallet
3. or according to your requirement.
|
|
|
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material and the size all could be customized.
3. Can i get samples?
Yes, we have free samples for you to check the quality.
4. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
5. What's your advantages?
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
