Product Details:
|
| Lacking Anchor: | 2mmx63mm | Lacking Hook: | 22mm |
|---|---|---|---|
| Lacking Washer: | 25mm | Quilting Pin: | 2mmx114mm |
| D Ring: | 30mm | Self Locking Washer: | 25mm |
| Material: | Stainless Steel Or Galvanized Steel | Customized: | Support |
| Highlight: | Stainless Steel Insulation Jackets,Insulation Jackets Accessories,Stainless Steel Insulation Jackets Accessories |
||

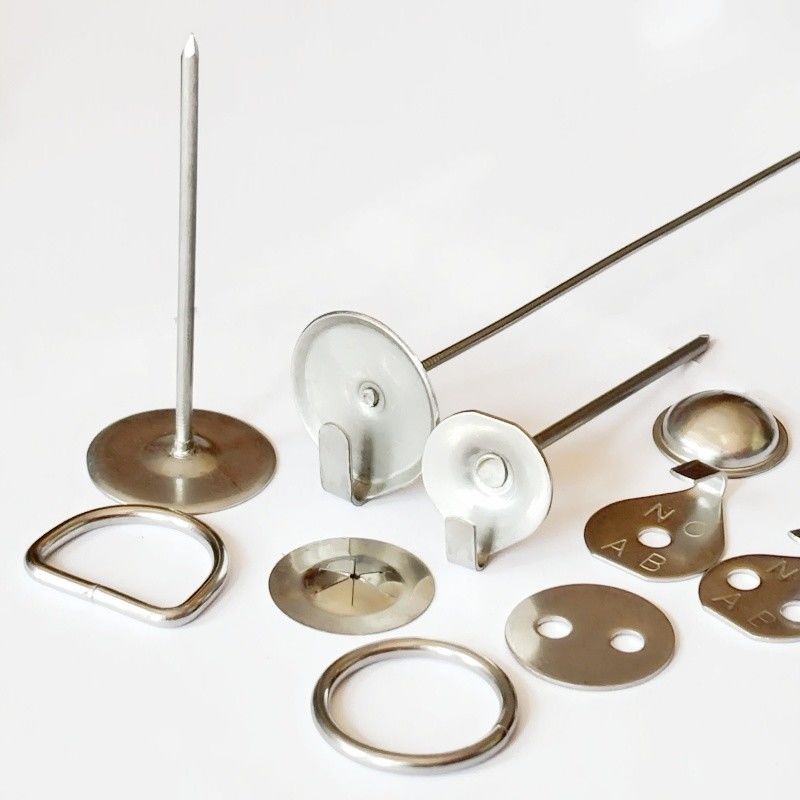

Insulation Jackets Accessories is include lacing anchor, lacing hook, lacing washer, lacing rings , Quilting Pins and self locking washer. it is usually made of stainless steel 304 /316 materials.
Application : Insulation Jackets Accessories are Widely used in the manufacture of removable and reusable jackets , blankets etc.
|
name |
lacing anchor |
|
|
Common specification |
Dia :12GA or 14 GA |
|
|
Material |
pin |
Stainless steel , mild steel |
|
base |
Stainless steel , mild steel |
|
|
Surface treatment |
Stainless steel: Polishing |
|
|
Product features |
Firm conjunction between bases and pins |
|
|
Anchors are soft, easy bending over |
||
|
Anchors points are easy going through any insulation blankets |
||
|
Name |
Quilting Pins |
|
|
Common specification |
Length: 2-1/2", 4-1/2" |
|
|
Material |
Pin |
Stainless steel |
|
|
Washer Head |
Stainless steel |
|
Product features |
Firm conjunction - bases and pins |
|
|
|
Pins are soft, bend over easy |
|
|
|
Sharp points, easy going through any insulation blankets |
|
|
|
Length tolerance ±0.1mm |
|
|
Name |

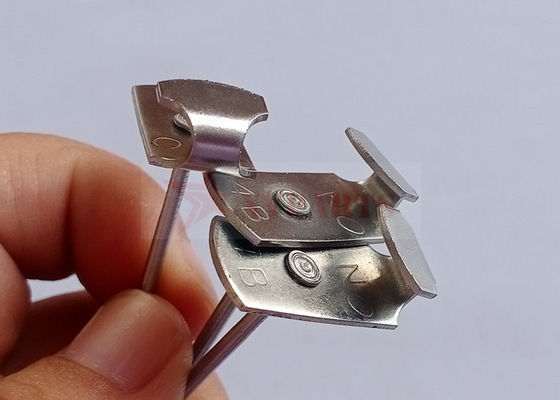

lacing hook |
|
material |
1mm stainless steel 304/316 |
|
size |
Diameter: 7/8" |
|
standard type |
with two 3/16" diameter holes, 1/2" apart |
|
surface treatment |
polished,Stamped NO AB to indicate non-asbestos material. |
|
Application |
Lacing hooks are essential for fastening removable insulation blankets or pads securely. They provide a reliable solution for tying and securing insulation materials, ensuring a snug fit. |
|
Name |
round self locking washer |
|
material |
stainless steel / galvanized steel |
|
surface treatment |
polished for SS zinc coated for steel |
|
size |
diameter: 25mm / 30mm |
|
Product feature |
Firm locking |
|
Production |
Automated production |
|
Application |
Mounted on various insulation pins for holding insulation materials |
|
Remark |
Technical parameters are available upon request |
|
name |

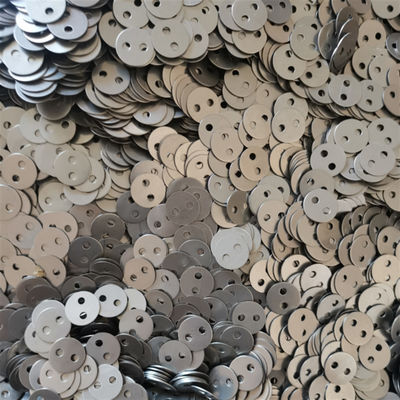

lacing washer |
|
material |
1mm thickness of stainless steel 304 /316 sheet |
|
size |
diameter 25mm |
|
type |
with two 3/16" diameter holes, 1/2" apart |
|
Application |
Oil & Gas , Marine ,power plant , boiler industry etc |
|
Product features |
High efficiency ,easy to install |
|
Firm locking |
|
|
Production workmanship |
Automated production |
|
name |
lacing ring |
|
|
Common specifications |
wire dia: 3mm ring size: 30mm |
|
|
material |
ss304 |
ss316 |
|
open treatment |
no-welded |
welded |
|
surface |
Passivation |
polishing |
|
Fixing various insulation blankets or boards |
Fixing various insulation blankets or boards |
|
|
|
Length tolerance ±0.1mm |
|
|
customized |
square ring |
round ring |

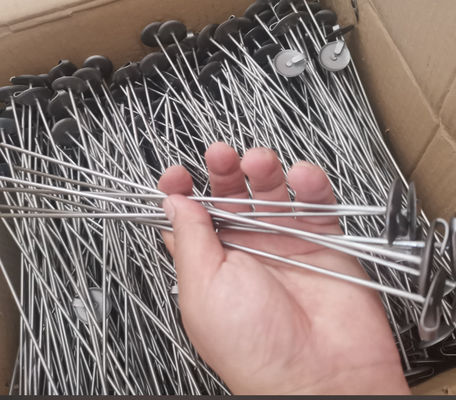

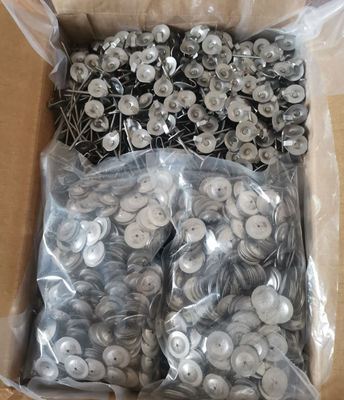

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
package details of Insulation Jackets Accessories
|
term |
carton size |
qty/crt |
|
lacing anchor |
40cm x28cm x 18cm |
1000 |
|
lacing washer |
40cm x28cm x18cm |
4000 |
|
Quilting Pins |
40cm x28cm x 18cm |
1000 |
|
lacing hook |
40cm x28cm x 18cm |
4000 |
|
lacing ring |
40cm x28cm x 18cm |
3000 |
