Product Details:
|
| Product Name: | 2 Holes Lacing Anchor | Material: | Stainless Steel 304/316 |
|---|---|---|---|
| Thickness: | 1mm | Size: | 22mm |
| Hook Size: | 5x11mm | Surface Treatment: | Polish |
| Factory: | Yes | Usage: | Fix Removable Blankets Pads |
| Highlight: | Lacing Anchor Hooks Washers,Thermal Insulation Jackets Anchor Hooks Washers,Ss304 Anchor Hooks Washers |
||

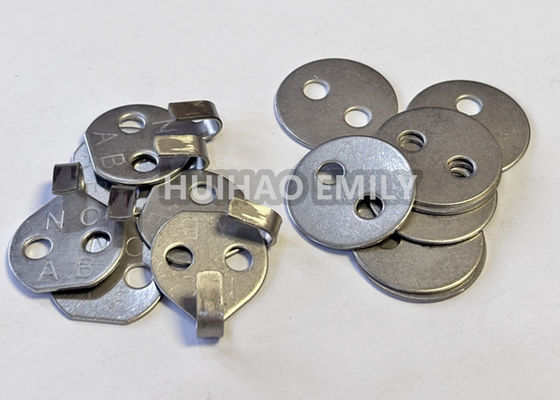

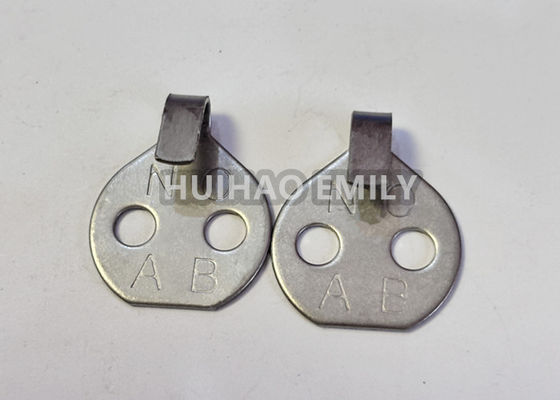

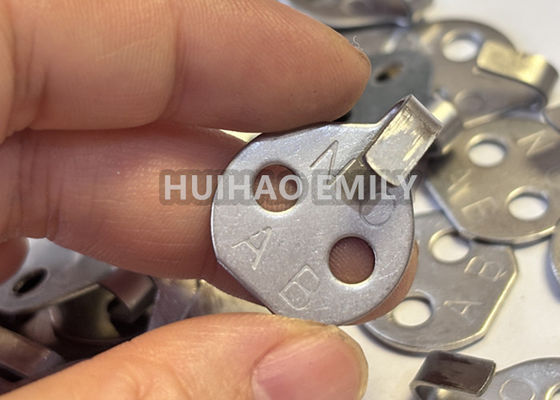

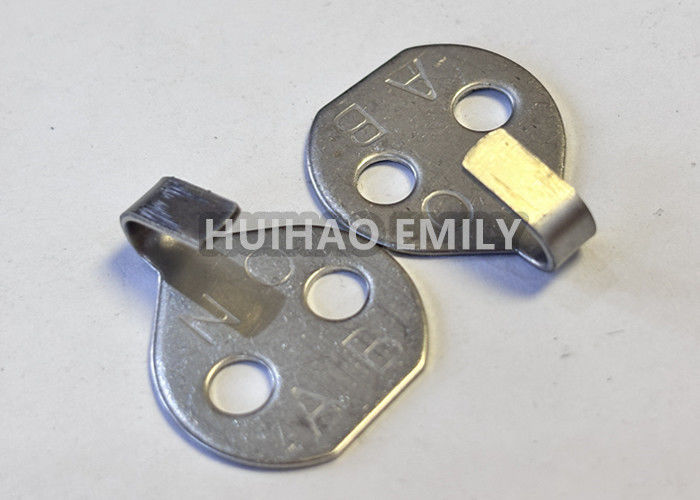

The Lacing hooks are used for securing and tying removable insulation blankets, work with Lacing
washers to fasten the insulation. Install the lacing hook with wire, secure with lacing washer, use
lacing wire to fasten the insulation through the lacing hooks.
The Lacing Washer is used at the end of the insulation pin together with lacing wire to fabricate
insulation removable covers or pads.
Materials: Stainless Steel or Carbon steel
Plating: No Plating
Size: 1″ or 1 3/16″Diameter with two 5/32″ Diameter holes, 1/2″apart
NO-AB: Available stamped NO AB to indicate non-asbestos material.
Other Available:Two hole lacing top, lacing ring, lacing washers are available.
| specification of ss304 lacing anchor hooks washers: | |||
| material | materil thickness | size | hole size |
| stainless steel 304/316 | 1mm | 22mm | 5mm |
| type | hook length | hook width | custom |
|
one hole type, |
|
|
we can be according to your requirements to design the types |
|
Lacing anchors |
|
quilting pins |
|
|
2 holes Lacing hook |
|
Single holes Lacing hook |
|
|
Lacing washer |
|
D rings |
|
|
O rings |
1: prepare the insulation blanket or removable cover
2: put the lacing hook washer on blanket, pree the lacing wire through the insulation blanket.
3: install lacing washer and lacing ring with lacing wire
4: ensure firm for hook, washer and rings.
5: install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
other parts for lacing hook system- lacing anchors, lacing washer, lacing ring and tie wire
|
|
The package of lacing hook washers : >> Package 1. 500 pcs/800pcs/1000 pcs per carton. 64 cartons per pallet. 2. to be your requirements. |
Q1: Are you factory or trader ?
Yes ,we sell what we manufacture
Q2:How long is your delivery time?
Usually the ship time is within 7-15 days
Q3:What is your quote elements?
The size of product, material with surface treatment and the quantity
Q4:Can you provide samples?is it free or in charge ?
A3: Yes, we can provide sample for we have in stock ,for special sample you need pay the mold fee ,the
mold fee will return back you after confirm the mass order
Q5: How can you ensure the quality?
1.we can supply CAD drawing pic for you
2.Our company have ISO certificate
2.We have working on this product for twenty years and we have experience on it ,and we know the point
you focus on
