Product Details:
|
| Product Name: | Lacing Hook Washer | Material: | Stainless Steel 304/316 |
|---|---|---|---|
| Type: | Without Hook | Dia: | 25mm |
| Thickness: | 1mm | Surface Treatment: | Polish |
| Service: | Door To Door Service | Application: | For Fixing Insulation Jacket Pads |
| Highlight: | 316 Stainless Steel Insulation Jacket Accessories,Lacing Anchors Insulation Jacket Accessories,hooks washer Insulation Jacket Accessories |
||
Product name:removable blankets lacing anchors hooks&washers
Materials: Stainless Steel 304/316/316L
Head size :7/8" for the round base
Hook size :5x11mm
Pin diameter:14ga (2.0mm) ,12ga (2.7mm)
Pin length:1-1/2" ,2-1/2" is in common , other size to be request
Lacing Washer can also be used with a Lacing Ring and a second L100 lacing washer, which are
fastened to the insulation blanket with a tie wire. One advantage with the lacing system is the positive
detention of the lacing wire. The insulation blanket can be loosened for access or repositioning,
without having to worry about the lacing wire falling away from the hooks. It is also advantageous in
maintaining the position of the lacing wire when insulating complex shapes. All L100 Lacing Washers
are stamped "NO AB" to indicate no asbestos, at no additional cost.
| specification of removable blankets Lacing Anchors Hooks & Washers : | |||
| material | materil thickness | size | hole size |
| stainless steel 304/316 | 1mm | 22mm | 5mm |
| type | hook length | hook width | custom |
|
one hole type, two holes type hook type washer type |
11mm |
5mm |
we can be according to your requirements to design the types |
|
Lacing anchors Material :stainless steel Pin diameter :2mm,2.7mm Pin length :2-1/2 inch, 4-1/2inch or to be request
|
|
quilting pins Material :stainless steel Pin diameter :2mm,2.7mm Pin length :2-1/2 inch, 4-1/2inch or to be request |
|
|

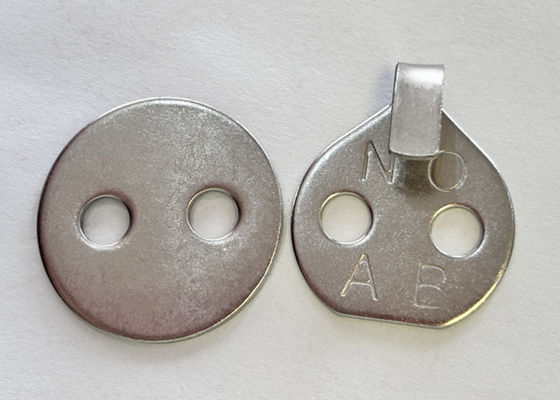

2 holes Lacing hook Material :stainless steel Thickness :1mm Diameter :22mm surface with NO&AB
|
|
Single holes Lacing hook Material :stainless steel Thickness :1mm Diameter :22mm surface with NO&AB |
|
|

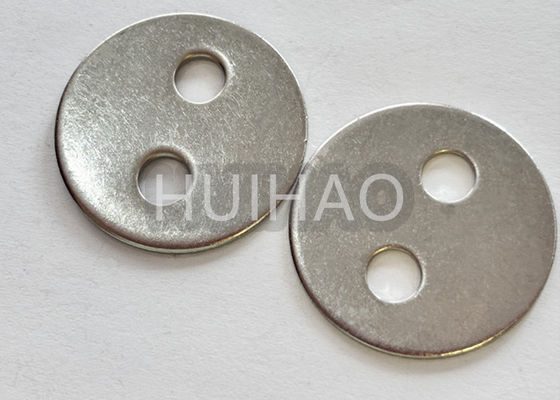

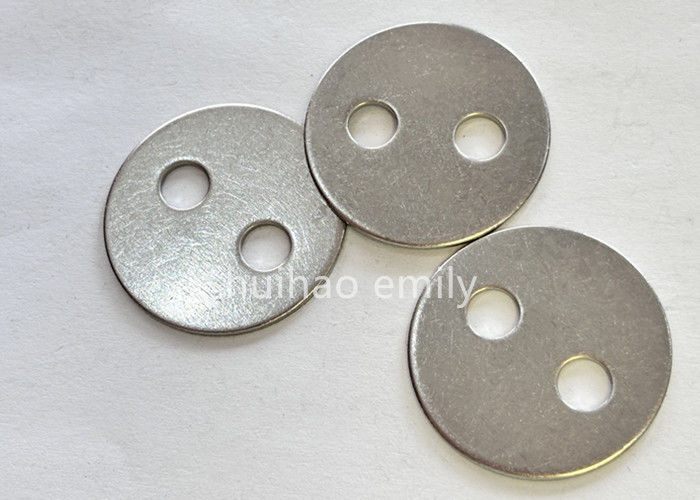

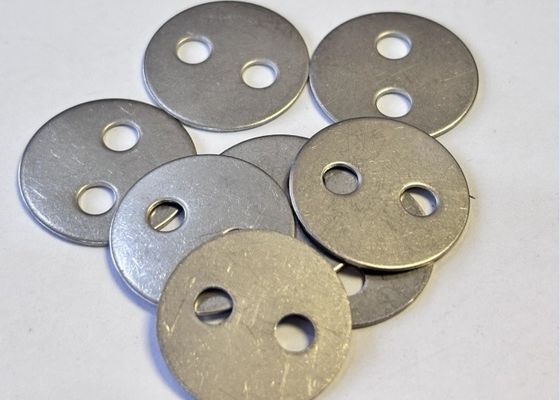

Lacing washer Material :stainless steel Thickness :1mm Diameter :22mm with 2 hole in the center |
|
D rings Material :stainless steel Ring dia :3mm,4mm,5mm type :weld type and non weld type |
|
|
O rings Material :stainless steel Ring dia :3mm,4mm,5mm type :weld type and non weld type |
1: prepare the insulation blanket or removable cover
2: put the lacing hook washer on blanket, pree the lacing wire through the insulation blanket.
3: install lacing washer and lacing ring with lacing wire
4: ensure firm for hook, washer and rings.
5: install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
other parts for lacing hook system- lacing anchors, lacing washer, lacing ring and tie wire
1.HUIHAO company can supply carton and plastic bag ,500pcs,1000pcs or
to be request
2. express by Fedex ,DHL ,UP is available
We can supply door to door service
|
|
Q1: Are you factory or trader ?
Yes ,we sell what we manufacture
Q2:How long is your delivery time?
Usually the ship time is within 7-15 days
Q3:What is your quote elements?
The size of product, material with surface treatment and the quantity
Q4:Can you provide samples?is it free or in charge ?
A3: Yes, we can provide sample for we have in stock ,for special sample you need pay the mold fee ,the mold fee will return back you after confirm the mass order
Q5: How can you ensure the quality?
1.we can supply CAD drawing pic for you
2.Our company have ISO certificate
2.We have working on this product for twenty years and we have experience on it ,and we know the point you focus on
