14GA Insulation Jackets Stainless Steel Quilting Pins With Self Locking Washer

14GA Insulation Jackets Stainless Steel Quilting Pins With Self Locking Washer
14GA Insulation Jackets Stainless Steel Quilting Pins With Self Locking Washer 14GA Insulation Jackets Stainless Steel Quilting Pins With Self Locking Washer 14GA Insulation Jackets Stainless Steel Quilting Pins With Self Locking Washer 14GA Insulation Jackets Stainless Steel Quilting Pins With Self Locking Washer

Large Image :  14GA Insulation Jackets Stainless Steel Quilting Pins With Self Locking Washer

Product Details:
Place of Origin: CHINA
Brand Name: HUIHAO
Certification: ISO9001
Model Number: Quilting pins
Payment & Shipping Terms:
Minimum Order Quantity: 3000pcs
Packaging Details: 500pcs/1000 per bag in carton ,then on pallet
Delivery Time: 15 days after confirm the order
Payment Terms: L/C, T/T
Supply Ability: 100000 pcs per 10 days

14GA Insulation Jackets Stainless Steel Quilting Pins With Self Locking Washer

Description
Product Name: Stainless Steel Quilting Pins Material: Stainless Steel 304/316/316L
Base Size: 1-13/16" (30mm) Pin Size: 2.0mm,2.7mm
Pin Length: 25mm-300mm Washer: 25mm,30mm
Sample: Support OEM/ODM: Support
Highlight:

14GA Stainless Steel Quilting Pins

,

Insulation Jackets Stainless Steel Quilting Pins

,

Quilting Pins With Self Locking Washer

14GA Insulation Jackets Stainless Steel Quilting Pins With Self Locking Washer



Insulation Jackets Stainless Steel Quilting Pins Product Introduce:



Product name:stainless steel quilting pins

Material :stainless steel 304/316/316L ,carbon steel to be request

Surface treatment:polish for stainless steel ,zinc plated for carbon steel

Pin diameter :2.0mm,2.7mm in common,other to be request

Pin length :25mm to 500mm ,standard length is 1"(25mm) ,1-1/2"(38mm) 2"(50mm) ,2-1/2"(65mm)

and 4-1/2"(114mm)

Accessories : 25mm ,30mm self-locking washers

quilting pins and washer are used in removable insulation jakets/blankets/covers to provide quilting

(support)when install the insulation blankets or covers to fabticate a thermal insulation system,when

quilting pins and washers are installed on the removable reusable insulation blankets or covers, the

inside insulation will not settle down or slide around inside



Insulation Jackets Stainless Steel Quilting Pins Specification:



Material Base type Base size Pin diameter pin length
Stainless steel 304 Round  30mm 2mm,2.7mm 20mm-300mm
Stainless steel 316 Round 30mm 2mm,2.7mm 20mm-30mm
Stainless steel 316L
Galvanized steel  Round  30mm 2mm,2.7mm 20mm-300mm
Washer

25mm,30mm round self locking washer

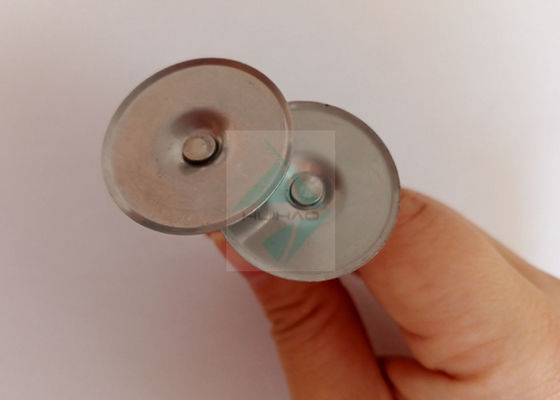

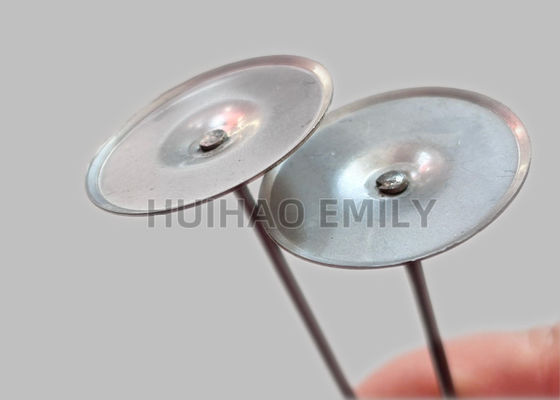

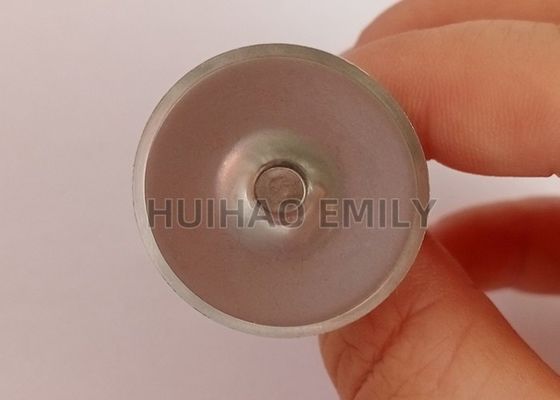

Insulation Jackets Stainless Steel Quilting Pins Pic:



14GA Insulation Jackets Stainless Steel Quilting Pins With Self Locking Washer 014GA Insulation Jackets Stainless Steel Quilting Pins With Self Locking Washer 1

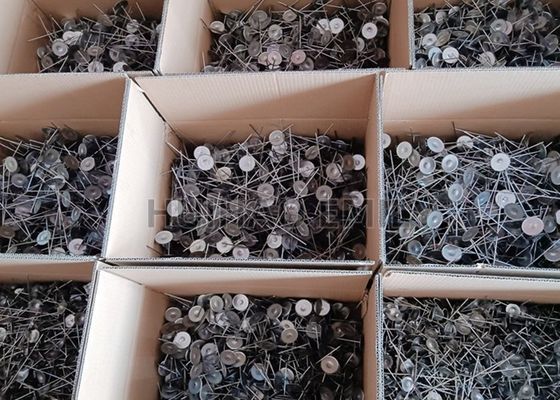

Package Of Insulation Jackets Stainless Steel Quilting Pins :



14GA Insulation Jackets Stainless Steel Quilting Pins With Self Locking Washer 2

Insulation Jackets Stainless Steel Quilting Pins

>> Package

1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.

2. to be your requirements.
>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.



HUIHAO company FAQ :



Q1: Are you factory or trader ?

Yes ,we sell what we manufacture

Q2:How long is your delivery time?

Usually the ship time is within 7-15 days

Q3:What is your quote elements?

The size of product, material with surface treatment and the quantity

Q4:Can you provide samples?is it free or in charge ?

A3: Yes, we can provide sample for we have in stock ,for special sample you need pay the mold fee ,the

mold fee will return back you after confirm the mass order

Q5: How can you ensure the quality?

1.we can supply CAD drawing pic for you

2.Our company have ISO certificate

3.We have working on this product for twenty years and we have experience on it ,and we know the point

you focus on



Insulation fasteners including a lot of terms as follows:


perforated base insulation pins
galvanized steel rock wool insulation pins
self adhesive insulation pins
CD weld pins

Bi-metallic pins

metal lacing anchors (quilting pins ,lacing hook ,lacing washer ,lacing rings )

metal quilking pins
